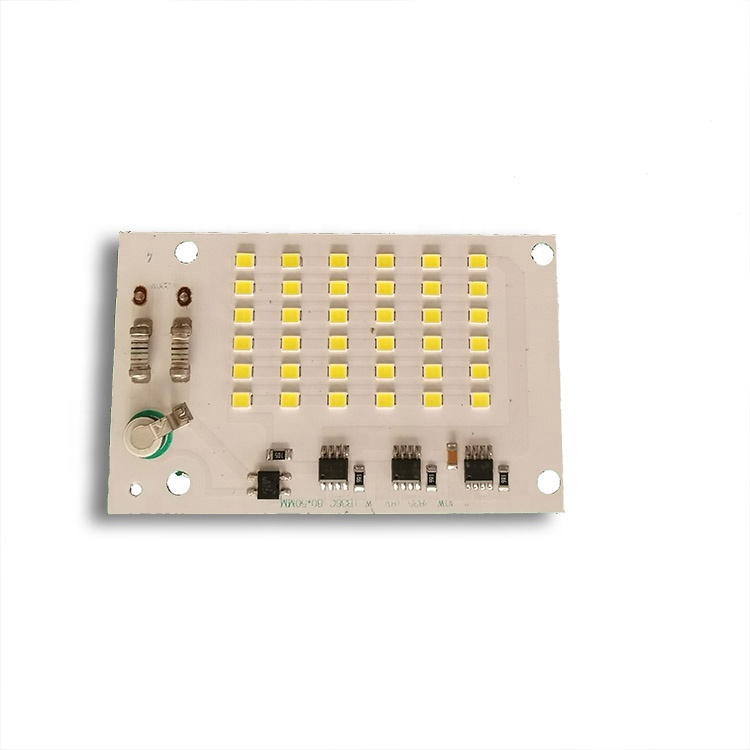

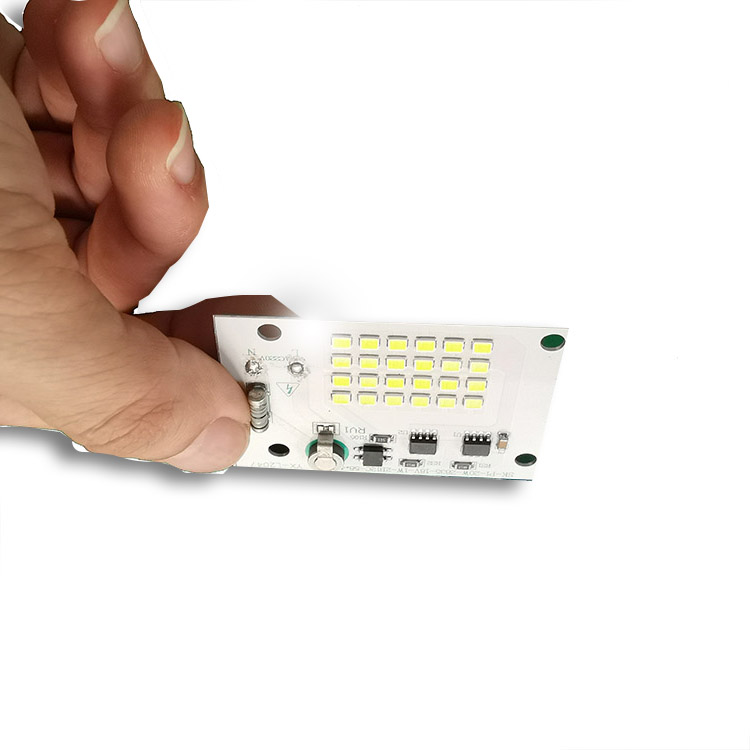

Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
1 / 5
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V
Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V

Jiangmen Factory Light Bulb Lighting PCB Components Purchase SMD PCB 12W LED Chip 6V

Send Inquiry

Product Description

PCB lighting components banner
Product Description
Light bulb lighting PCB components purchase SMD PCB 12W LED chip 6V
We are committed to bringing customer satisfaction by providing led chips with bare pcb . We have SMD machine, led beads can be 5730, 2835, 5050, 3030 etc. We can help customers to SMD separately if there is necessary. Customized design and requirement is our strength. Welcome to contact us for more details.

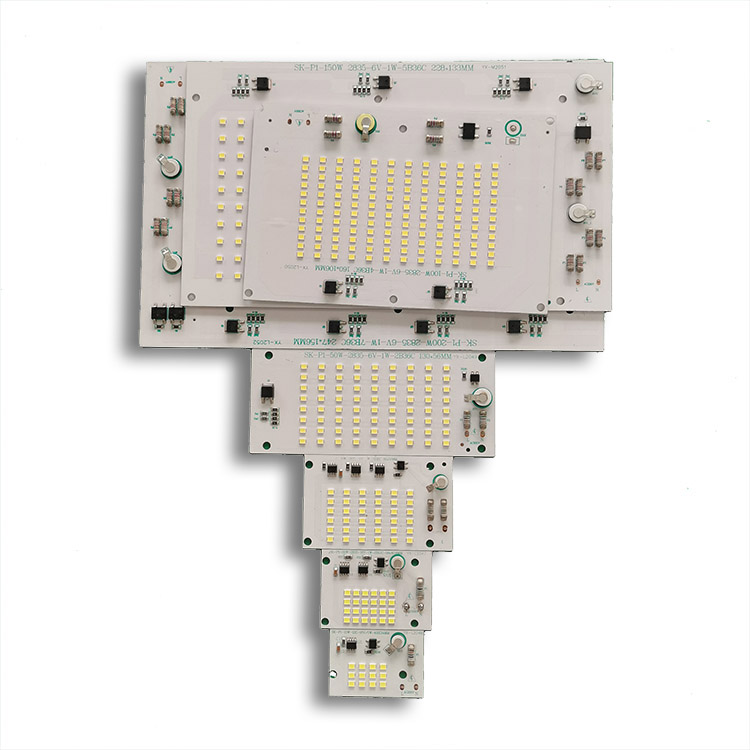

LED chip pcb layout sample 1
LED chip pcb layout sample 2
Bare PCB component front

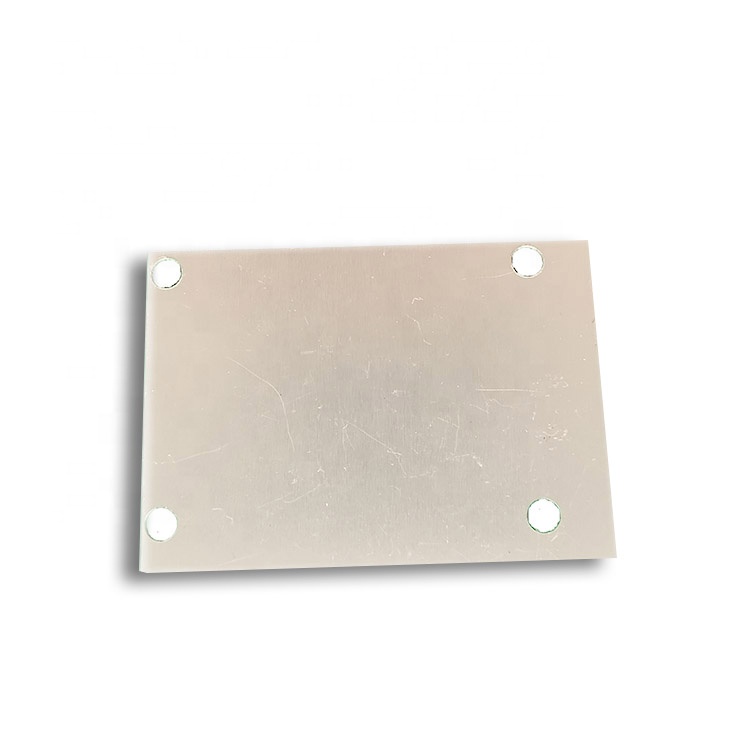

Bare PCB component back
Specification
Item Processing Capacity
PCB board 0.4/0.6/0.8/1.0/1.2/1.5/1.6/2.0/3.0mm
Led chips 2835/3528/3030/5730 etc.
CCT 2700-7000K
Lumen 60--160lm/w
Wattage 3W/6W/9W/12W/15W /24W/36W etc.
Voltage AC85-265V or DC12/24V
Current 30ma/60ma/90ma/150ma etc.
Chip Brand Can meet your requirement
Warranty 2 years
Manufacturing Technology

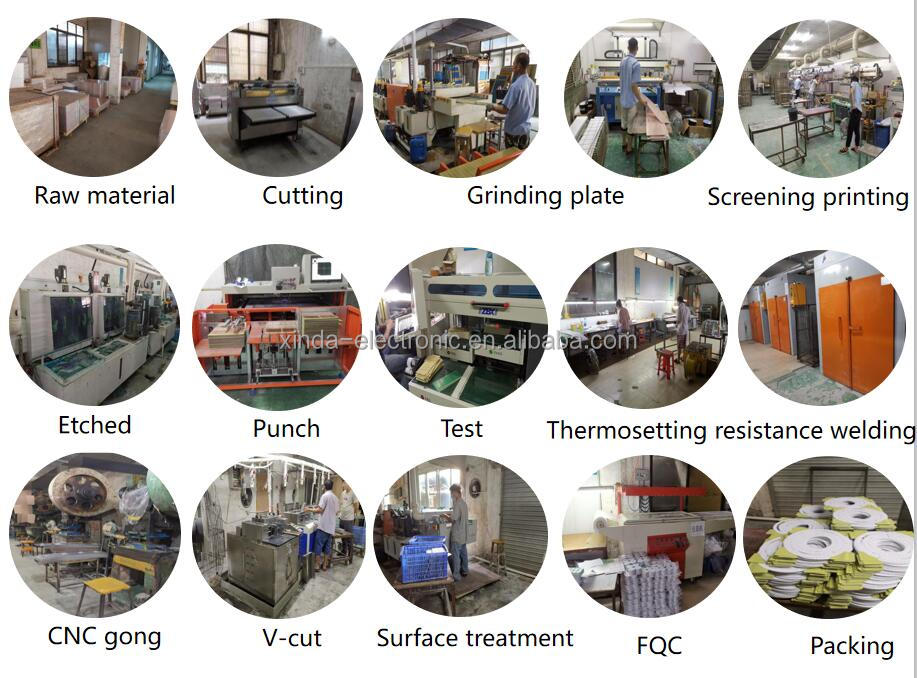

Manufacturing process floor 1

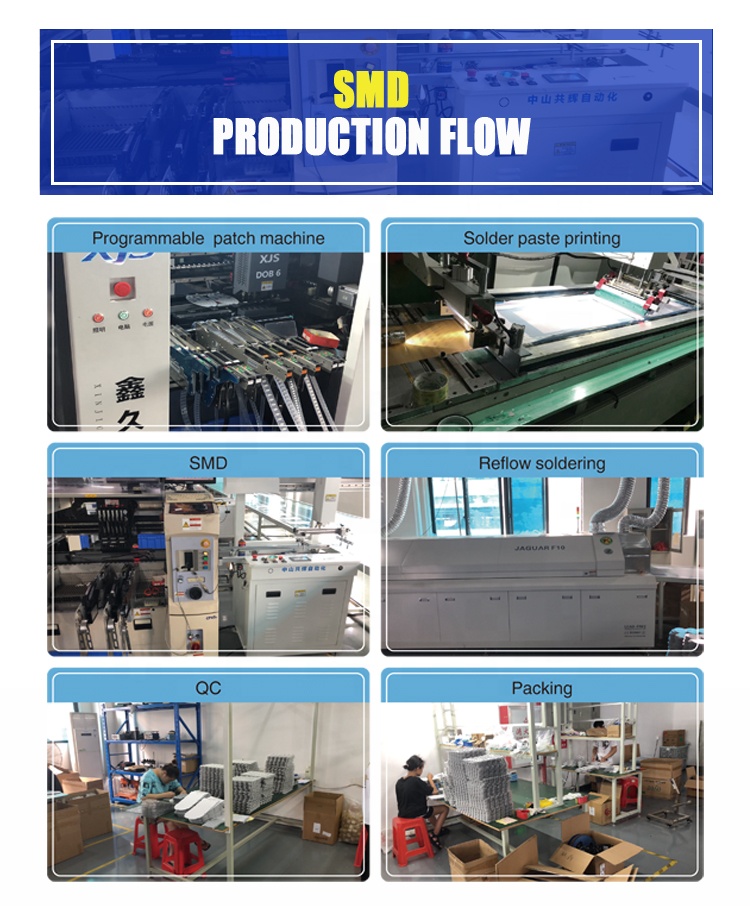

Manufacturing process floor 2
Profile
We are a powerful manufacturer of professional customized circuit boards, mainly engaged in R&D, production, processing and sales: PCB aluminum substrate, glass fiber board, LED circuit board, LED driving power supply, light source board, etc. We have a professional production engineering team, advanced and complete automation equipment and quality assurance. We also have SMD machines, enabling us to support SMT assembly separately according to customer requirements. We support sample customization, rapid proofing, mass production, and provide comprehensive one-stop services.

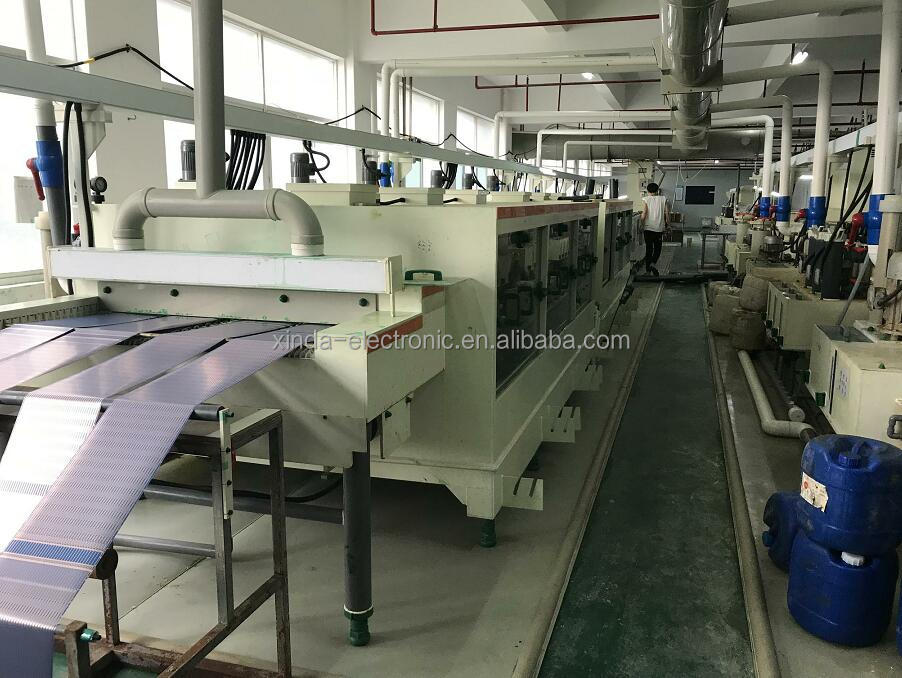

Solder printing and inspection machinery

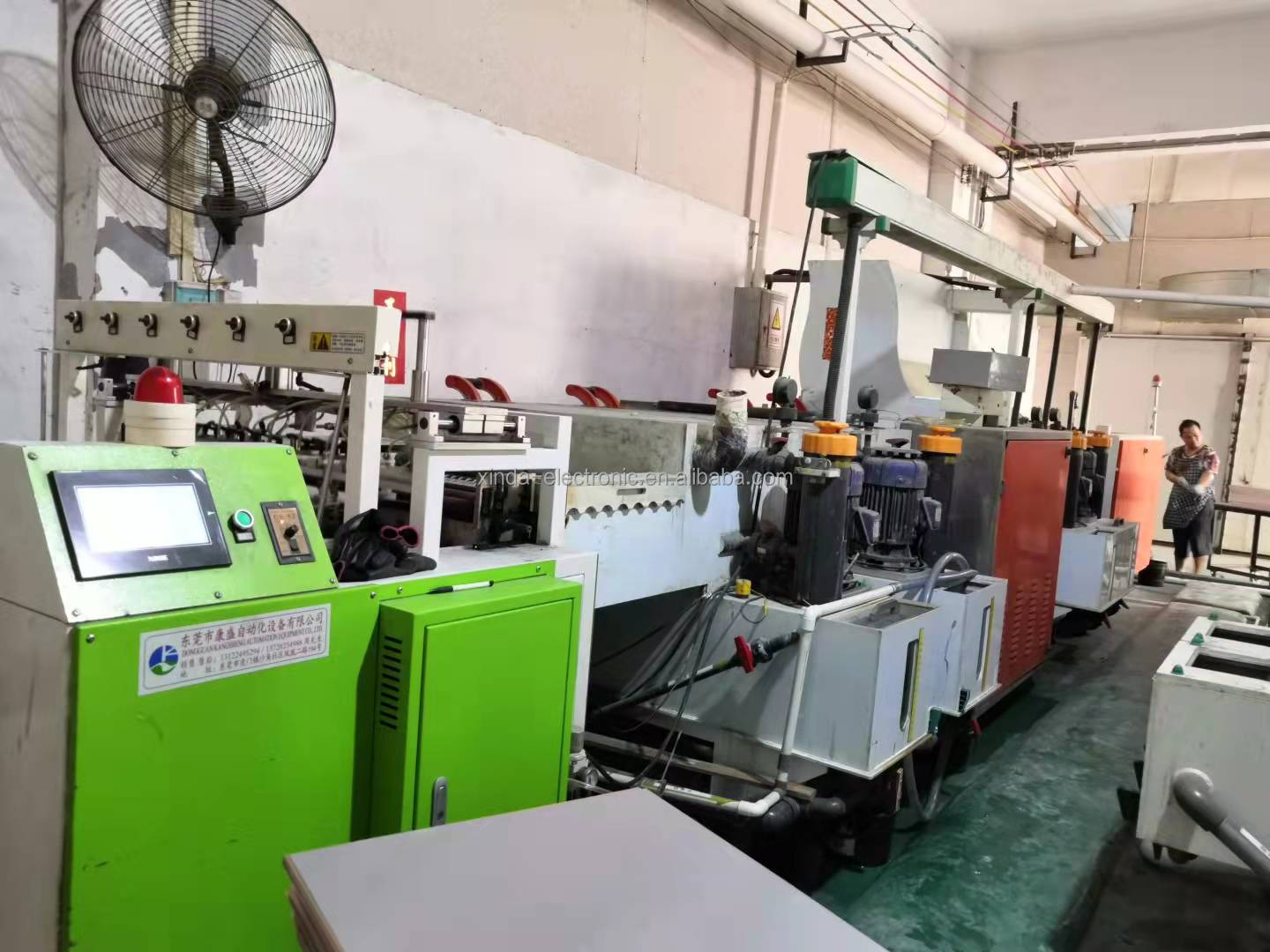

High speed SMT pick and place machine

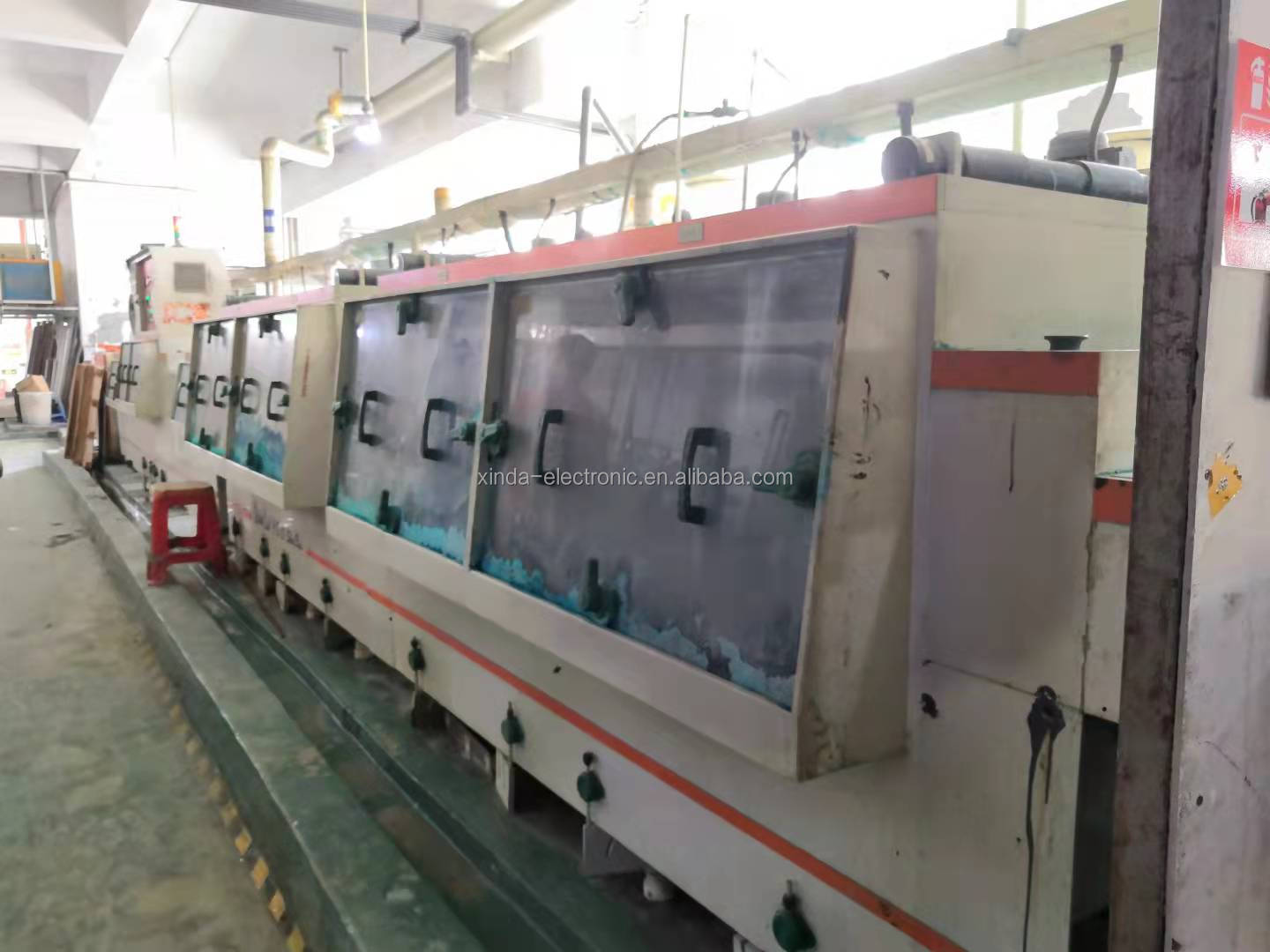

Reflow oven soldering process

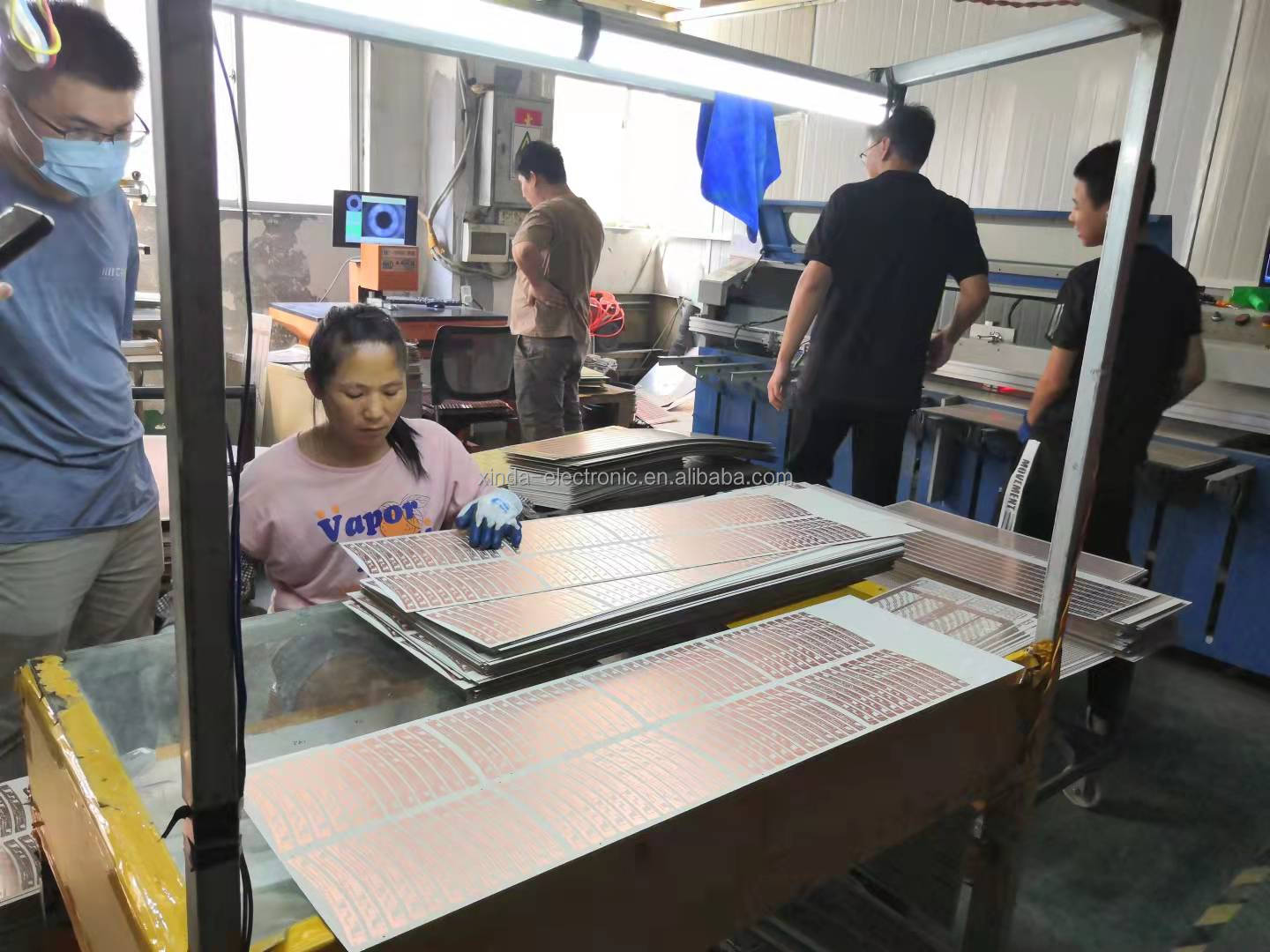

Automated optical inspection system

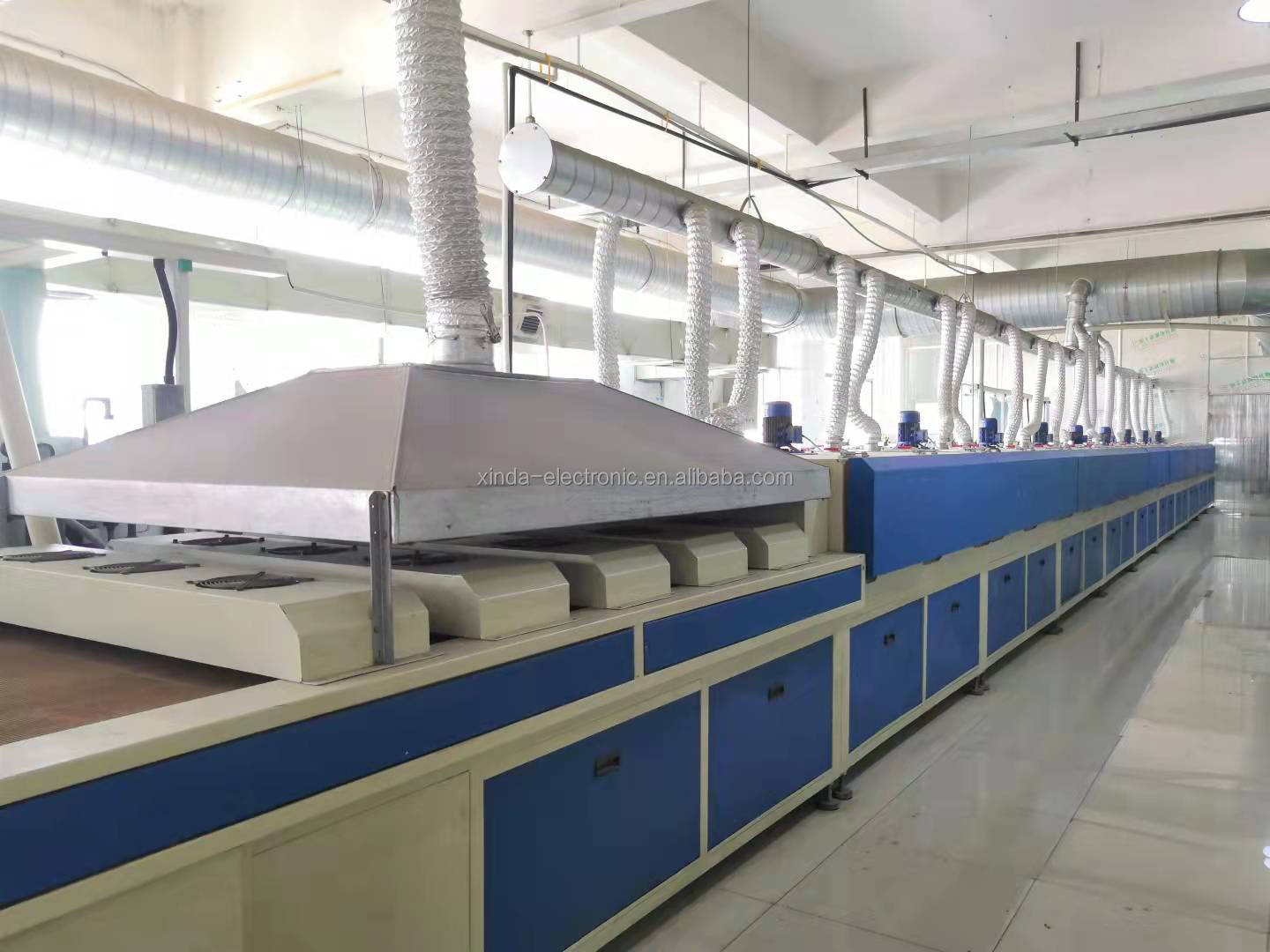

Finished LED PCB components processing

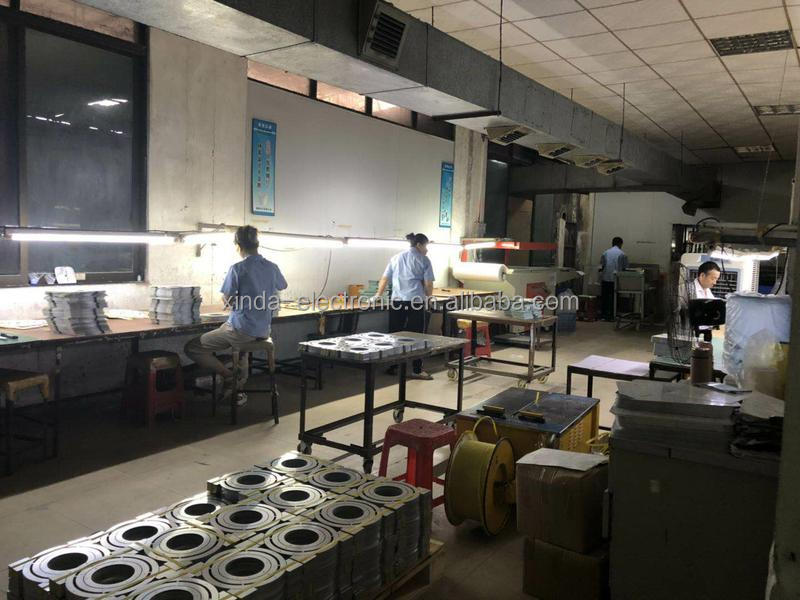

Quality inspection and packing line
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

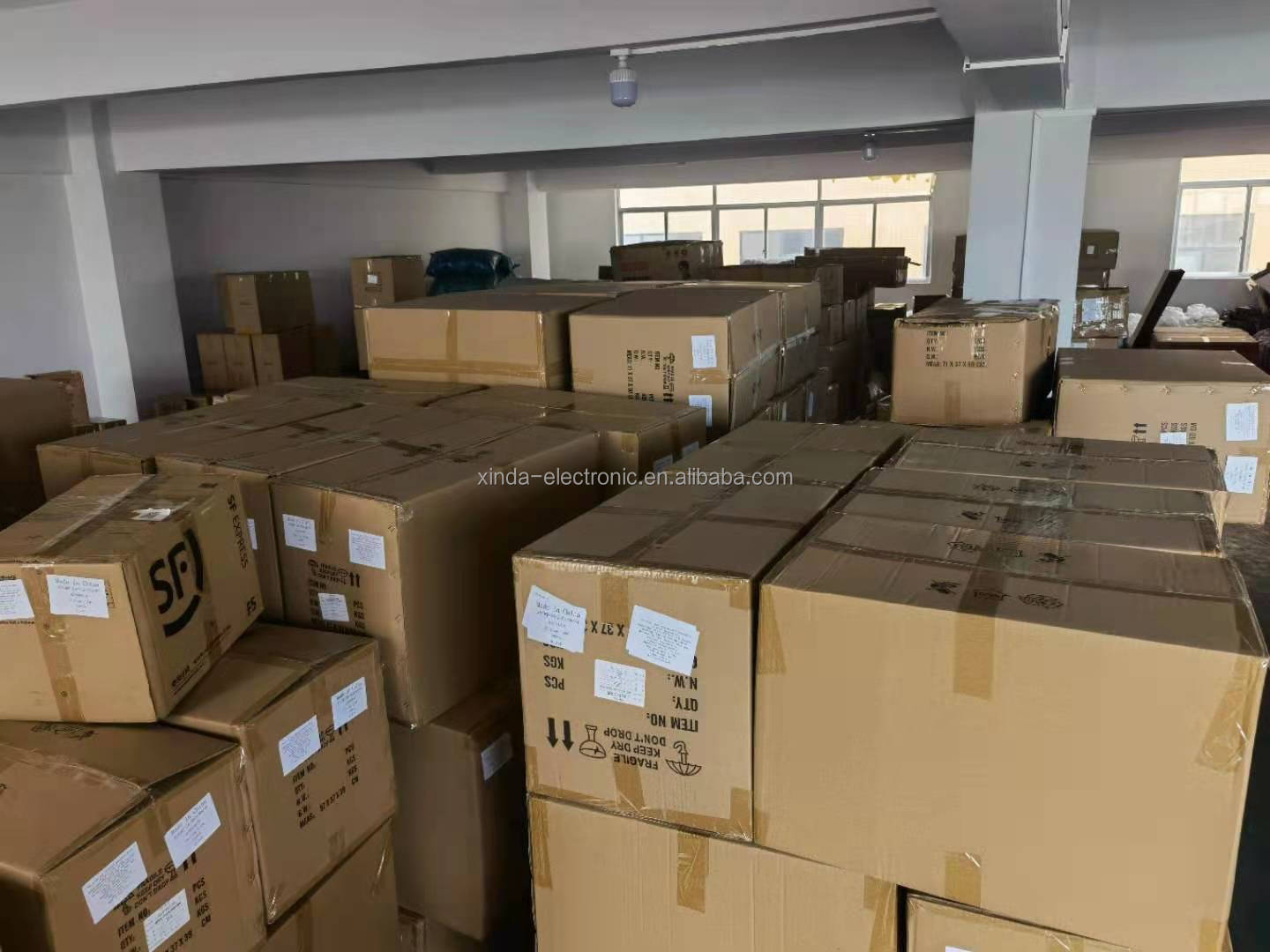

Antistatic inner packaging bags

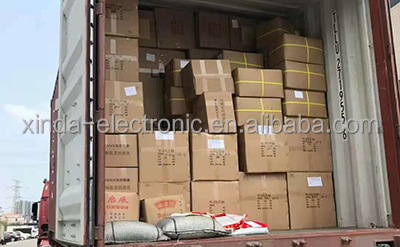

Robust outer cartons packing
Our Services
1
Rapid Responsiveness
All inquiries will be replied promptly within 24 hours.
2
Professional Engineering
Experienced manufacturer supporting highly customized PCB and SMT requirements.
3
OEM / ODM Customization
Customized specs and custom printing for product logos.
4
Guaranteed Quality
100% burn-in and strict electrical quality tests conducted on all products prior to shipping.
5
Fast & Efficient Delivery
Fast turnaround times: 3 to 7 days for samples, and 15 to 20 days for bulk production orders.
6
Dedicated Engineering Support
Our in-house technical team is fully ready to resolve any queries regarding your LED custom setups.
Technical parameters control panels

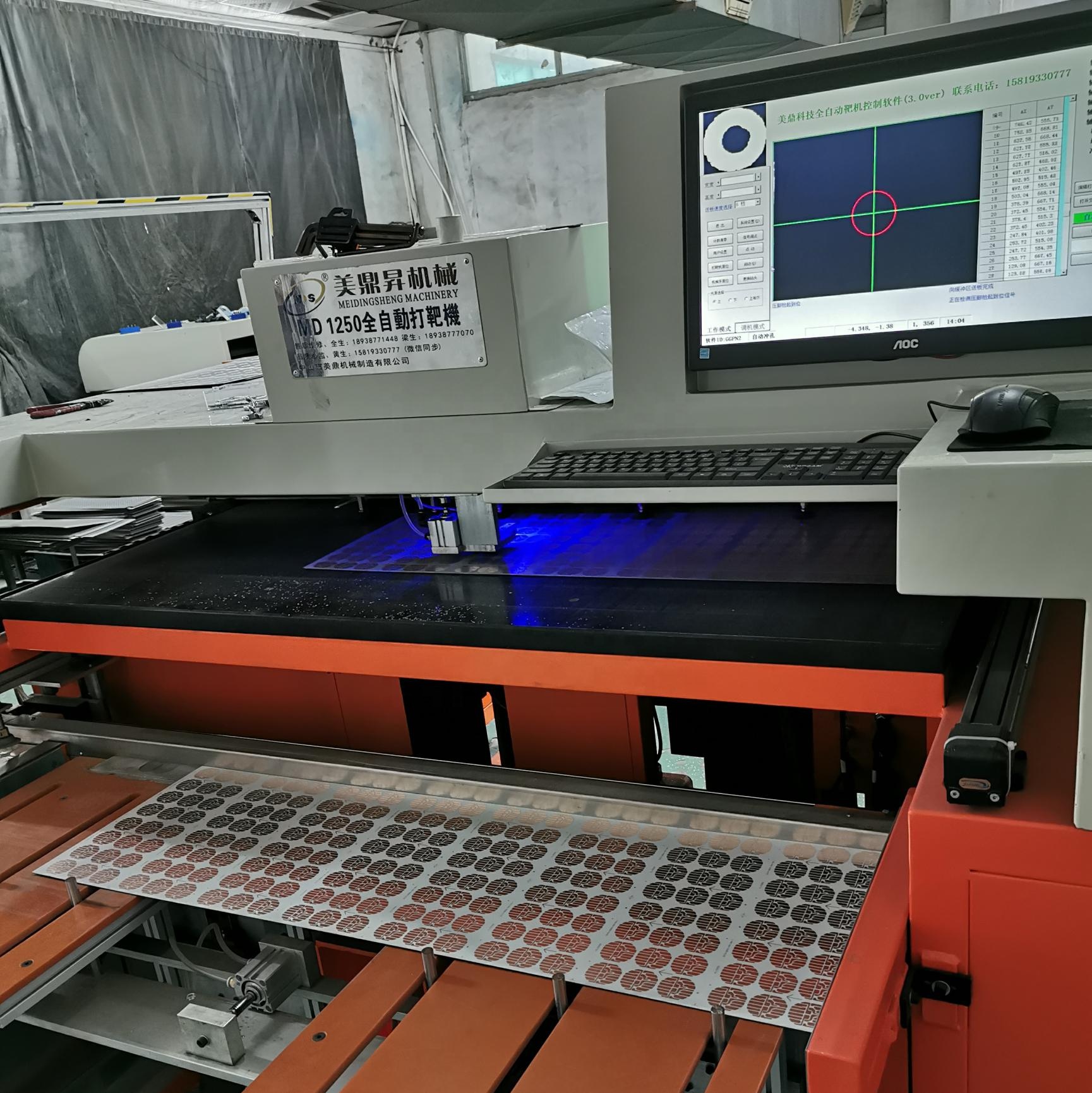

Precision alignment processing tool
Frequently Asked Questions
What turnkey solutions do you provide?
We offer comprehensive turnkey solutions, which encompass high-quality PCB fabrication, SMT assembly, specialized plastic injection & metal works, final product assembly, complete functional testing, and various customized value-added services.
Can I buy the LED chip parts together with the PCB?
Yes, absolutely. We provide options to source SMT mounted LED chips together with the core PCBs. Kindly share your detailed specifications or design files, and we will formulate a tailor-made configuration for your needs.
What are your typical 2835 LED chip specifications?
Our 2835 SMD LED specifications usually offer options like 6V/30mA (0.5W), 6V/130mA (1W), or 6V/150mA (1W), with active lumen values reaching a versatile spectrum from 35-130LM, among other configurable parameters.
Am I able to customize my own specific layout for the PCB portion?
Yes. As a dedicated manufacturing facility, custom designs are our primary advantage. We are fully equipped to modify substrate dimensions, layer counts, thickness parameters, trace routings, and LED layouts to fit your specific drawings.
What general range of services can you handle for clients?
We deliver full end-to-end support ranging from schematic analysis, bare printed circuit board fabrication, high-speed SMT assembly, secondary manual testing, custom enclosures sourcing, to ready-to-sell bulk packaging solutions.
Production certification banner
