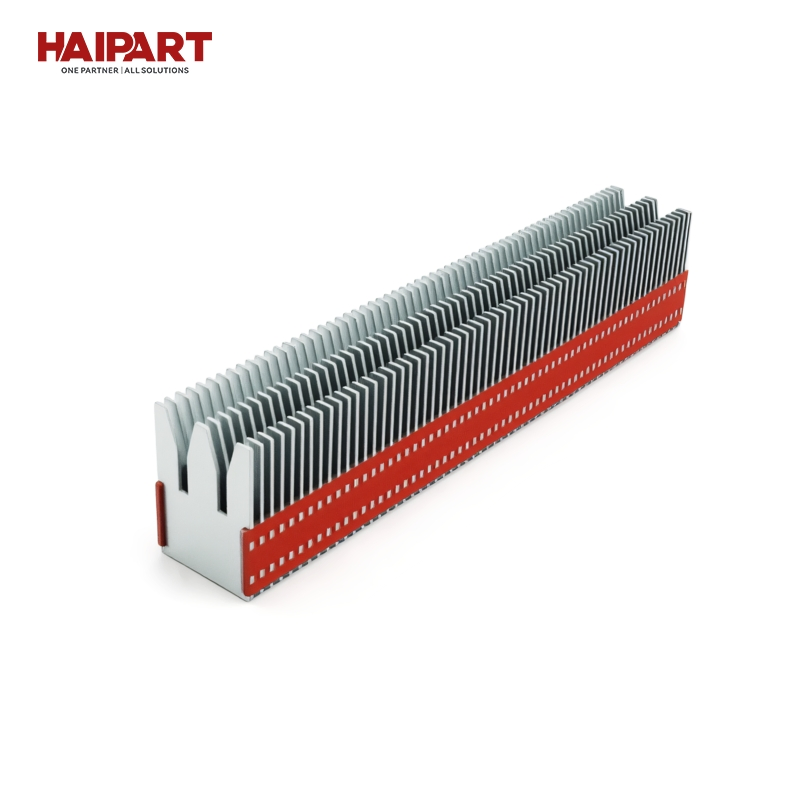

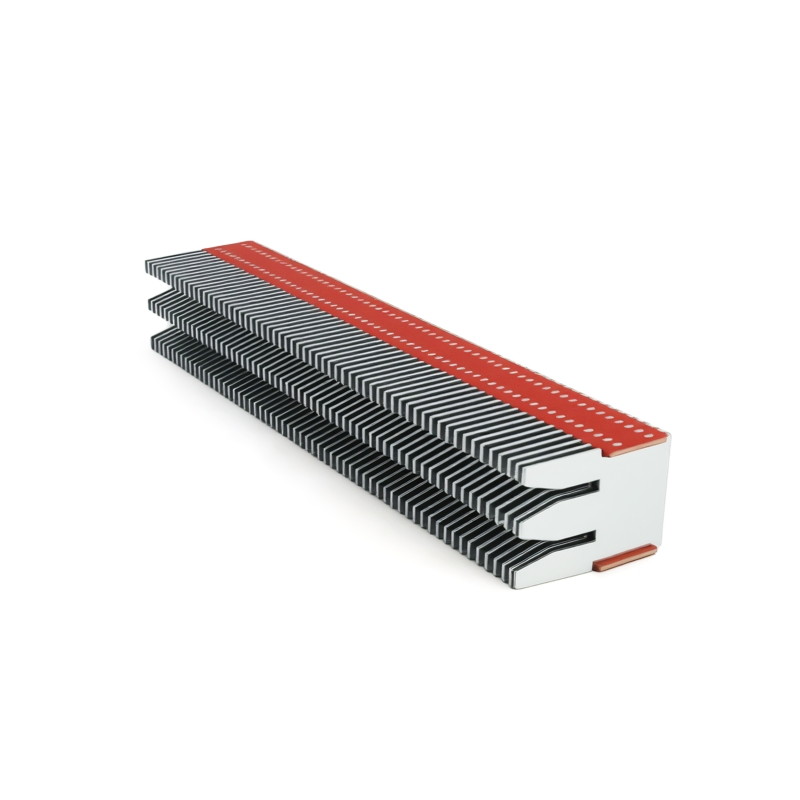

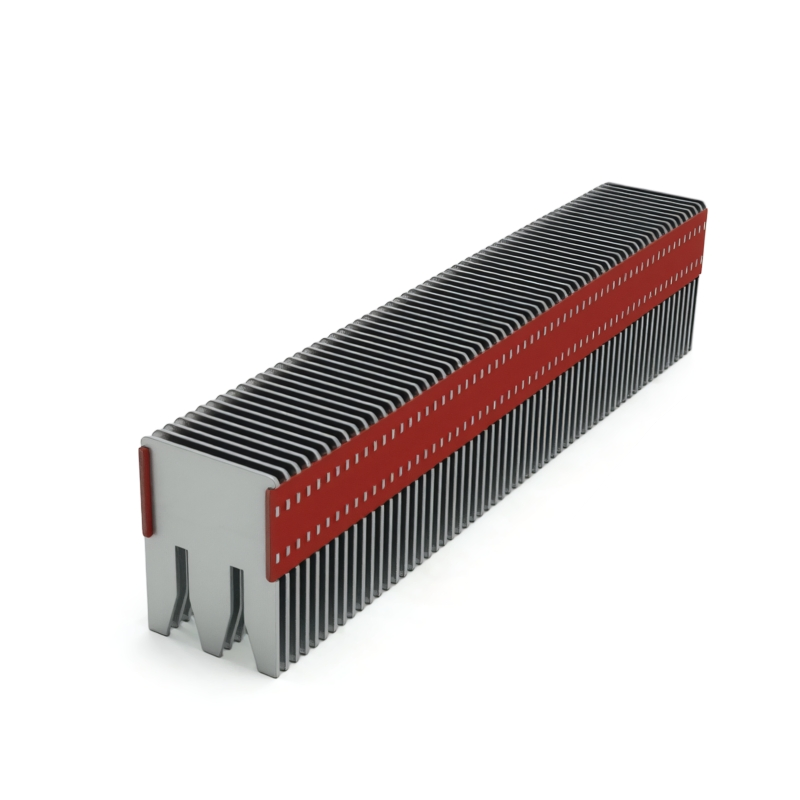

High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
1 / 5
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System
High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System

High-Reliability Arc-Extinguishing Core Component of Long Strip Multi-Layer Grid Structure Railway Electrical System

Customization: Available
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Send Inquiry

Product Description

Basic Specifications

Model NO.
3011166
Speed
Normal Type Circuit Breaker
Medium
Magnetic Blow-out
Installation
Fixed
Structure
MCCB
Poles Number
3
Type
Circuit Breaker
Certification
ISO9001-2000
Manufacturing
Automatic
HS Code
8538900000

Product Description

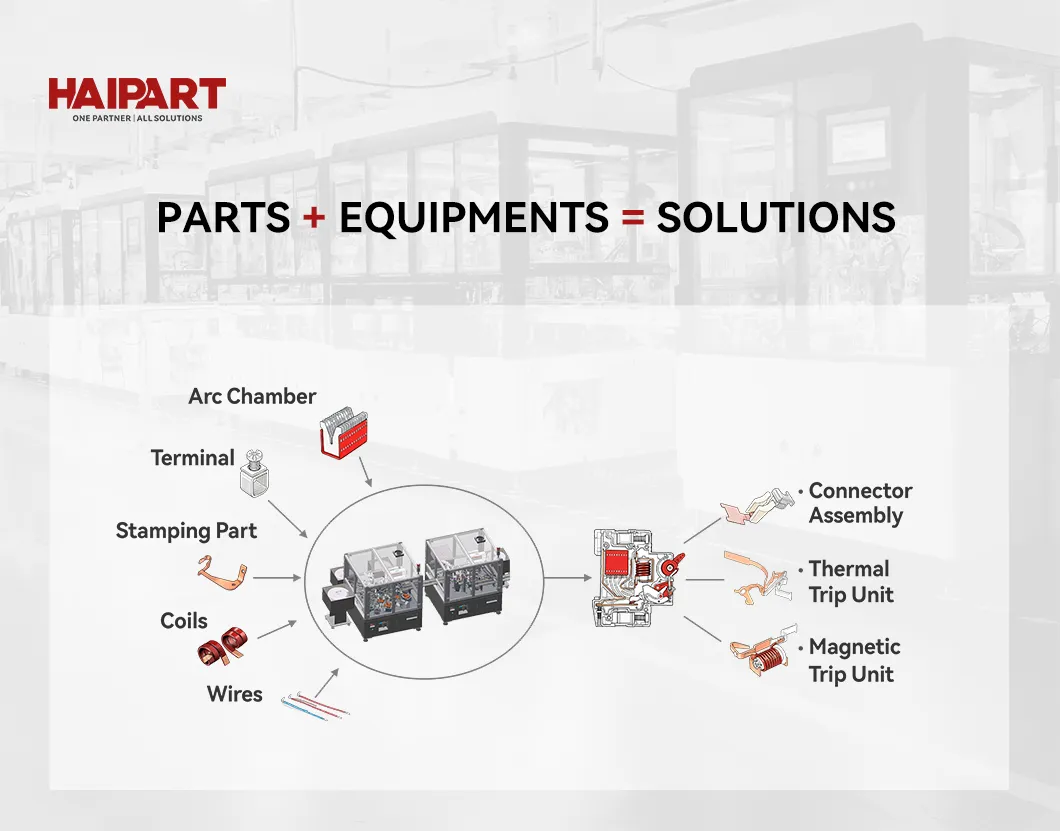

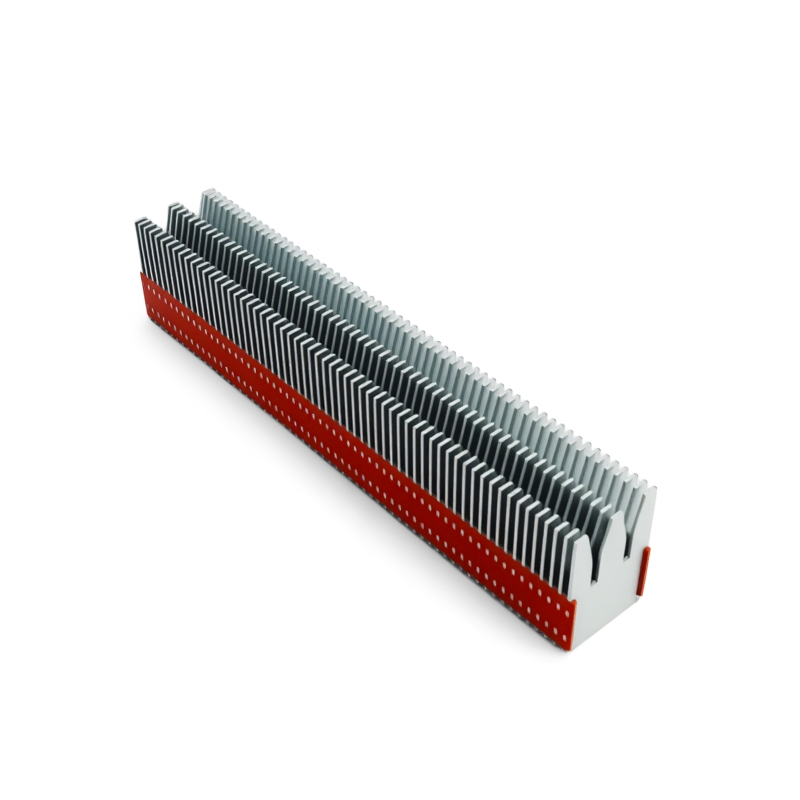

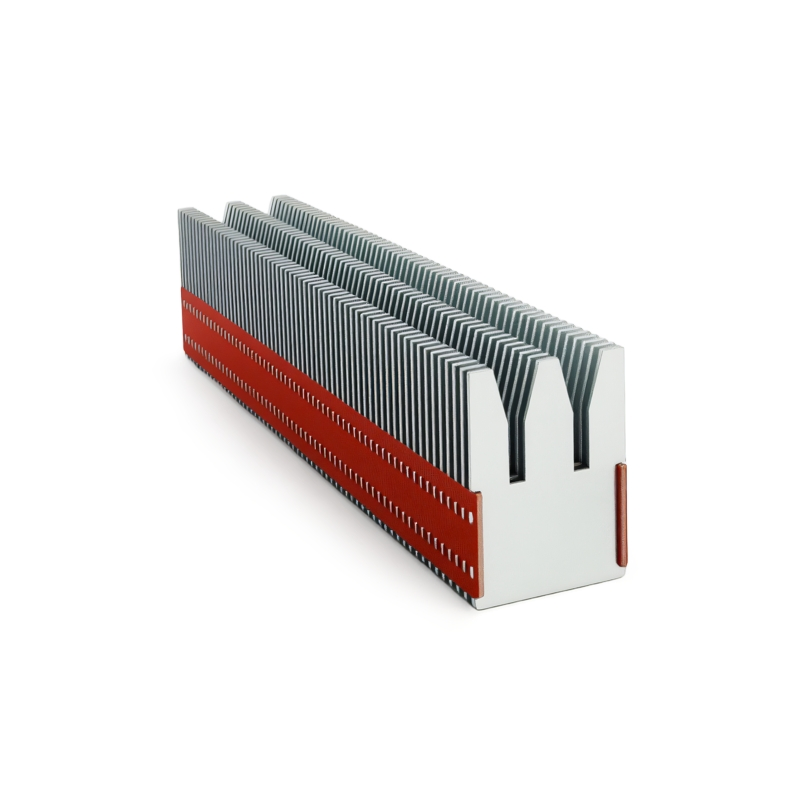

Arc-Extinguishing Component
Model3011166
MaterialIRON Q195, MELAMINE BOARD
Grid Pieces8 pcs
Weight18.5g
Size48*17.6*30.35 mm
CladdingZINC
ApplicationMCCB, Moulded Case Circuit Breaker
Sample ChargeFree (Freight excluded)
OEM & ODMAvailable
Capacity30,000,000 PCS Per Month

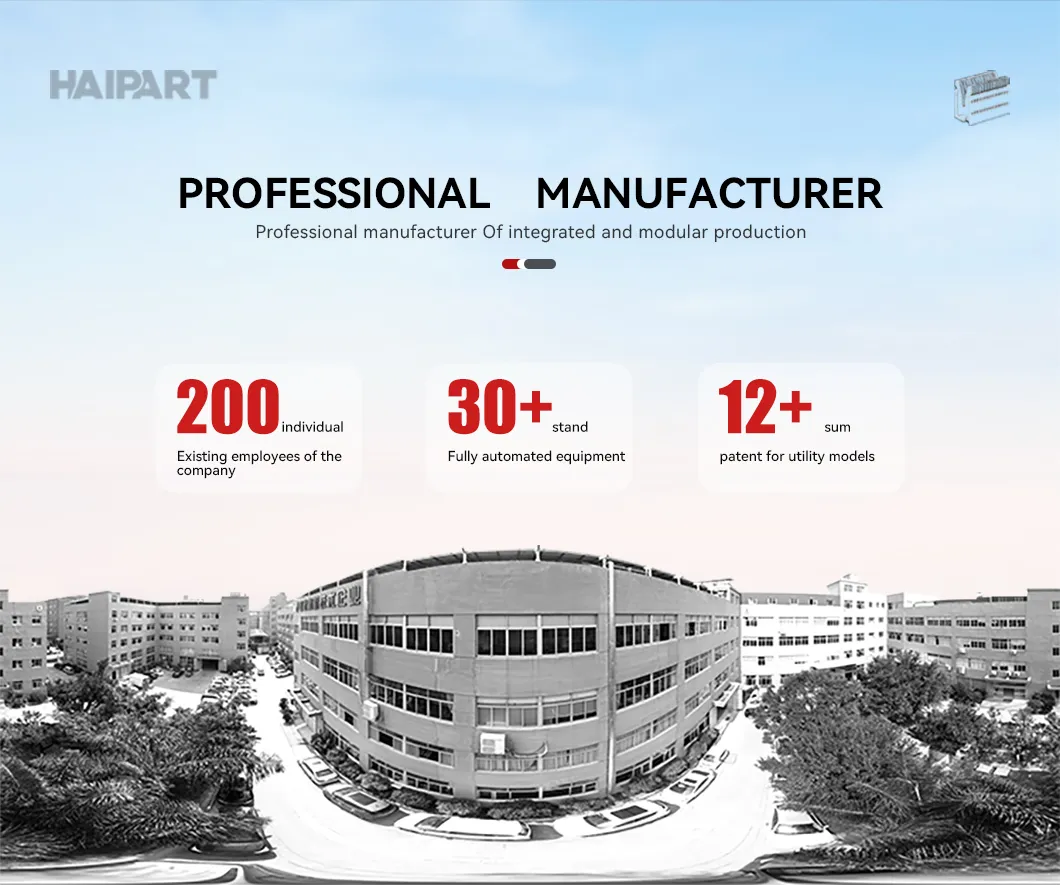

Component View 1

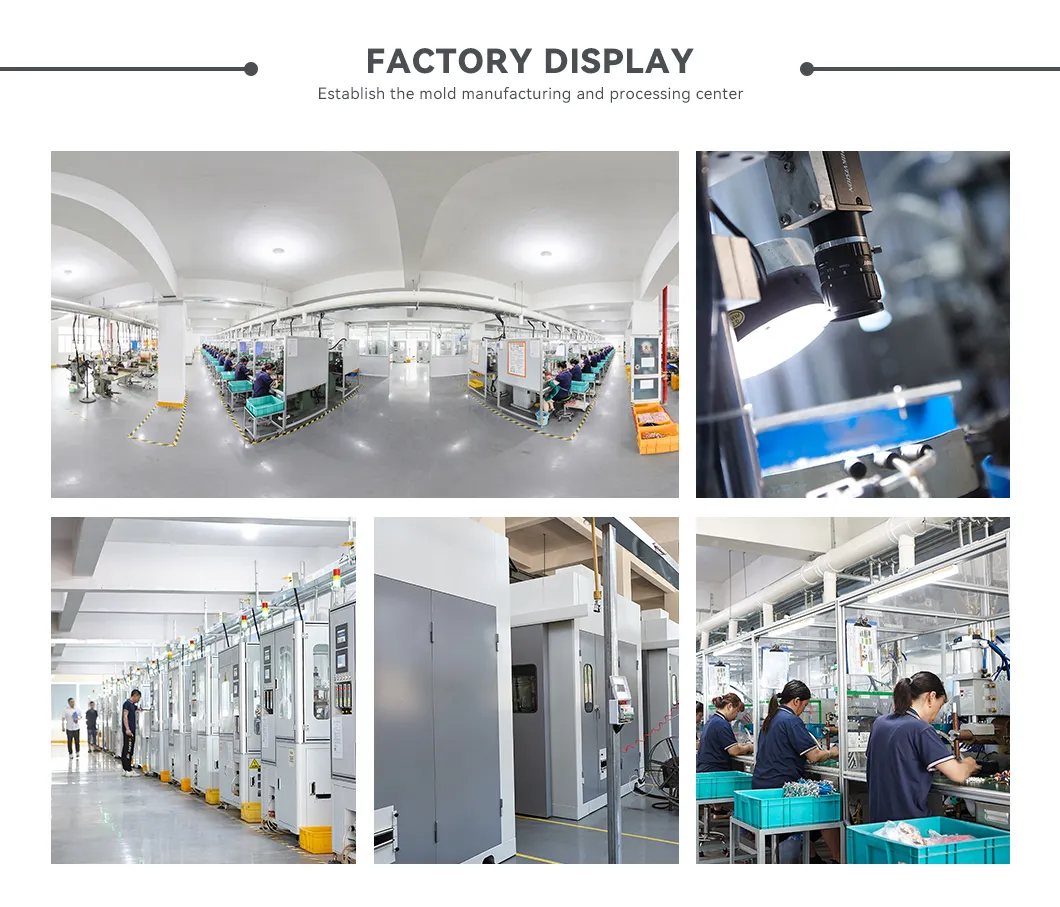

Component View 2
Component View 3
Component View 4
Component View 5
Component View 6

Core Advantages

⚙️Product Customization

Custom arc chutes are available. We can develop samples from technical drawings in 2 weeks. New mould creation typically takes 45 days.

🛡️Mature Technology

Our experienced technicians design all types of arc chambers efficiently. High-level automation ensures cost-effectiveness and precision.

📦Complete Range

Full selection of arc chambers for miniature, moulded case, earth leakage, and air circuit breakers.

✅Quality Control

Strict multi-stage inspection: raw material incoming check, process inspection (rivet/stamping), and final statistical audits (tensile/coating).

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer specializing in circuit breaker accessories.
Q2: What is your standard delivery time?
Normally 5-10 days if items are in stock; otherwise, it takes 15-20 days. For customized orders, timelines vary by requirements.
Q3: Can you provide customized packing or products?
Yes, we offer both customized products and specific packing solutions tailored to customer requirements.
Q4: Do you offer mould making services?
Yes, we have extensive experience in designing and producing moulds for various global clients.
Q5: What is your monthly production capacity?
Our facility is capable of producing up to 30,000,000 pieces every month.
Q6: How do you ensure the quality of the arc chambers?
Quality is confirmed through incoming material checks, rivet and stamping process inspections, and final statistical measurement audits.
