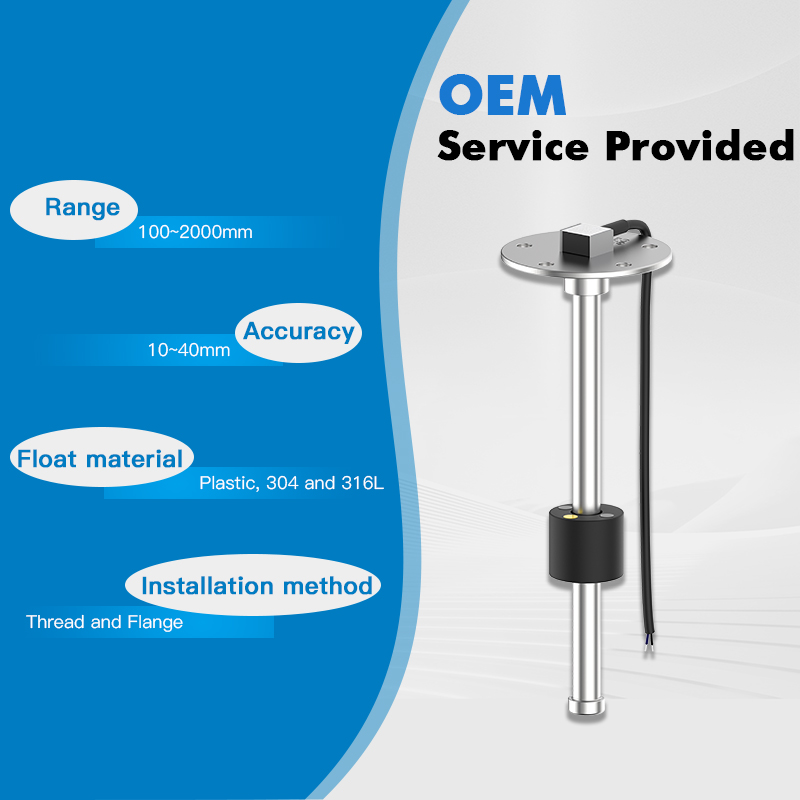

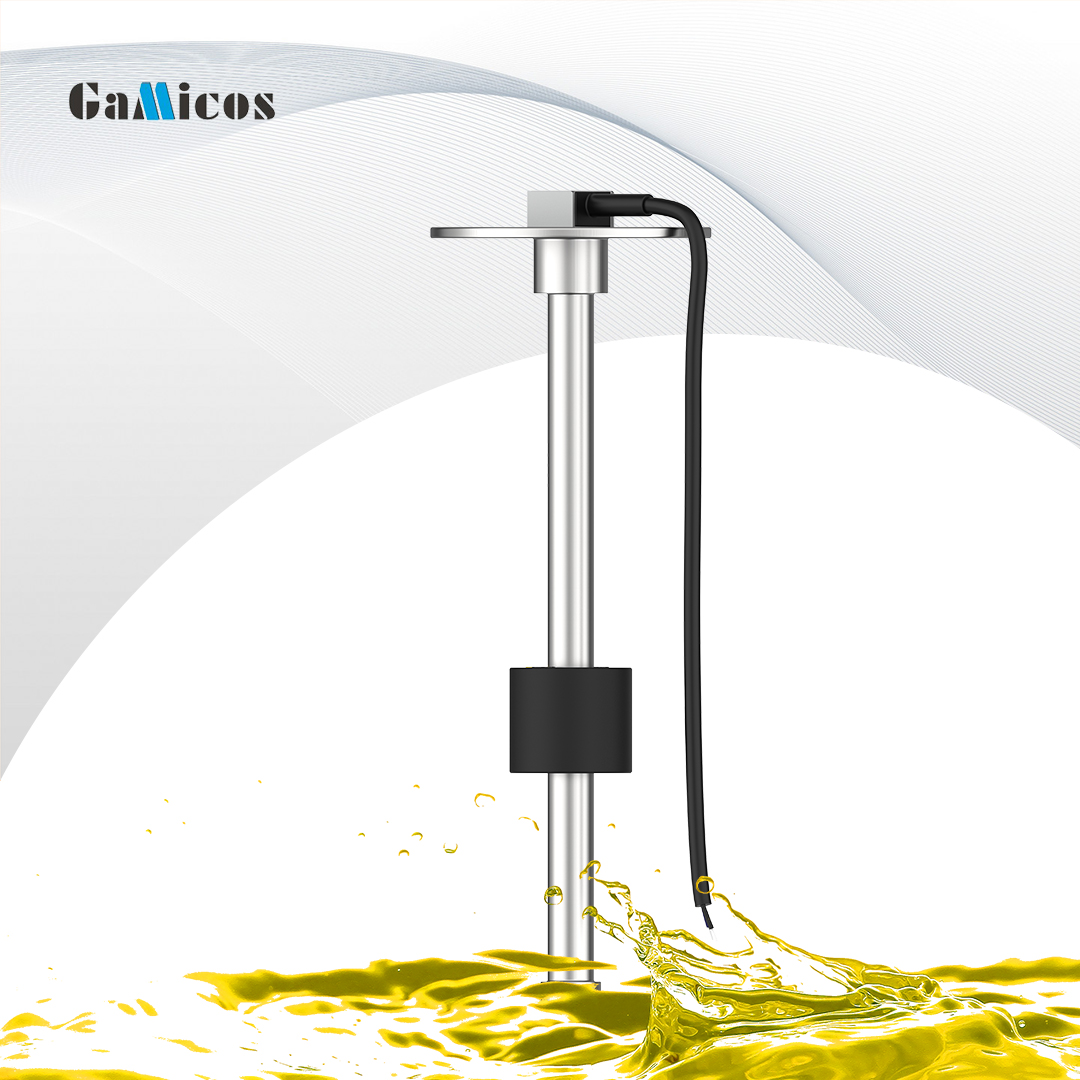

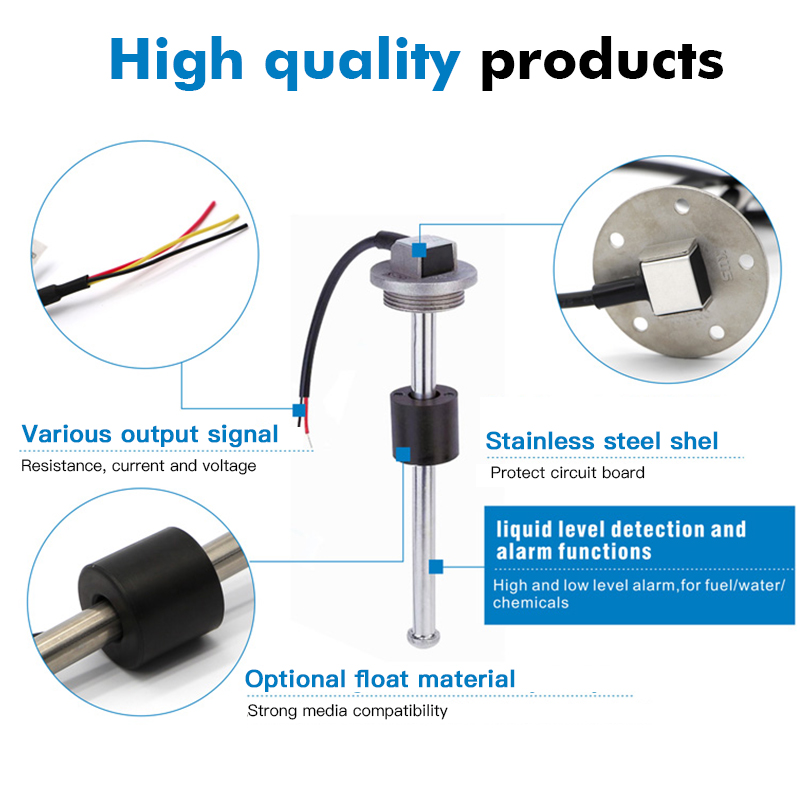

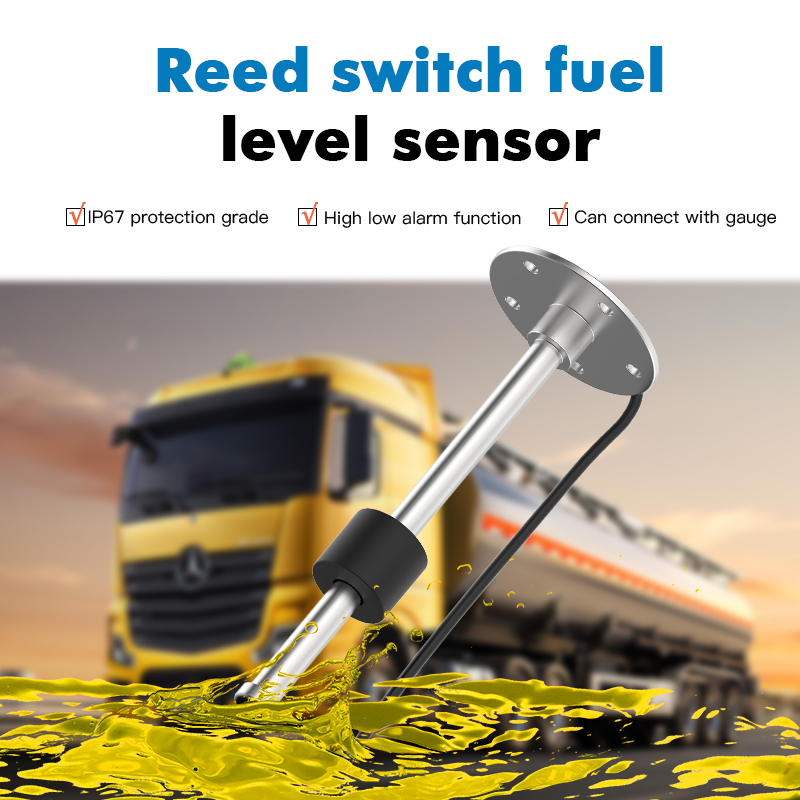

Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
1 / 5
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor
Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor

Gamicos GLTV3 500mm Oil Tank Level Gauge Float Measuring Type Fuel Sensor

Send Inquiry

Product Description

Related Product

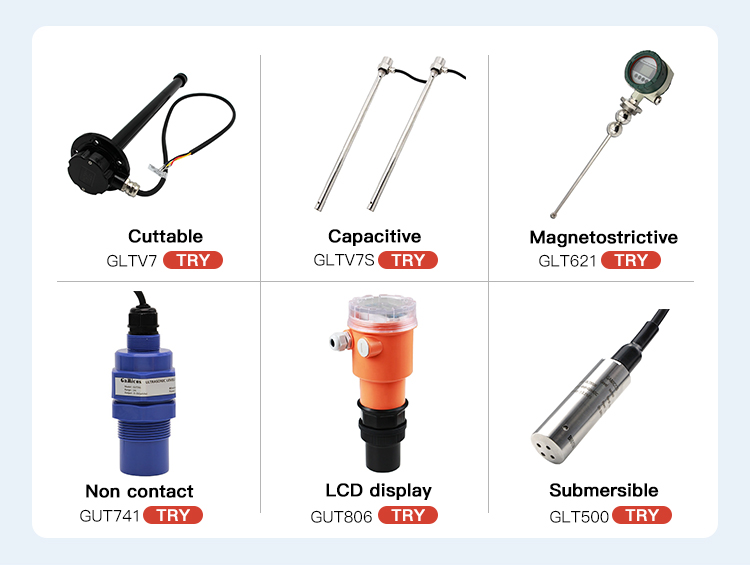

Related Products
Products Description
GLTV3 level sensor is widely used in fuel, water, kerosene, chemical tanks and suitable for truck, generators/gen set, bus and marine field.
With the electromagnetic induction principle, it can output signal stably and continuously.

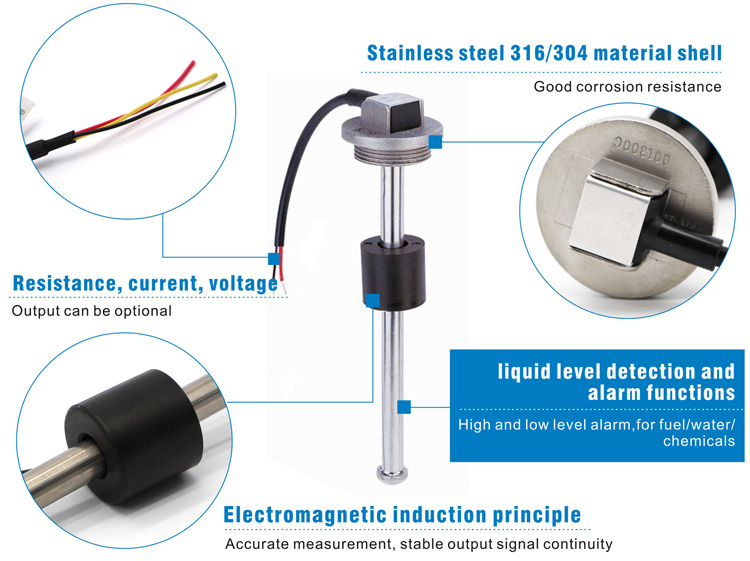

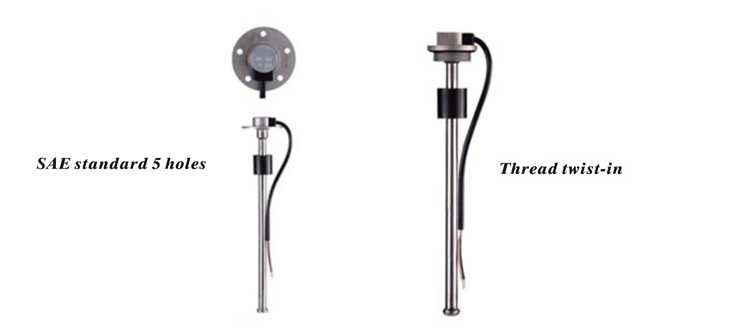

Product Image 1 Product Image 2
Product Parameter
Level range 100~2000mm(OEM can be optional)
Resolution range 10~40mm
Medium Gasoline, Diesel fuel, Water, Polluted water, Drinking water, Alcohol, Chemicals, etc
Power supply 10-32v
Rated power 125mW
Rated current for alarm switch 500mA
Operating temp. range -40~+85°C
Wire PVC material(PA corrugated pipe cover is optional)
Probe material Stainless steel 304, Stainless steel 316L
Floats material Plastic(for oil medium)
Stainless steel 304(For drinking water, chemicals, etc.)
Stainless steel 316L(For sewage)
Mounting BSP 1 1/2", BSP1 1/4" thread twist-in; NPT thread twist-in.
Flanges: 38*2.6mm O-ring / 43*3.5mm O-ring.(OEM)
Application

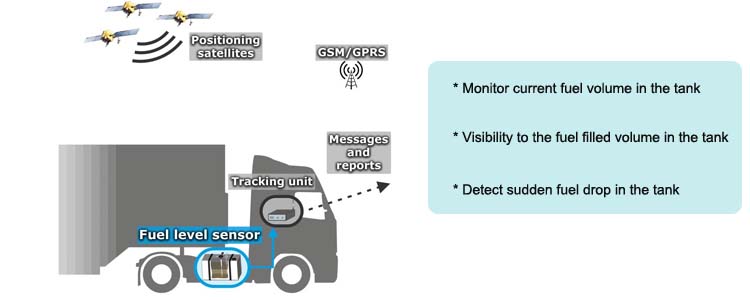

Application 1 Application 2 Application 3

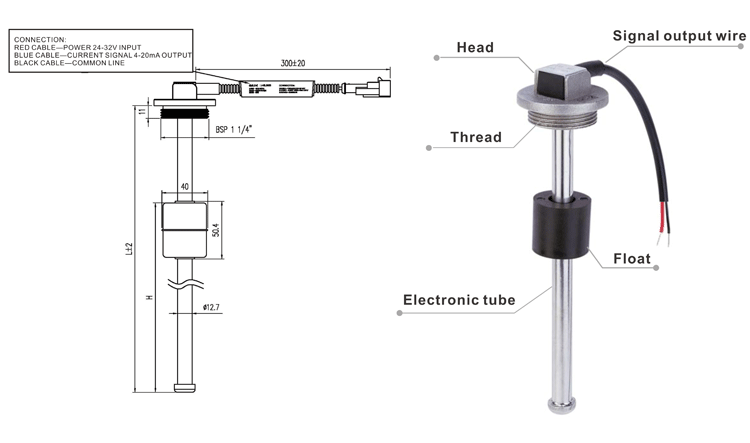

Dimension
Dimension Details

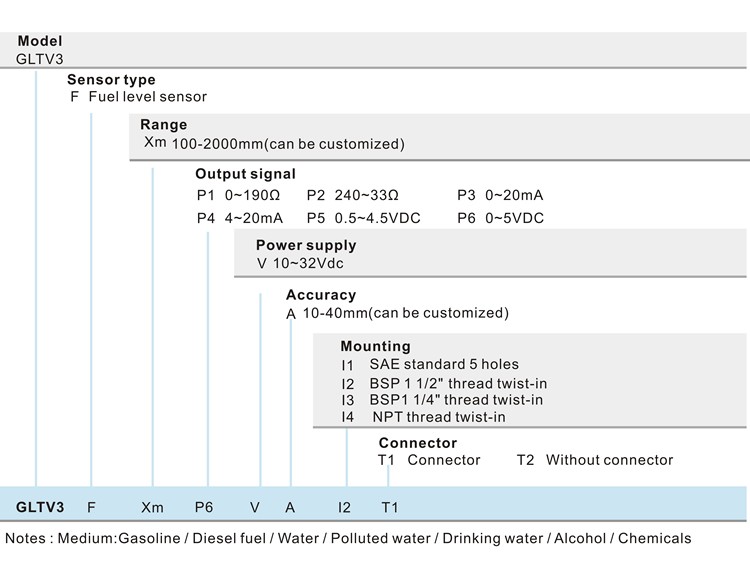

Ordering guidance
Ordering Guidance Details
Frequently Asked Questions
Q What applications are GLTV3 level sensors suitable for?
They are widely utilized in fuel, water, kerosene, and chemical tanks, and are ideal for installation in trucks, generators/generator sets, buses, and marine equipment.
Q How does the GLTV3 level sensor measure the liquid levels?
It operates on the electromagnetic induction principle, ensuring that the sensor outputs highly stable and continuous measurement signals.
Q What measuring lengths and resolutions are available?
The standard level range spans from 100mm to 2000mm (with customizable OEM lengths), and it features a resolution range of 10mm to 40mm.
Q What media can this sensor compatible with?
It is suitable for measuring Gasoline, Diesel fuel, Water, Polluted water, Drinking water, Alcohol, Chemicals, and other similar liquids.
Q What options are available for float and probe materials?
The probe is made of Stainless Steel 304 or 316L. The float material options include Plastic (for oil), Stainless Steel 304 (for drinking water/chemicals), and Stainless Steel 316L (for sewage).
Q What mounting options does the sensor support?
It supports BSP 1 1/2", BSP 1 1/4" thread twist-in, NPT thread twist-in, and various flange configurations like 38*2.6mm or 43*3.5mm O-rings.
