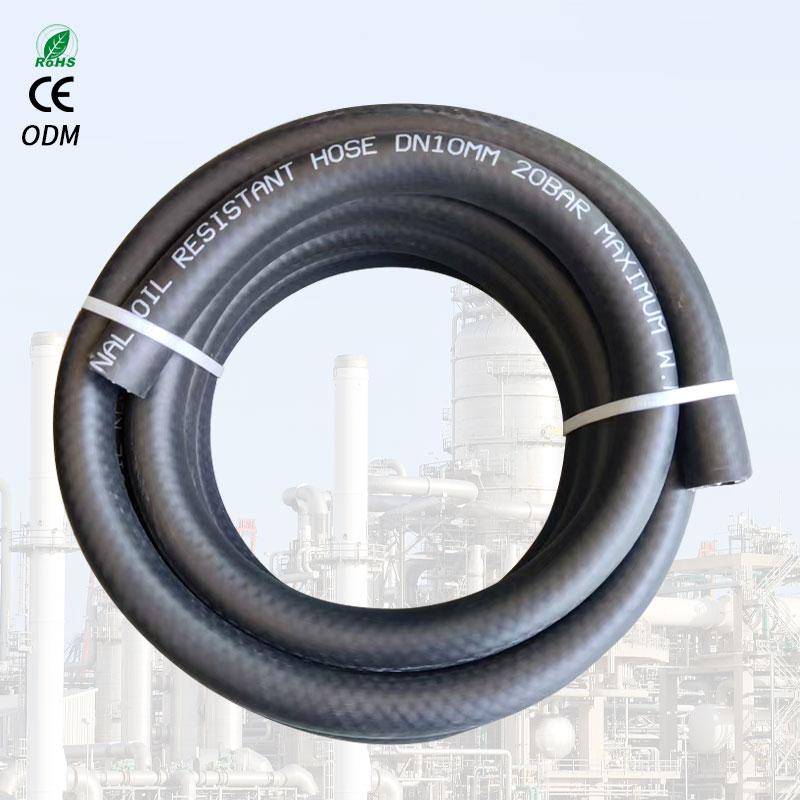

| Product Name | Rubber hose | Working temperature | -30 ~ 100 ℃ |
| Product Material | Synthetic rubber | Product hardness | 70 ± 5A |
| Product Specification | 4-25mm, customizable | Work pressure | 300 PSI |
| Product process | Extrusion, manual winding | Burst pressure | 900 PSI |
| Product Appearance | Smooth surface pure adhesive, smooth surface wire clamp. Cloth pattern surface sandwiching cloth, special-shaped variable diameter pipe. | ||
| Product features | Oil resistance, corrosion resistance, wear resistance, aging resistance, high and low temperature resistance, etc. | ||
| Product Application | Widely used in various construction machinery, agricultural machinery, automobiles, motorcycles, new energy, mechanical equipment, warm air heaters, radiators, fuel tanks, oil pumps, etc. Connecting pipelines for transporting oily media such as gasoline, diesel, engine oil, hydraulic oil, and mechanical oil. | ||

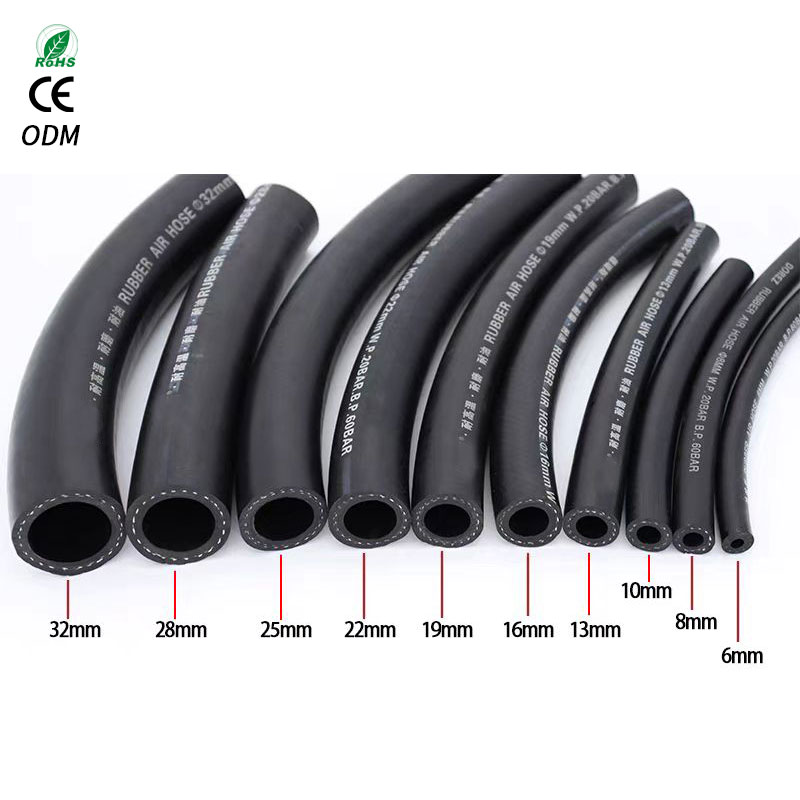

| Inch | Internal Diameter (mm) | External Diameter (mm) | Working Pressure (PSI) | Blasting Pressure (PSI) |
|---|---|---|---|---|
| 1/4 | 6 | 12.5 | 300 | 900 |
| 5/16 | 8 | 14.5 | 300 | 900 |
| 3/8 | 10 | 16.5 | 300 | 900 |
| 1/2 | 13 | 20 | 300 | 900 |
| 5/8 | 16 | 25 | 300 | 900 |
| 3/4 | 19 | 28 | 300 | 900 |
| 7/8 | 22 | 31 | 300 | 900 |
| 1 | 25 | 36 | 300 | 900 |

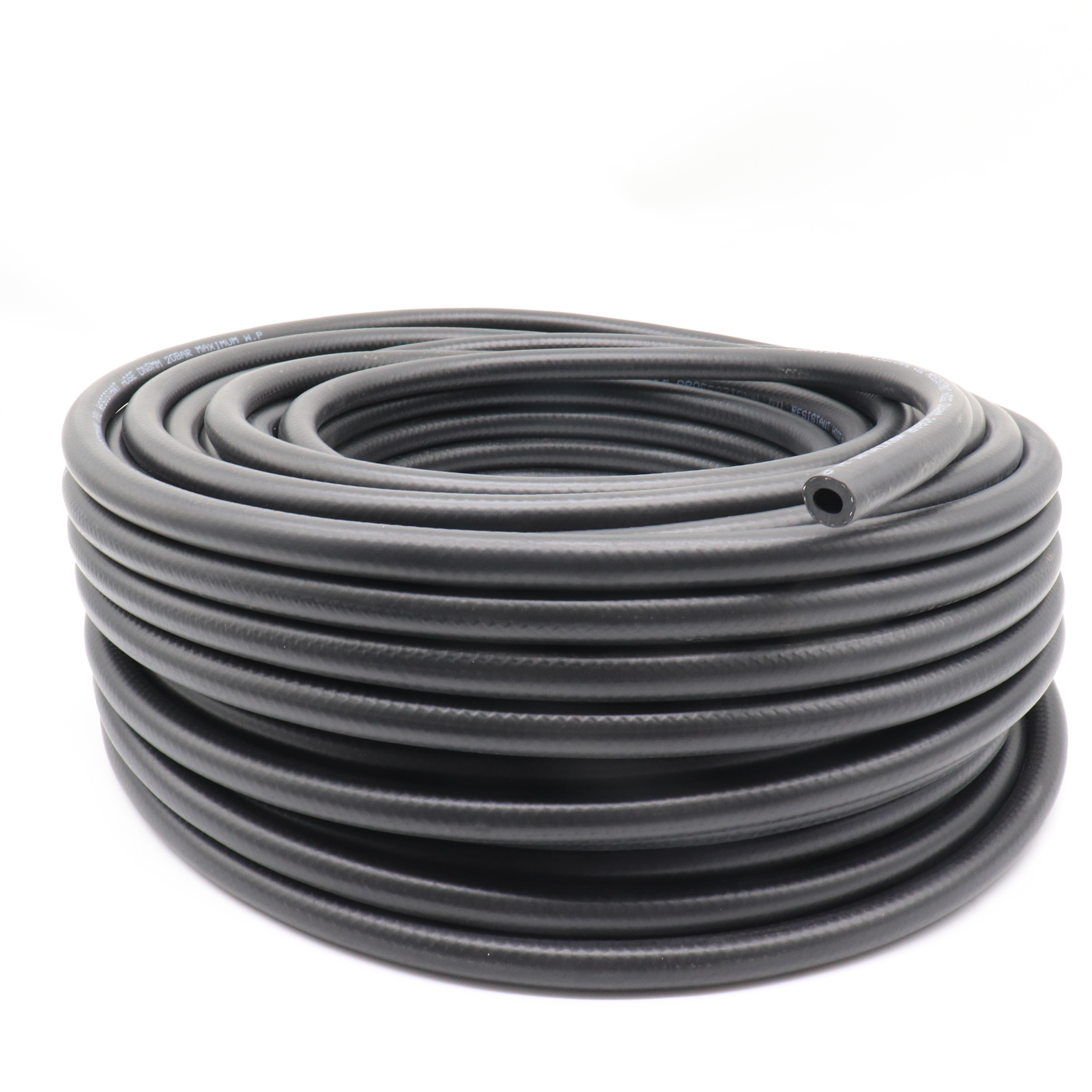

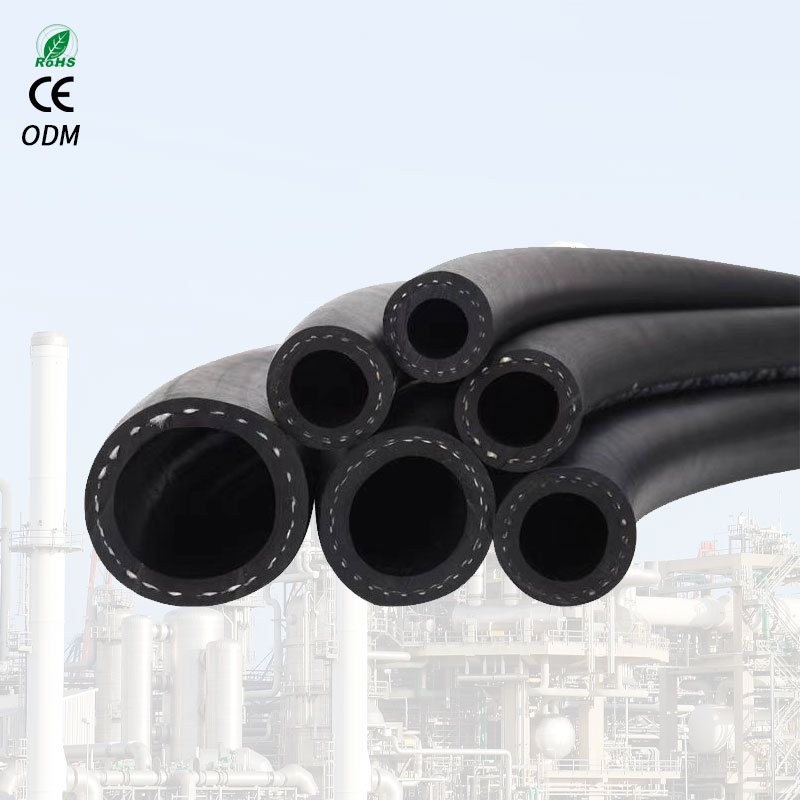

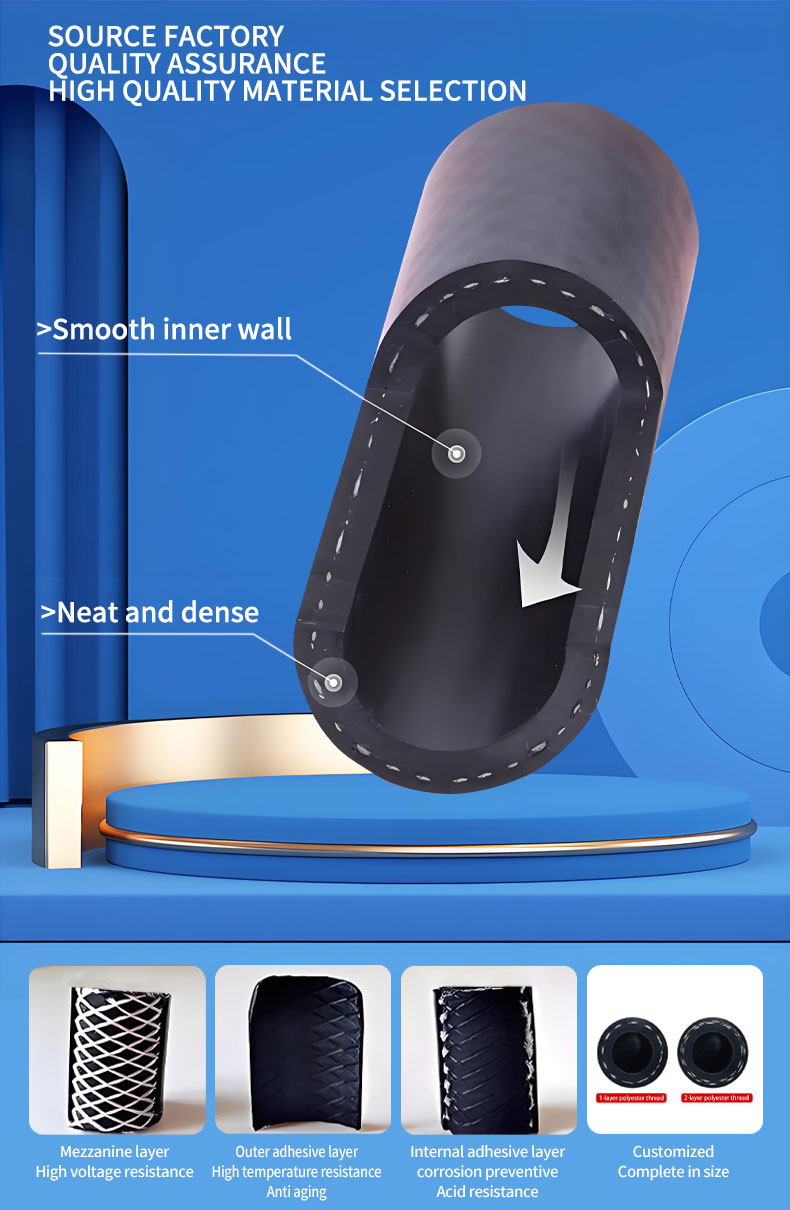

Construction:
Hose: Black, smooth, NBR rubber.
Reinforcement: High strength synthetic yarn.
Cover: Ozone, oil resistant synthetic nitrile rubber.
Characteristics:

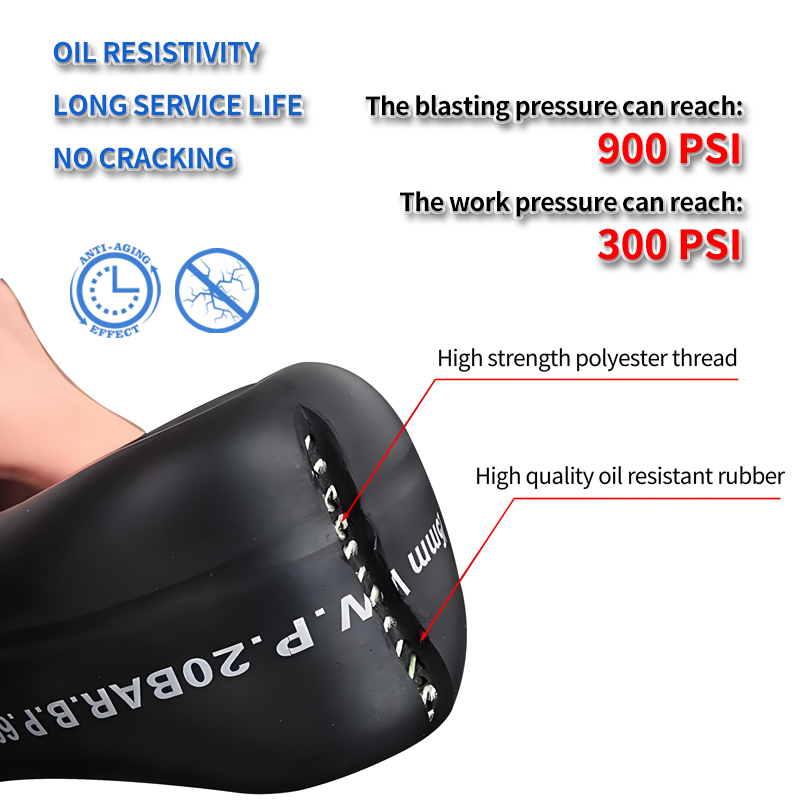

Durable Stable Structure:
The fuel line is made of inner rubber (air-tight nitrile rubber), outer rubber (NBR rubber), and a middle reinforcement layer (high-strength polyester fiber) to enhance pressure bearing capability and working pressure anti-aging performance.
Chemical Stability Features:
The fuel line hose offers excellent anti-hardening and chemical stability, making it highly suitable for outdoor use with good resistance to ultraviolet rays and ozone.

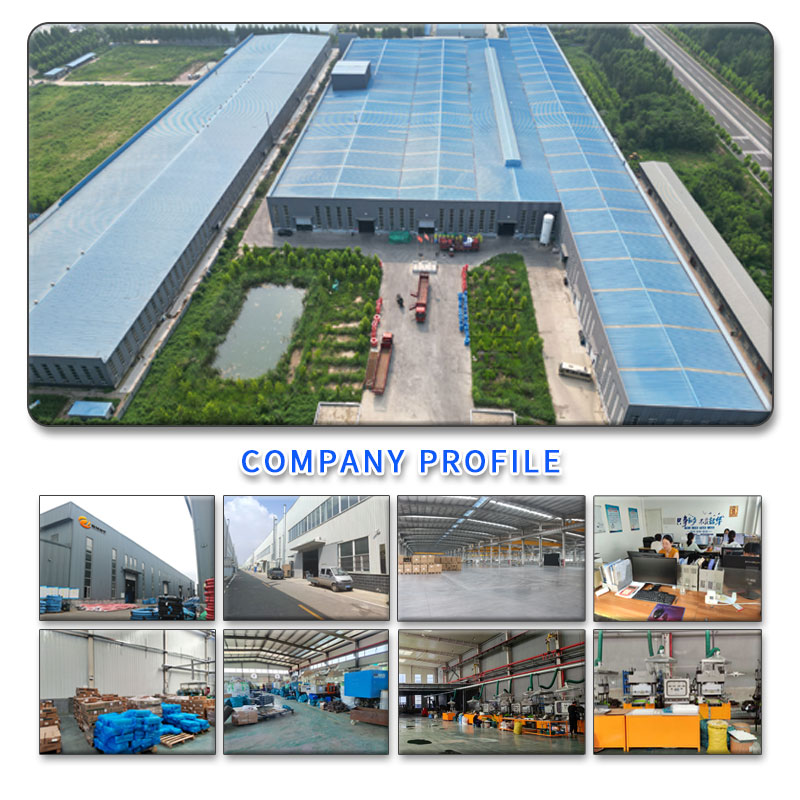

We are a high-tech enterprise that integrates polymer material research and development, high-end rubber and plastic product production, and customized solution services. Established in 2008, our facility covers an area of 38,000 square meters. We have three modern standard factories equipped with more than 50 advanced equipment units, including advanced extrusion production lines and fully automatic vulcanization units, achieving an annual production capacity of over 50,000 tons.
Our diversified product matrix covers industrial seals, shock absorbers, conveyor belts, and other series, utilizing special materials like EPDM and fluororubber, supporting a temperature range of -50 ℃ to 300 ℃. Our engineering plastic accessories include precision components such as nylon gears and polyurethane buffer blocks, widely applied in automotive manufacturing. Our rubber hose lines cover hydraulic hoses, oil pipes, and special industrial hoses. Among them, our ultra-high pressure hose with a four-layer steel wire winding structure withstands working pressures of up to 50MPa, making it a key component for mining machinery matching.
We offer customized non-standard mechanical parts according to customer drawings, providing a complete one-stop service from design to bulk delivery. We are dedicated to technological innovation and quality services, specializing in producing high-quality rubber products, rubber parts, injection molded parts, rubber hoses, hose joints, and mechanical accessories.
