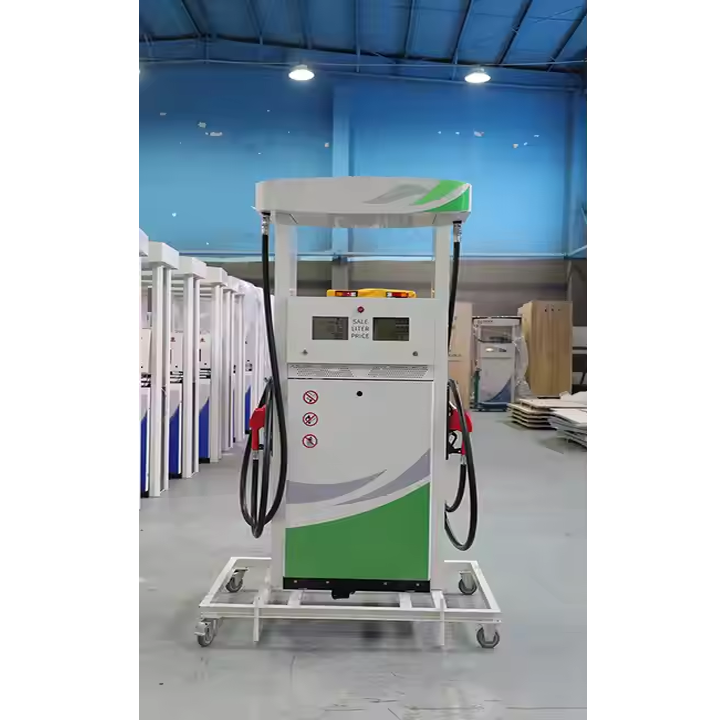

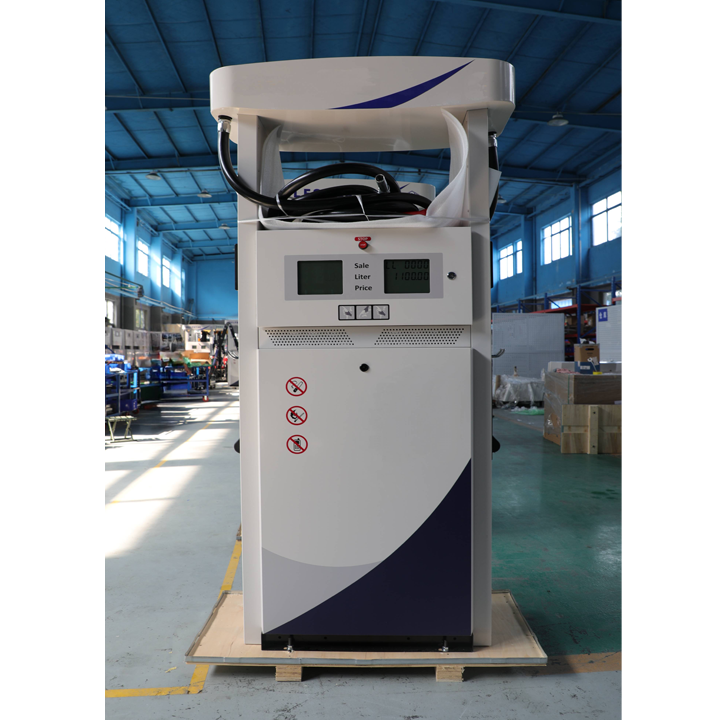

Good Quality Customizable Double Hose Double Nozzle Tokheim Pump Fuel Dispenser

Product Description

Fueling Equipment

Focusing on the development, manufacturing and sales of high-end fueling equipment, we provide customers with one-stop gas station equipment, accessories and intelligent solutions. Our fuel dispenser products have been widely acclaimed in the Middle East, Africa, Southeast Asia and other regions. We always adhere to technological innovation and are committed to promoting the development of the fueling industry. We have a full range of petrol station equipment and customized solutions to maximize cost savings for our customers.

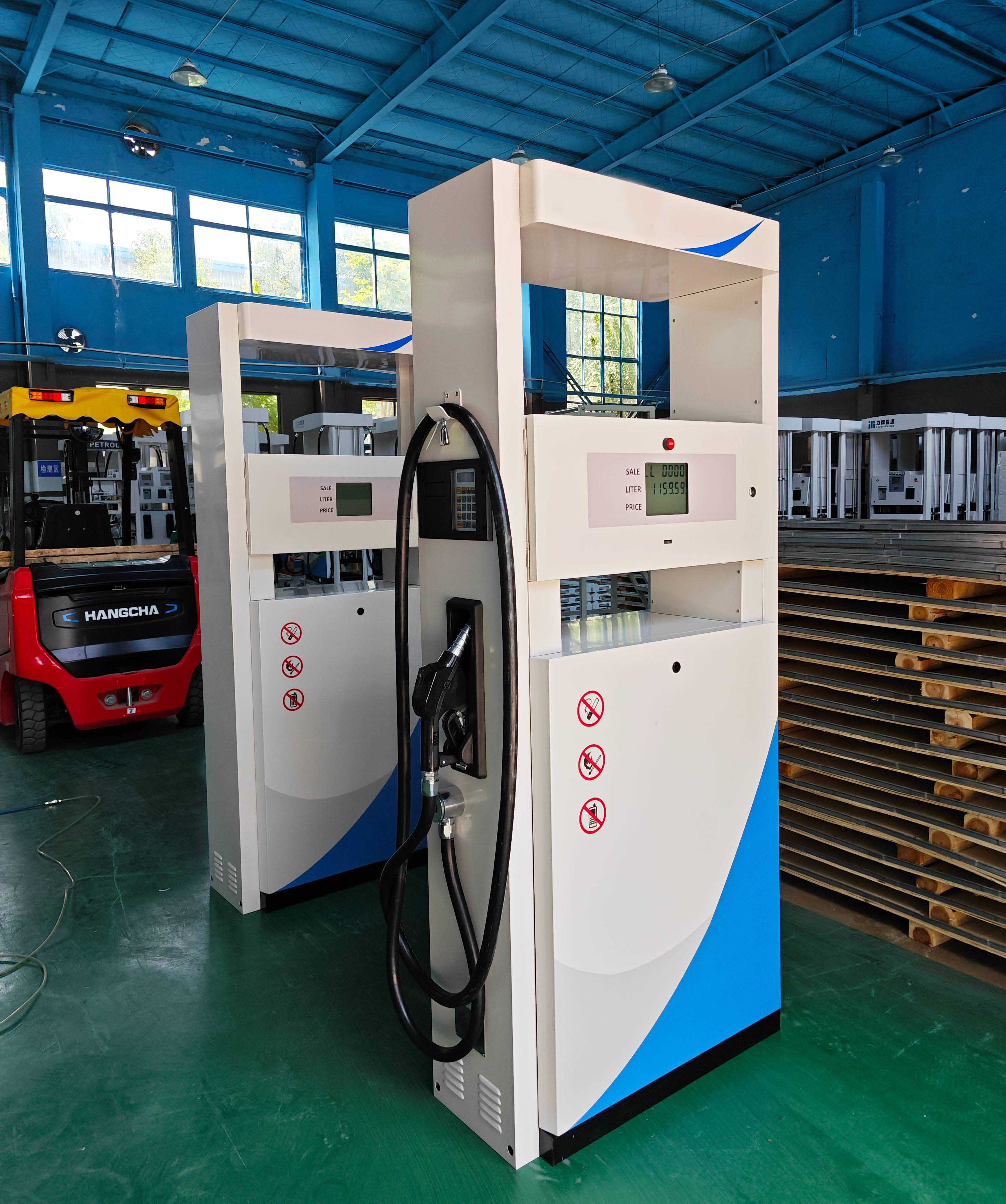

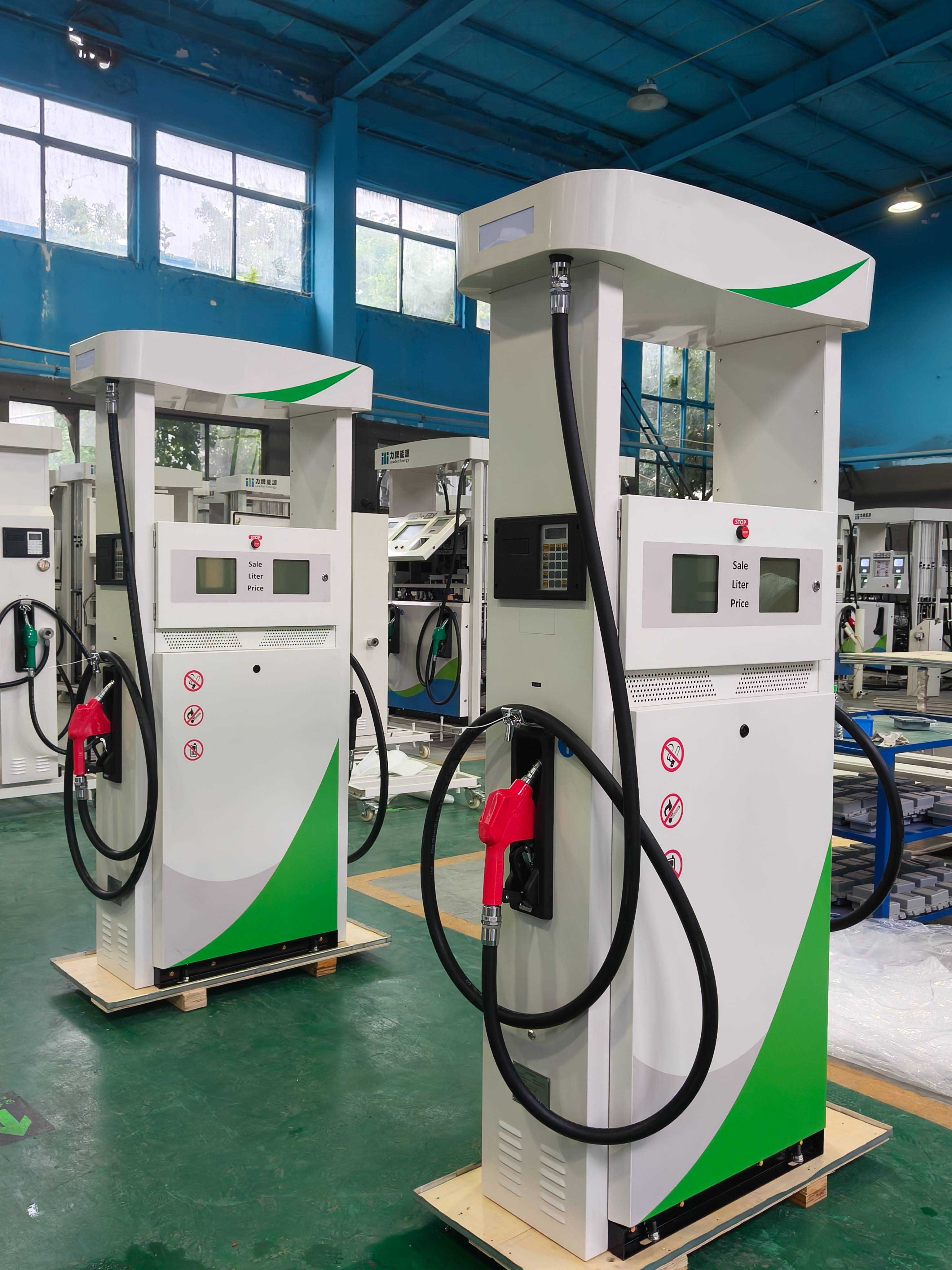

Gas Station Solution Fuel Dispenser Accessories

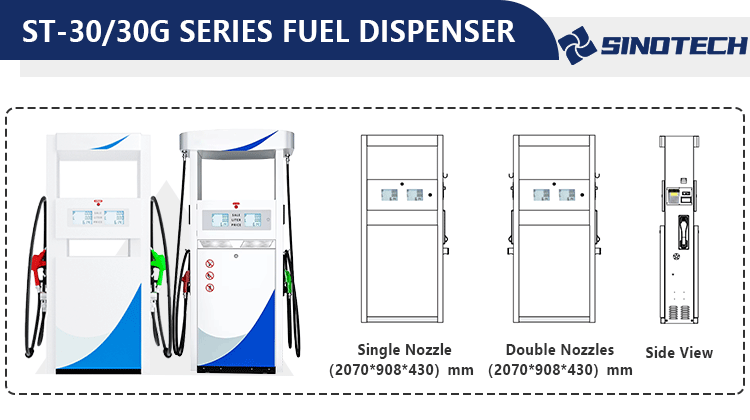

Fuel Dispenser Inner Structure
ST-30 Fuel Dispenser
Technical Specifications
Product Name ST-30 fuel dispenser
Color Customer Specifications
Flow Range 5-50L/min
Measuring Accuracy ±0.3%
Min. Measured 5L
Noise ≤70dB(A)
Inlet Vacuum ≥54KPa
Outlet pressure ≤0.3MPa
Applicable Media Gasoline, Diesel, Kerosene, etc
Unit Price Range 0-99.99 price/L
Single Count Range Volume: 0-9996.00 L
Amount: 0-9996.00 Price
Cumulative Count Range Volume: 0-99999999.99 L
Amount: 0-99999999.99 Price
Power Supply AC 380v/220V; 60Hz/50Hz
Rated Power of Motor 750W or 1000W
Ambient Temperature -35°~+55°

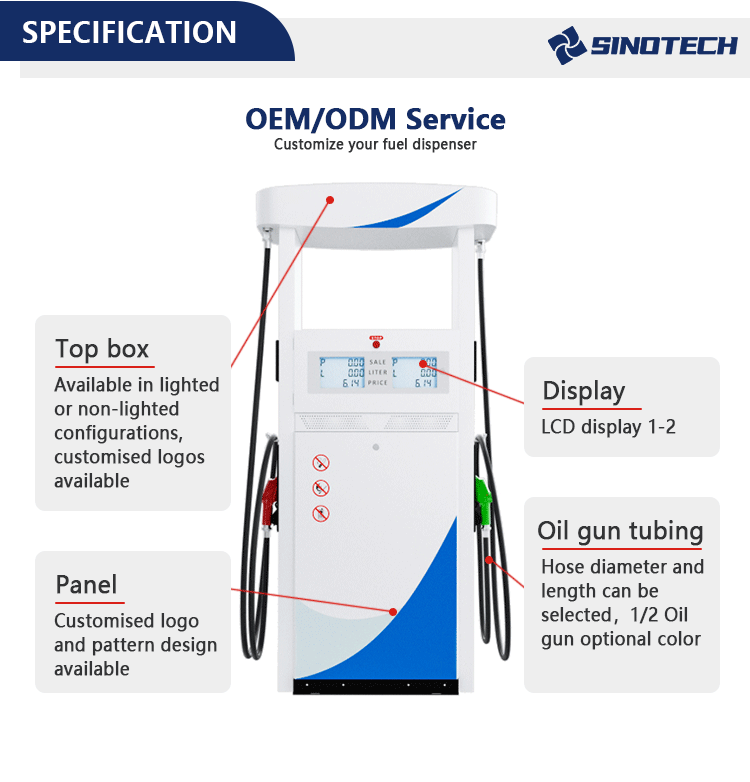

Fuel Dispenser Setup
Product Advantage

The highlight of ST-30 fuel dispenser is that it can be customized, with a variety of options to choose from.

  • Model available for 1 nozzle, 2 nozzle
  • Tatsuno, Tokheim, Bennett, three high-quality pumps and flow meters to meet your needs.
  • All functions can be customized according to your requirements.
  • Package: Hard carton and Wooden case for your option

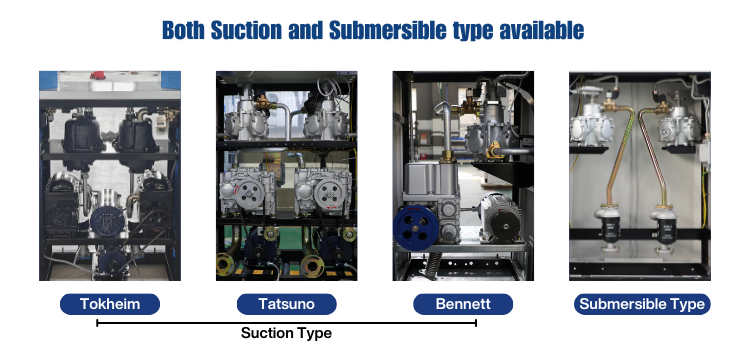

Pump Structure Option

We support complete customization to ensure the equipment meets your business needs:

  • Tatsuno type Pump / Tokheim type Pump / Bennett type Pump
  • Both suction and submersible options
  • Customizable configurations based on specific site requirements

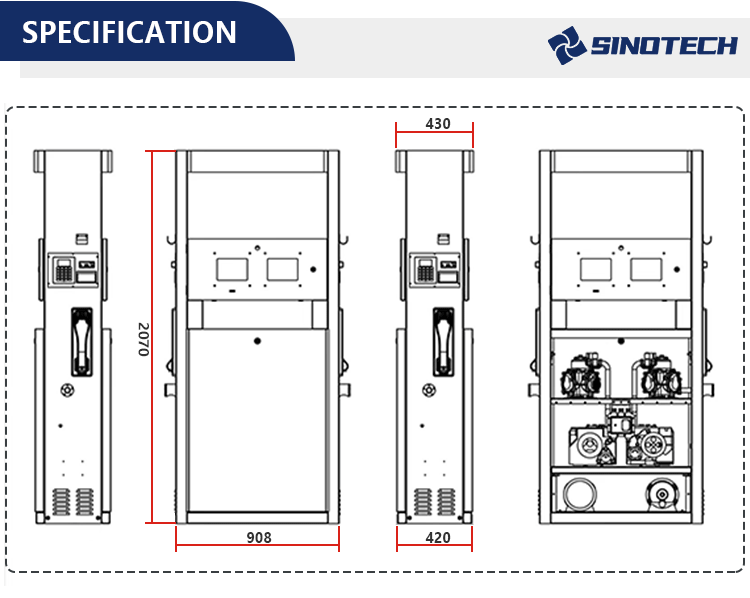

Component View A Component View B
Model Configurations
Model Pump Nozzle Oil Product Display Hose Size
ST30Z111 Suction Type 1 1 2 3/4"
ST30Z212 Suction Type 2 1 4 3/4"
ST30Z222 Suction Type 2 2 4 3/4"
ST30Q111 Submersible Type 1 1 2 3/4"
ST30Q212 Submersible Type 2 1 4 3/4"
ST30Q222 Submersible Type 2 2 4 3/4"
ST30GZ111 Suction Type 1 1 2 3/4"
ST30GZ212 Suction Type 2 1 4 3/4"
ST30GZ222 Suction Type 2 2 4 3/4"
ST30GQ111 Submersible Type 1 1 2 3/4"
ST30GQ212 Submersible Type 2 1 4 3/4"
ST30GQ222 Submersible Type 2 2 4 3/4"
Please kindly supply us with the following information when sending us an inquiry:
  1. Voltage of the motor you need, 220V or 380V?
  2. How many types of fuel need to be fueling? 1 product, 2 products, or 3 products.
  3. With how many nozzles?
  4. Would you like Tatsuno, Tokheim, or Bennett flow meter and pump?
  5. Keyboard: membrane or metal
  6. Printer: Yes or No
  7. How many units you may need?

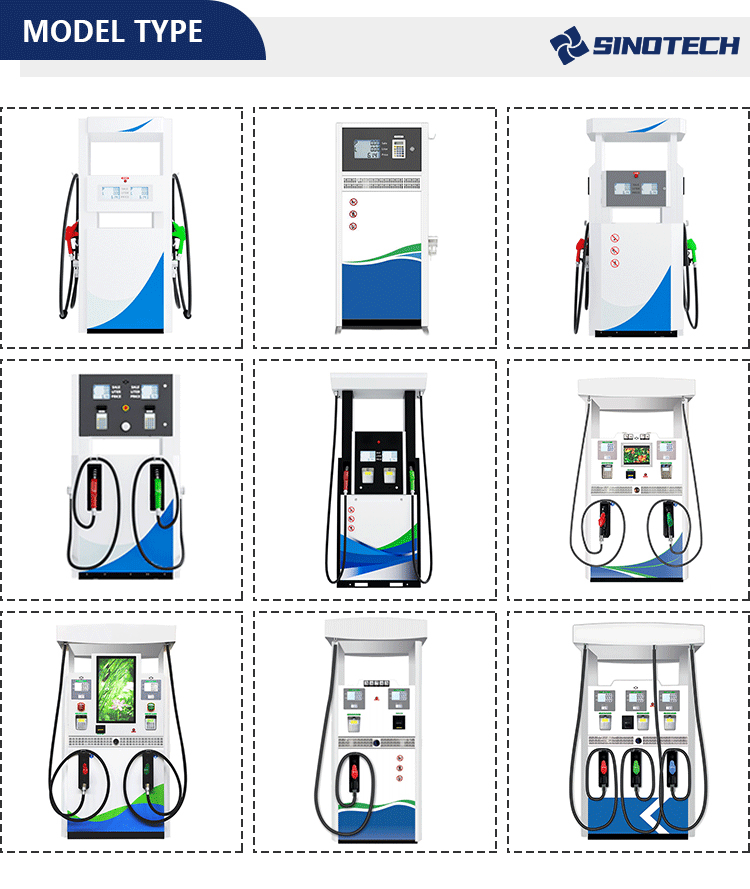

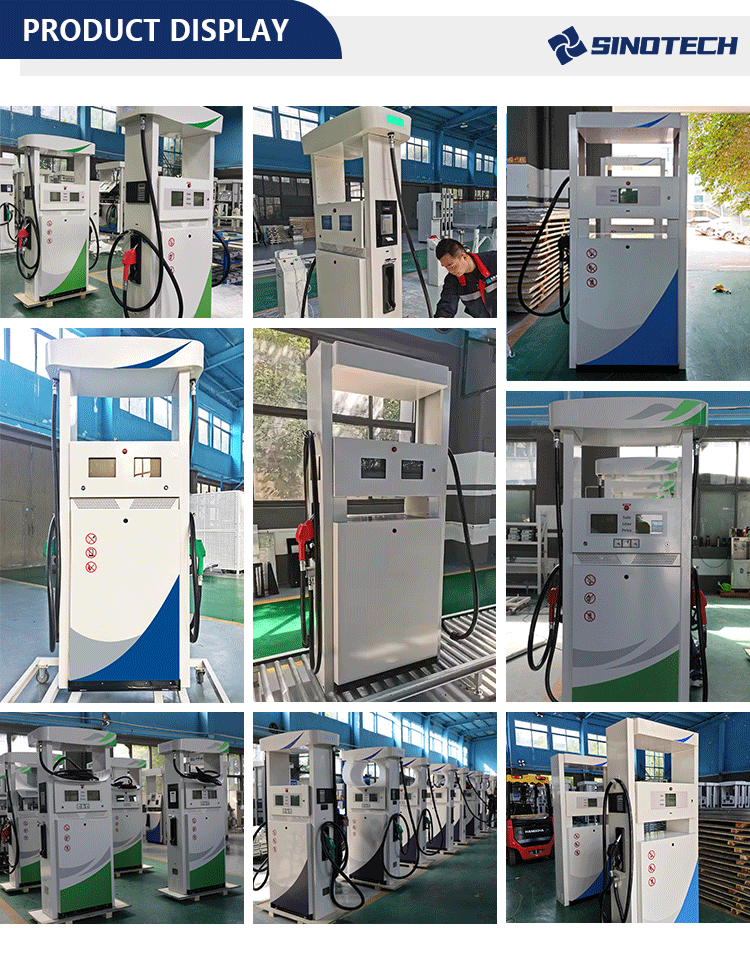

Details View A Details View B

We have a wide range of fuel dispensers and a complete line of accessories to recommend the best partner for your needs. All fuel dispensers can be customized.

Frequently Asked Questions
Q Are you a trading company or a manufacturer?
We are a professional manufacturer with more than 20 years history.
Q What kind of products do you produce?
We produce professional fuel dispensers, mobile fuel dispensers, automatic tank gauge systems, pumps, flow meters, nozzles, pipes and other equipment for gas station construction.
Q Are your fuel dispensers easy to operate?
Yes, each fuel dispenser is equipped with an instruction manual to help guide you to the correct operation and future maintenance.
Q Can customized requirements be accepted?
Sure. We can customize the fuel dispenser and its accessories according to your needs and make logos for you. We have provided customized service for 120+ customers.
Q What can we do if we encounter problems and need technical advice?
Please tell us in detail about the problems you encounter, we have a professional technical team to help you solve the problems.
Q How long is the delivery time?
If we have stock, it usually takes 7-14 days. If you need customized products, it will take 15-25 days, depending on the situation.
