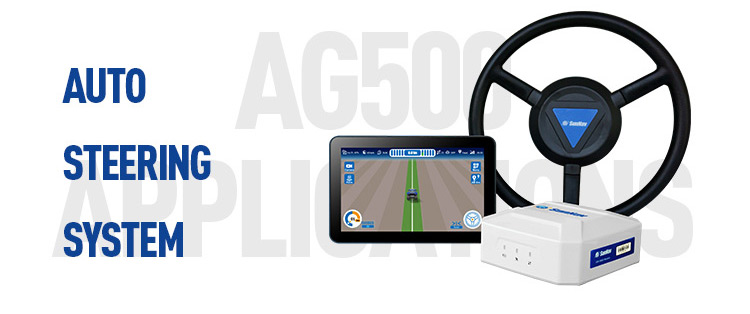

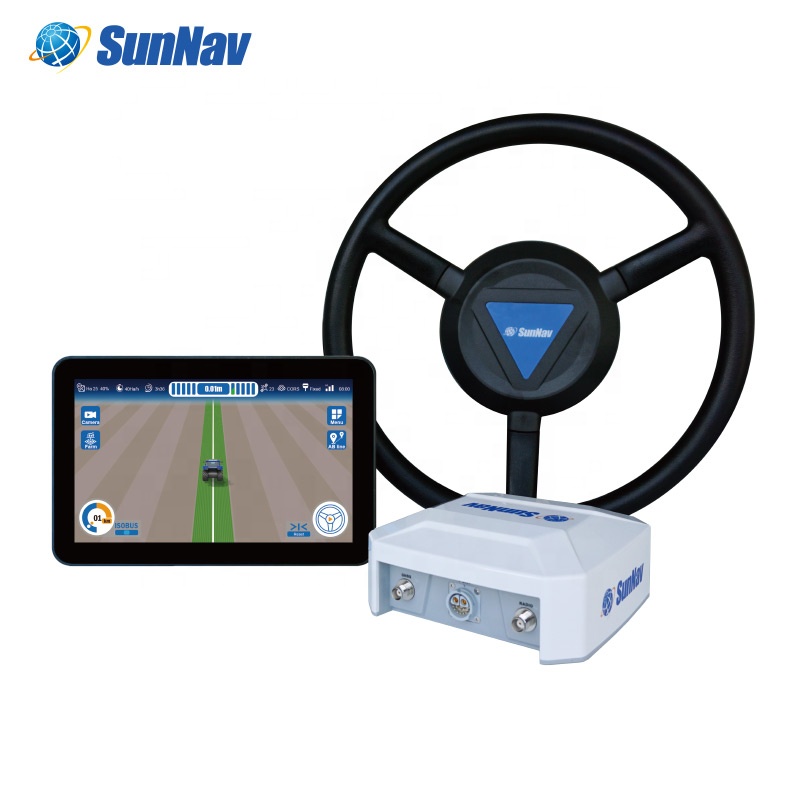

High-performance tractor auto pilot system designed for precision agriculture.

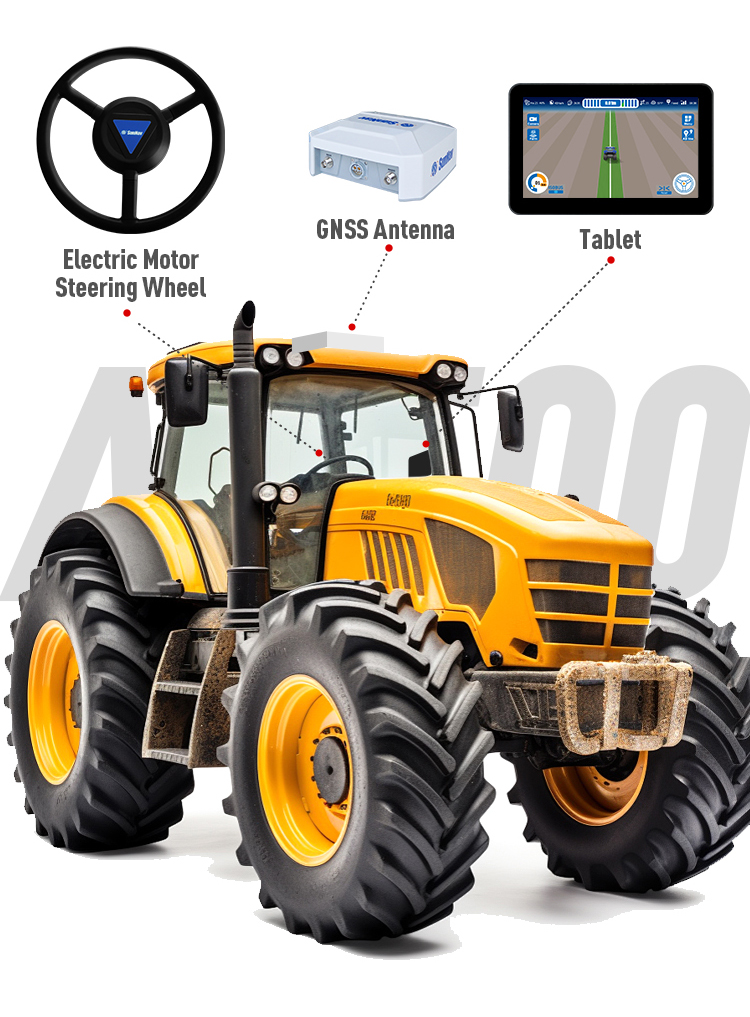

Auto-steering kit provides precision control for tractors, sprayers, swathers, and combines.
Achieve up to 2cm work accuracy with RTK. High-speed support up to 20KM/H.

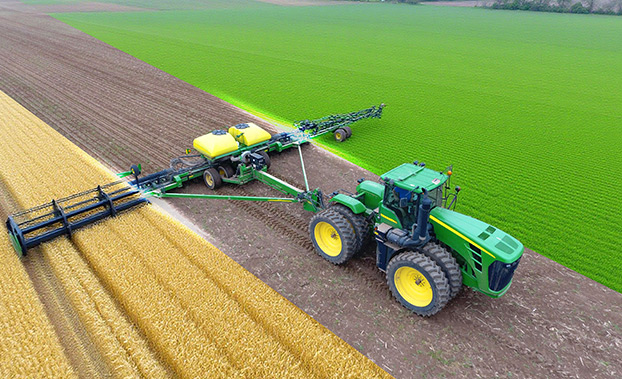

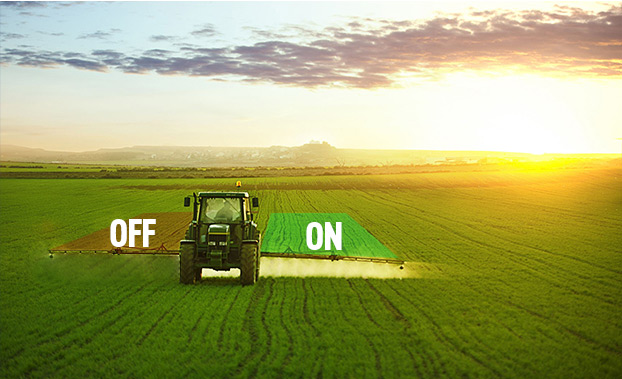

Supports UT, VT, TC-SC, and GEO. Compatible with spreaders, seeders, and fertilizers.

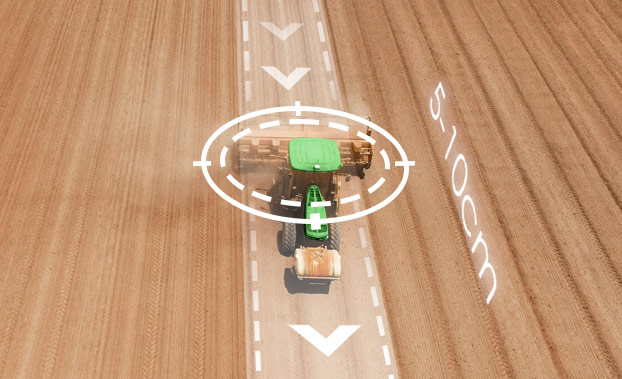

Satellite Based Precise Point Positioning (2.5cm) and Free PPP mode (5-15cm) without the need for network CORS or base stations.
Automatic turning at the end of rows and instant work line generation to save time and prevent crop crushing.

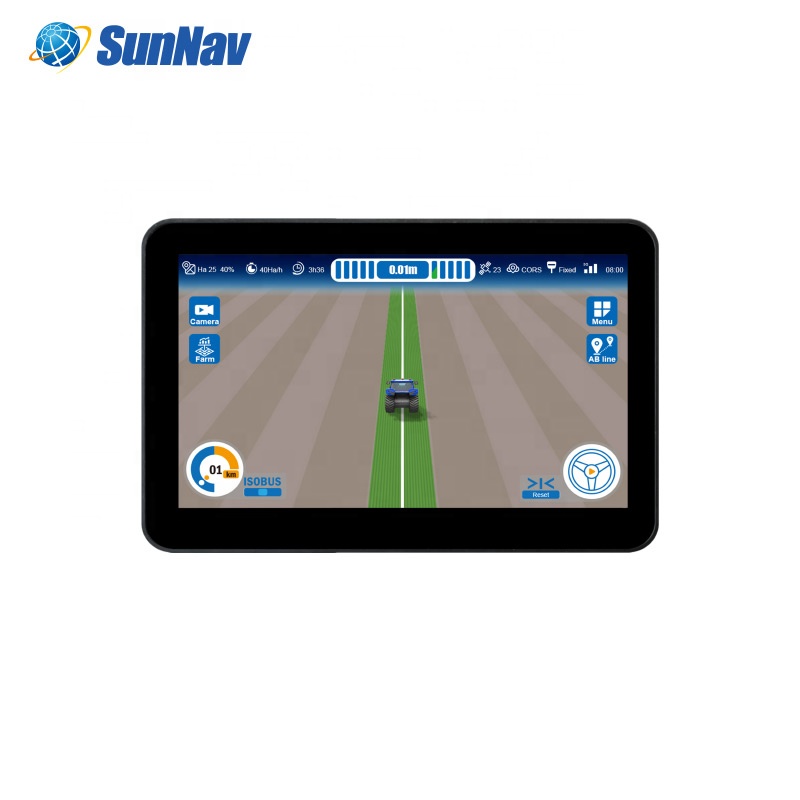

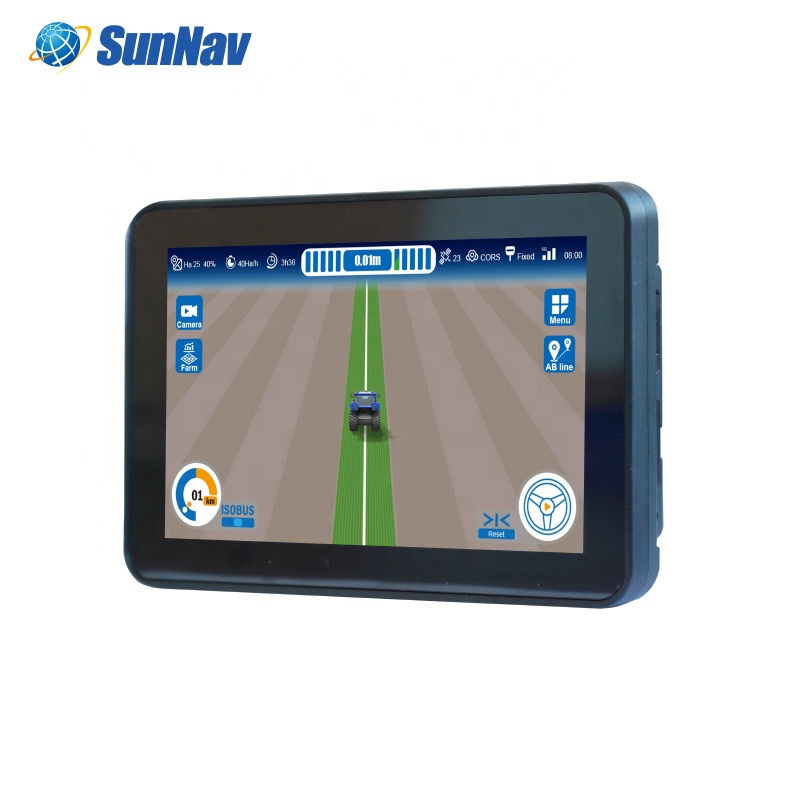

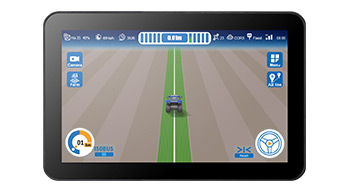

CONTROL TABLET |
System: Android 10, 10.1" Capacitive Touch Screen Communication: Wi-Fi (2.4G & 5G), 4G Network, Bluetooth 5.0, Dual CAN bus, RS232/RS485 Physical: IP67 Waterproof/Dustproof, Weight 1.7kg |

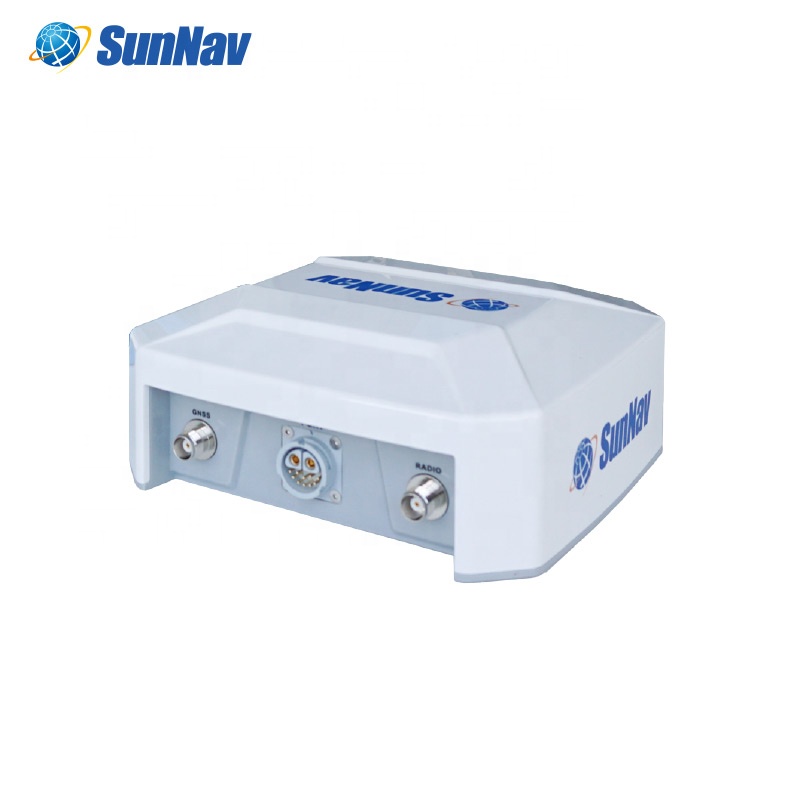

SMART GNSS RECEIVER |
Features: Built-in GNSS board, IMU sensor, Radio (optional), Antenna Signal: GPS L1/L2, BDS B1/B2, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2/L5 Protection: IP67, DC 9~36V input |

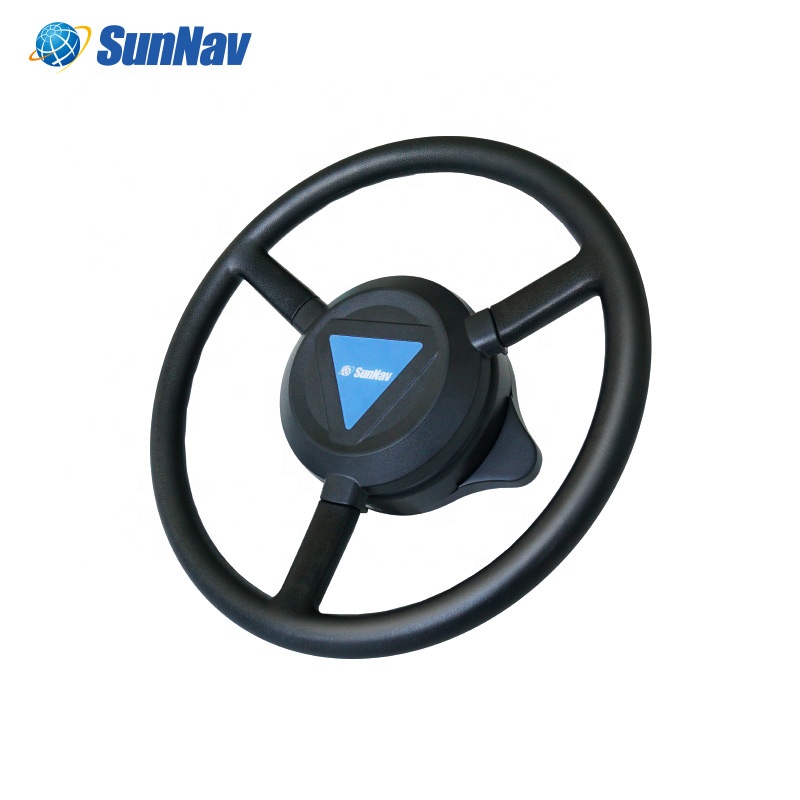

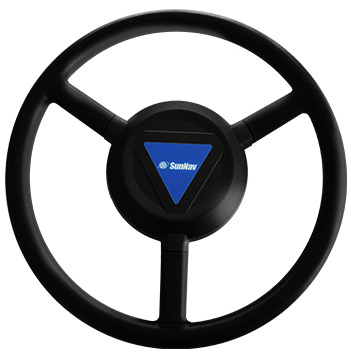

HIGH-TORQUE MOTOR |
Performance: Rated 4Nm, Max 9Nm Torque Dimensions: 182mm diameter (motor), 410mm steering wheel Material: Aluminum alloy, Weight 2.9kg |
Versatile use in planting, spraying, and harvesting across various terrains.
