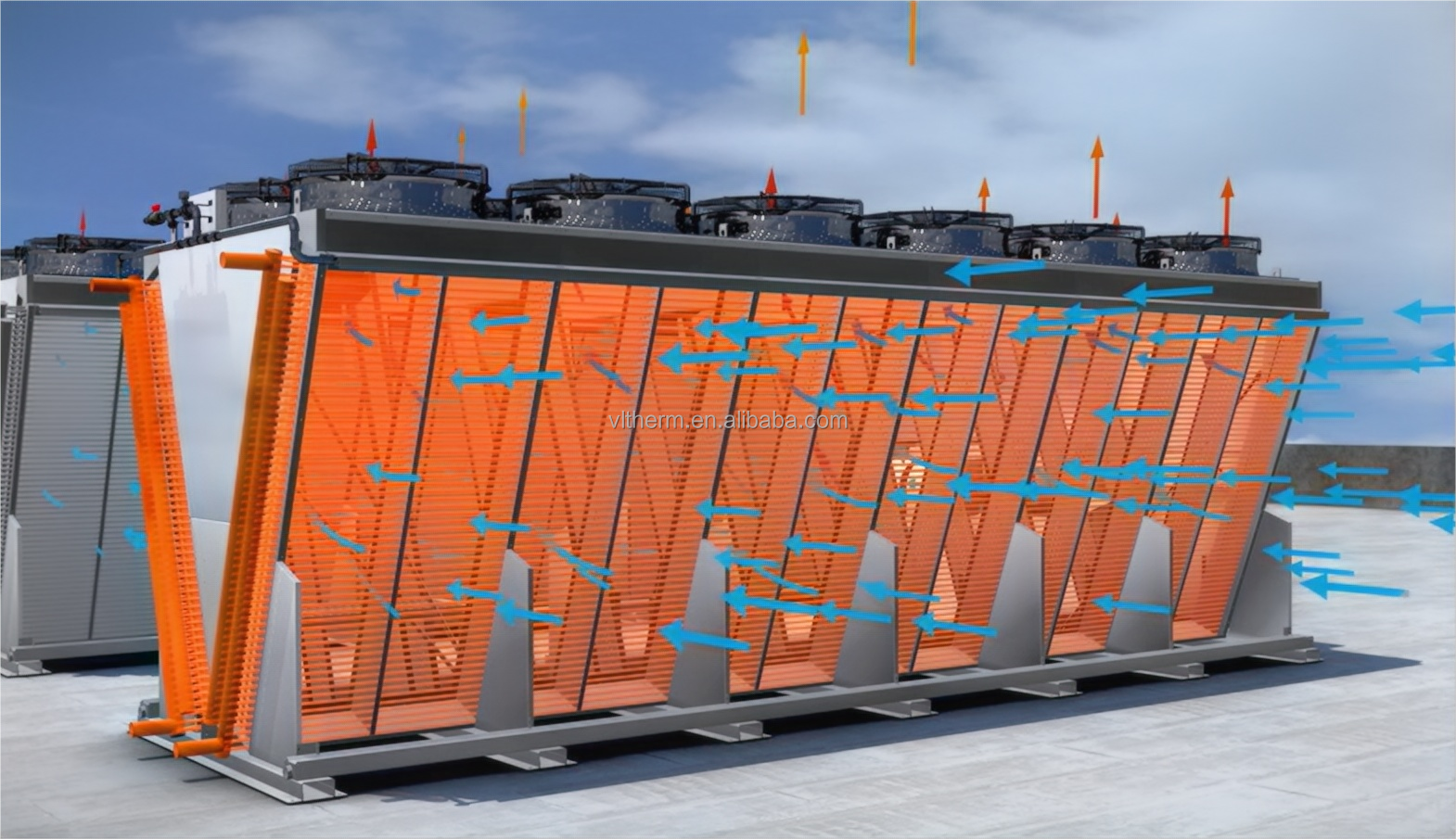

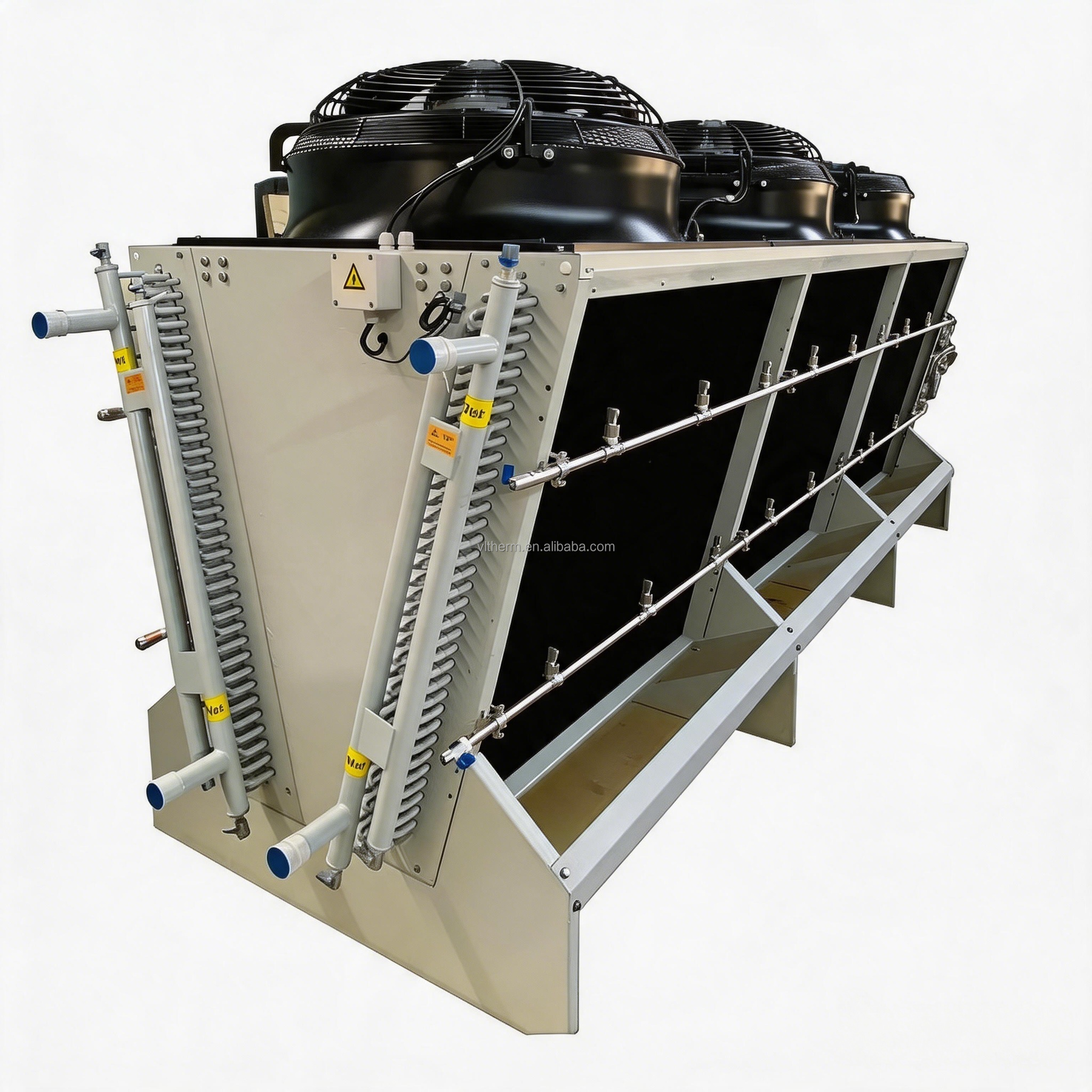

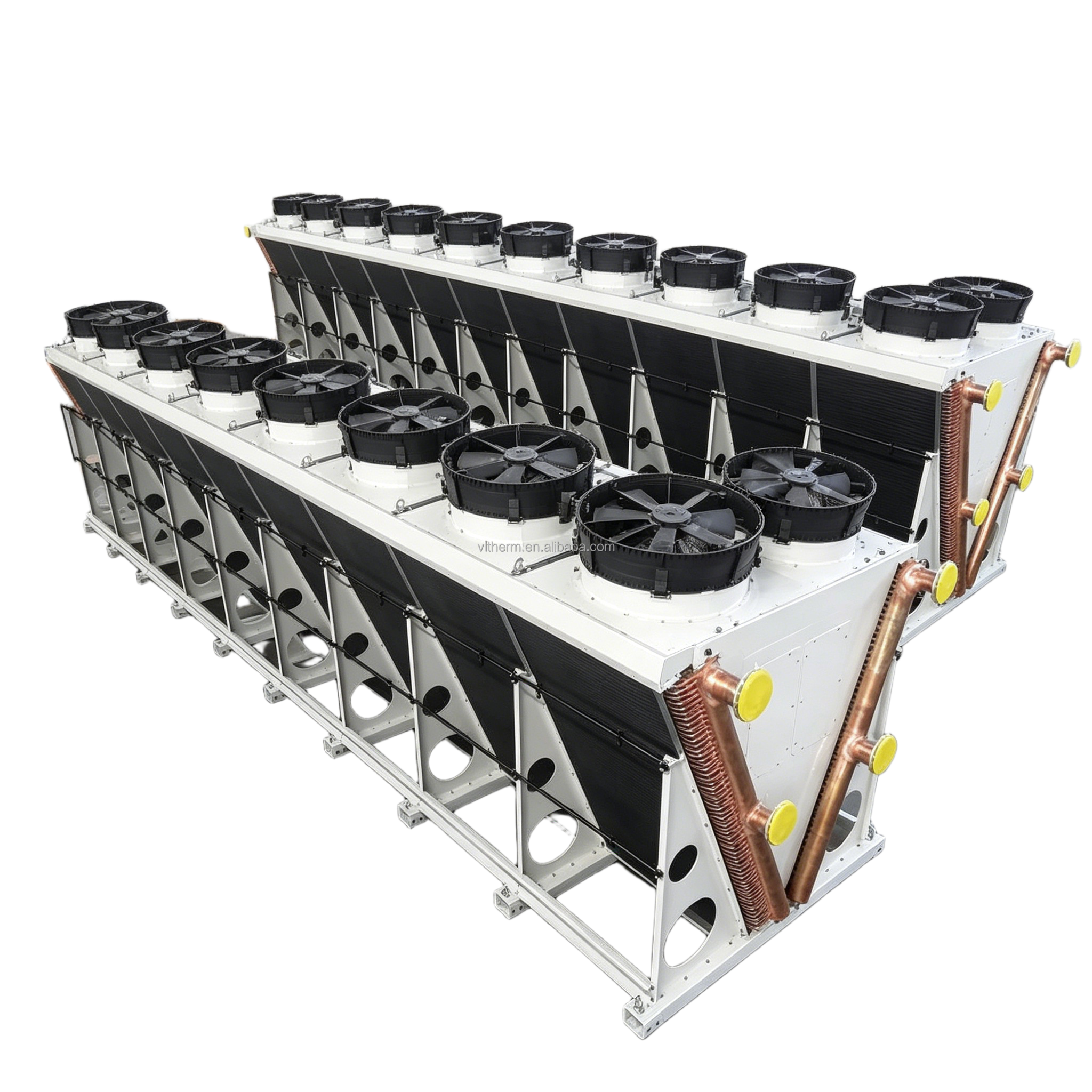

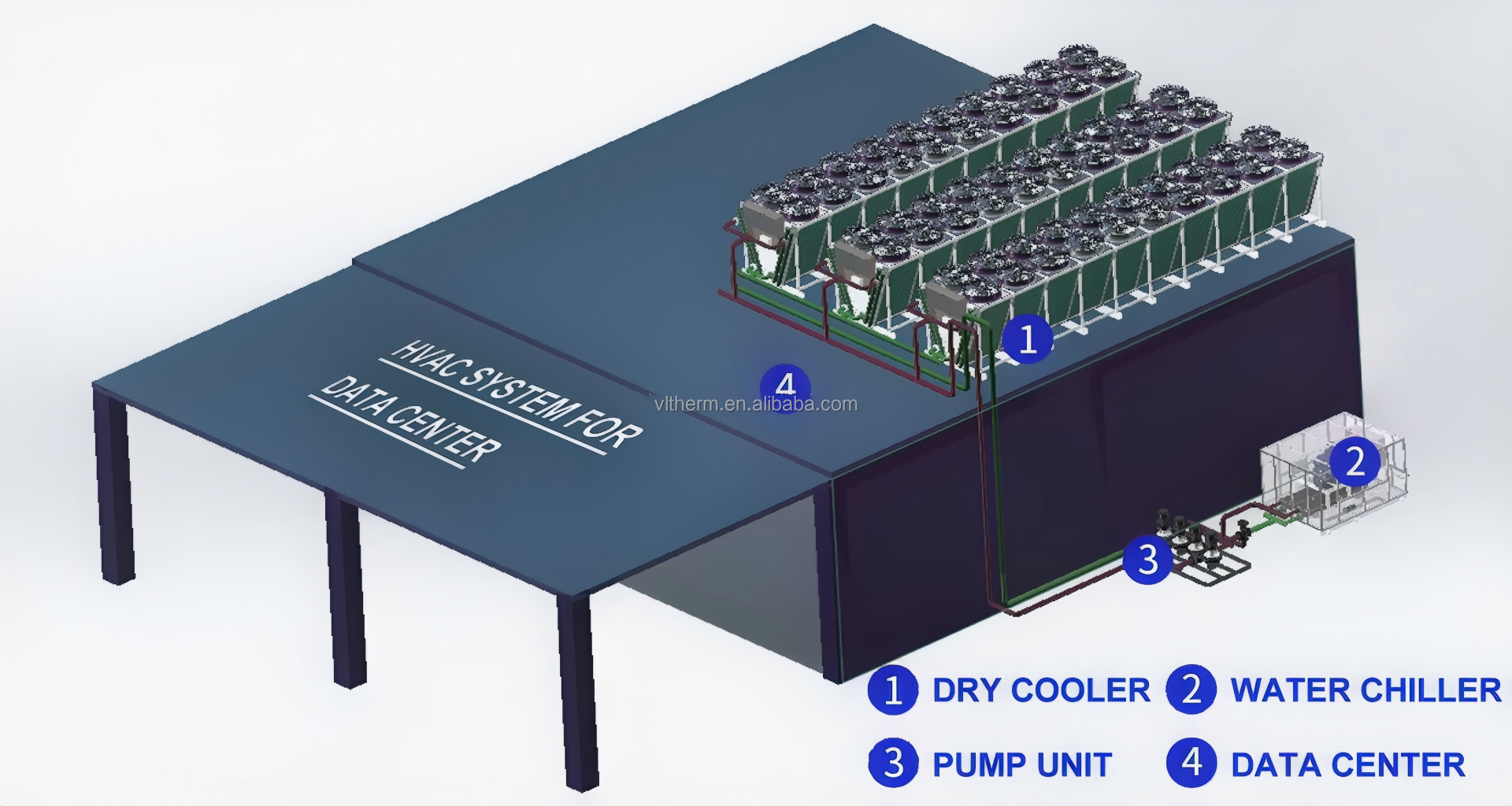

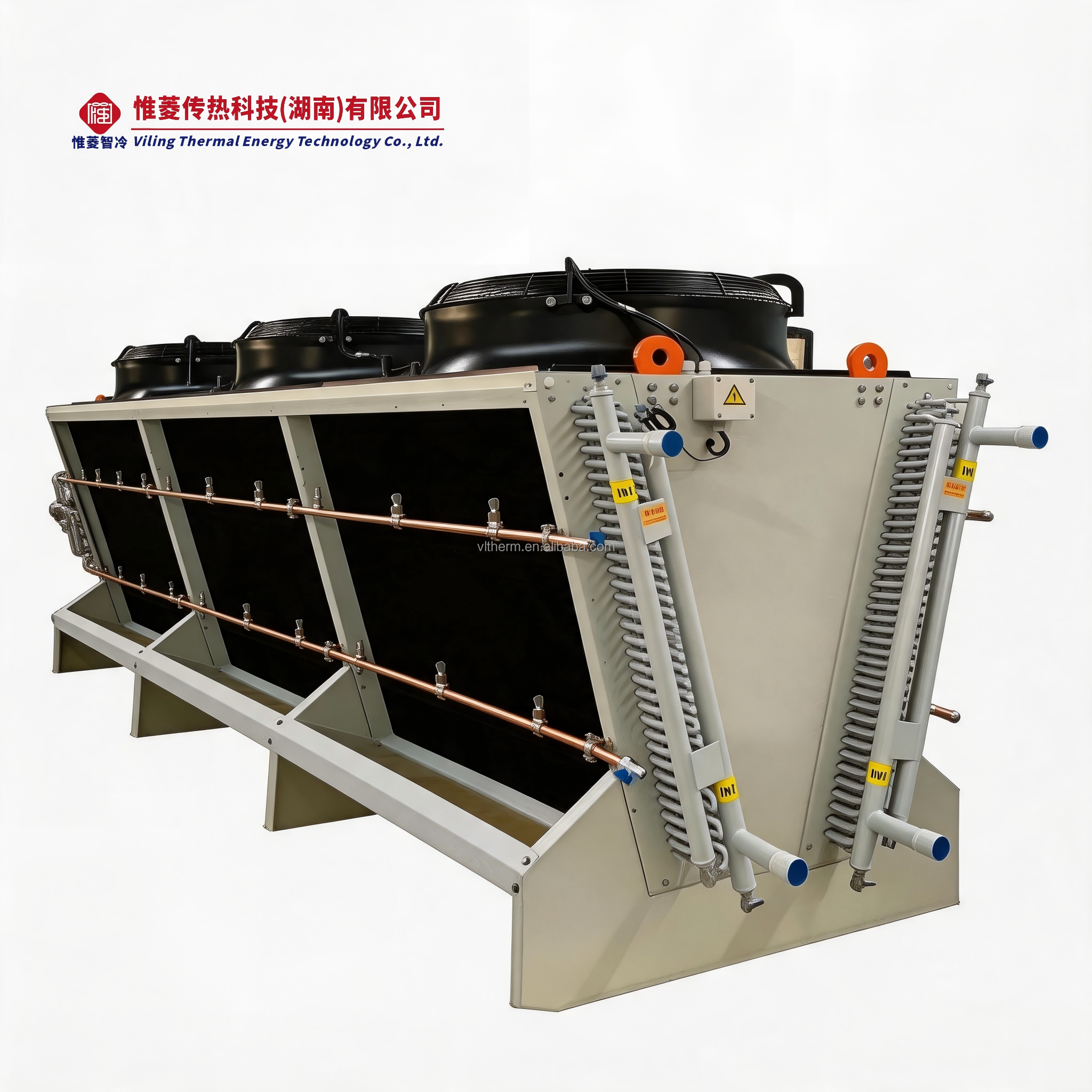

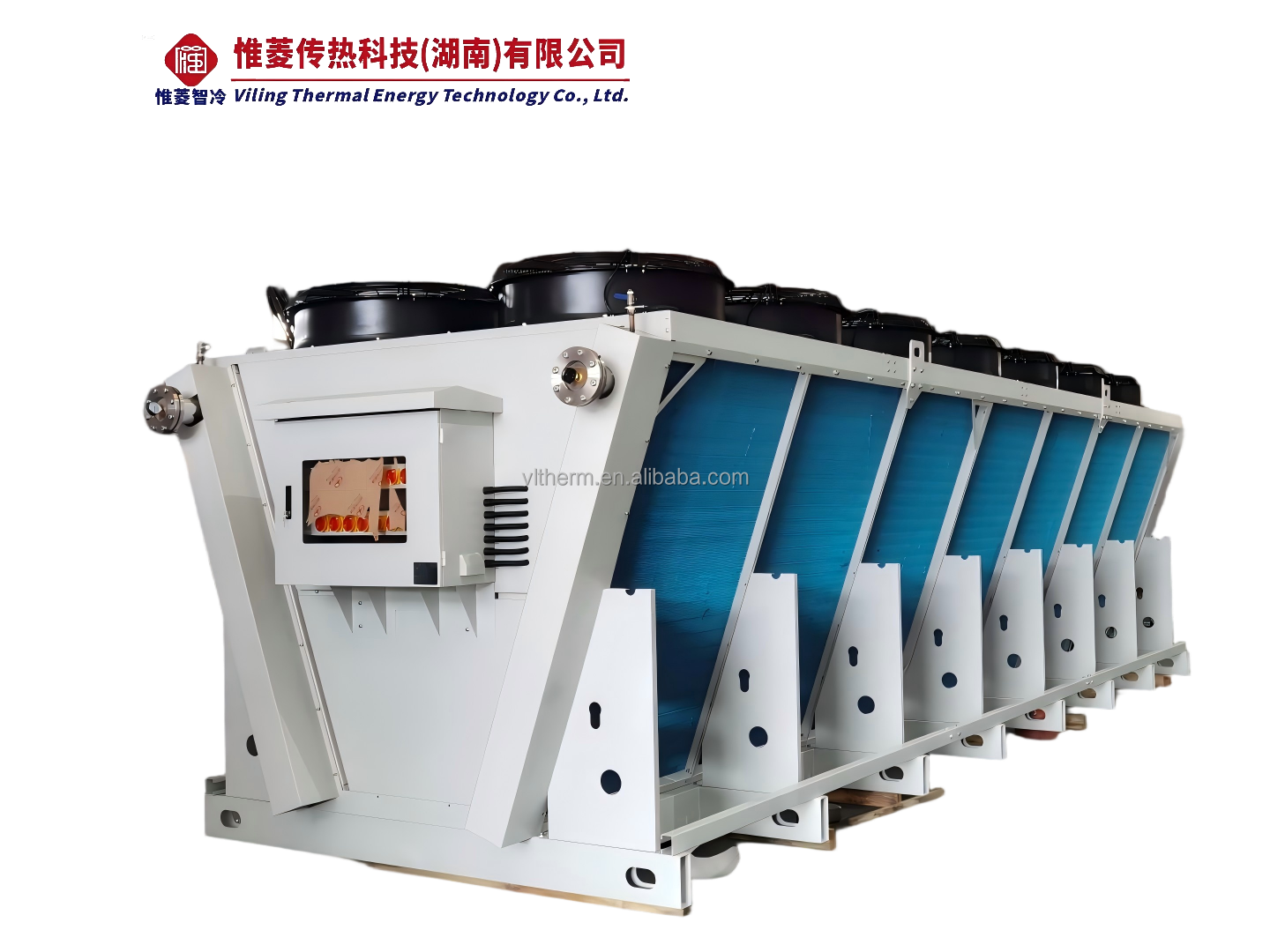

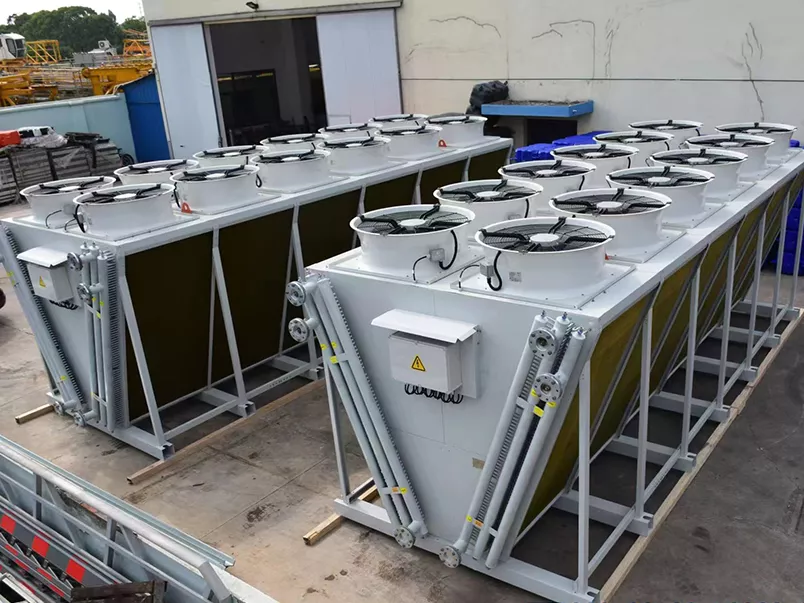

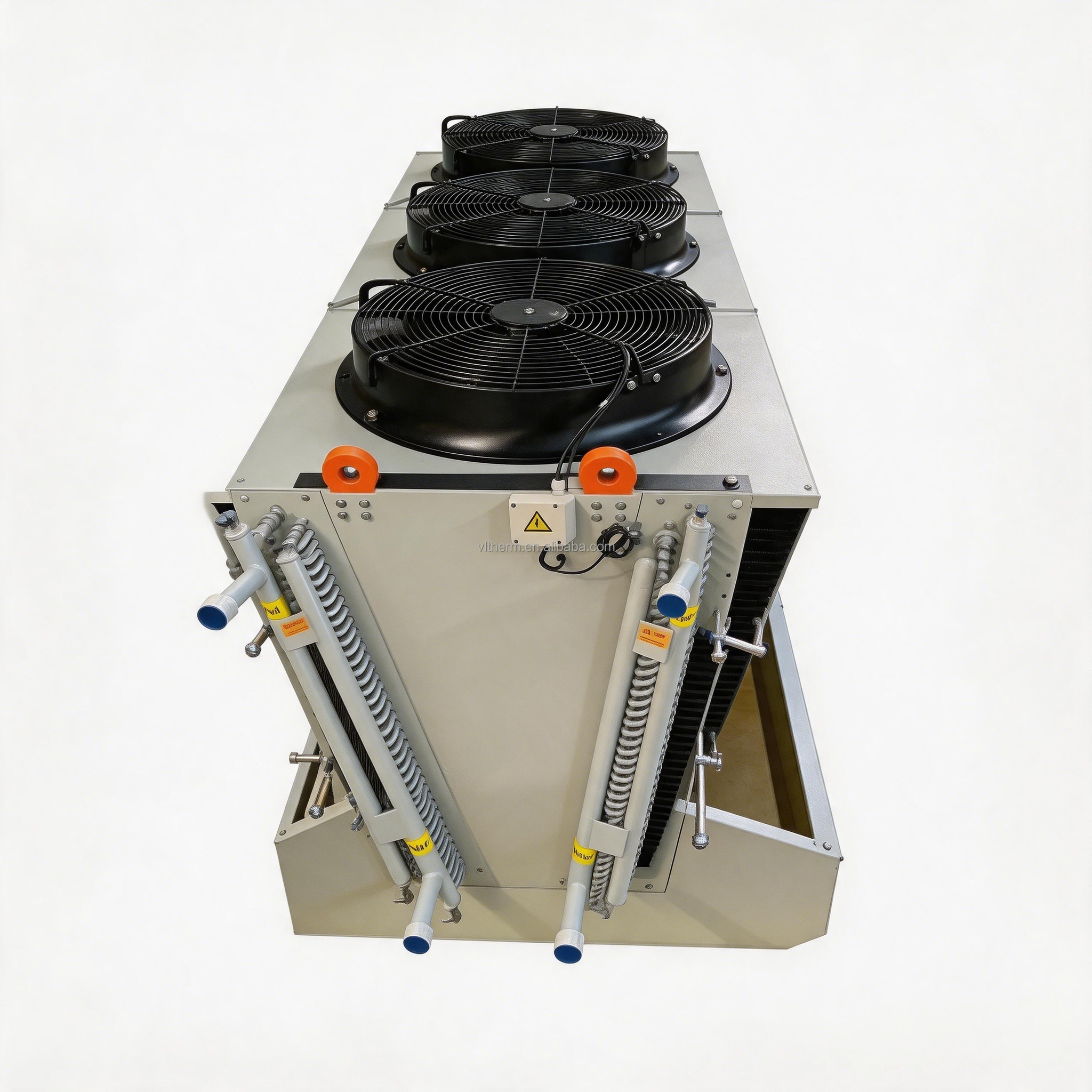

V-type dry air coolers are widely used industrial dry cooling solutions. Designed with a V-shaped finned tube coil, they maximize heat transfer area in a compact layout. By using ambient air to cool circulating fluids, these coolers achieve completely water-free operation, lower maintenance and high energy efficiency. Suitable for closed-loop cooling systems, data centers, industrial process cooling, air conditioning and refrigeration.
Heat Rejection Capacity: 1250 kW | Cooling Fluid: 30% Propylene Glycol Solution
Fluid Inlet/Outlet: 58°C / 48°C | Flow Rate: 1100 GPM
Design Ambient Air: 52°C (Extreme Summer Condition)
Material: Copper Tube with Black Epoxy Coating (Desert environment resistance), Galvanized Steel Frame (G90 Standard).
Application: Biogas CHP Heat Recovery | Capacity: 2800 kW
Cooling Fluid: 45% Ethylene Glycol (-30°C Anti-freeze)
Inlet/Outlet Temp: 85°C / 65°C | Flow Rate: 480 m³/h
Material: Hot-dip Galvanized Frame, Hydrophilic Aluminum Fins.
Heat Exchange Capacity: 650 kW | Fluid: 30% Propylene Glycol
Inlet/Outlet Temp: 55°C / 45°C | Inlet Air Temp: 40°C

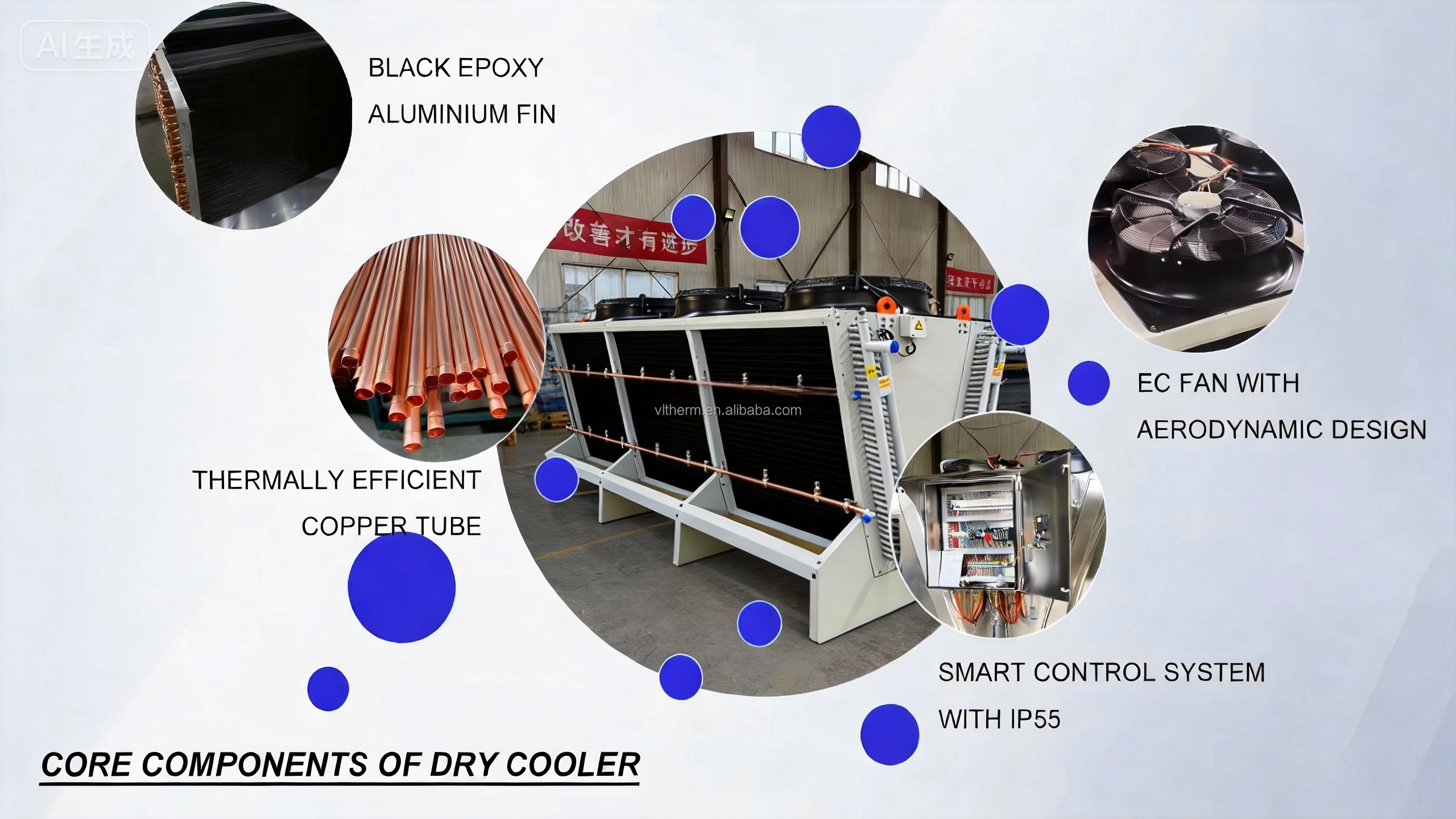

Material: Copper Tube, Epoxy Aluminium Fin, Galvanized Sheet Frame.

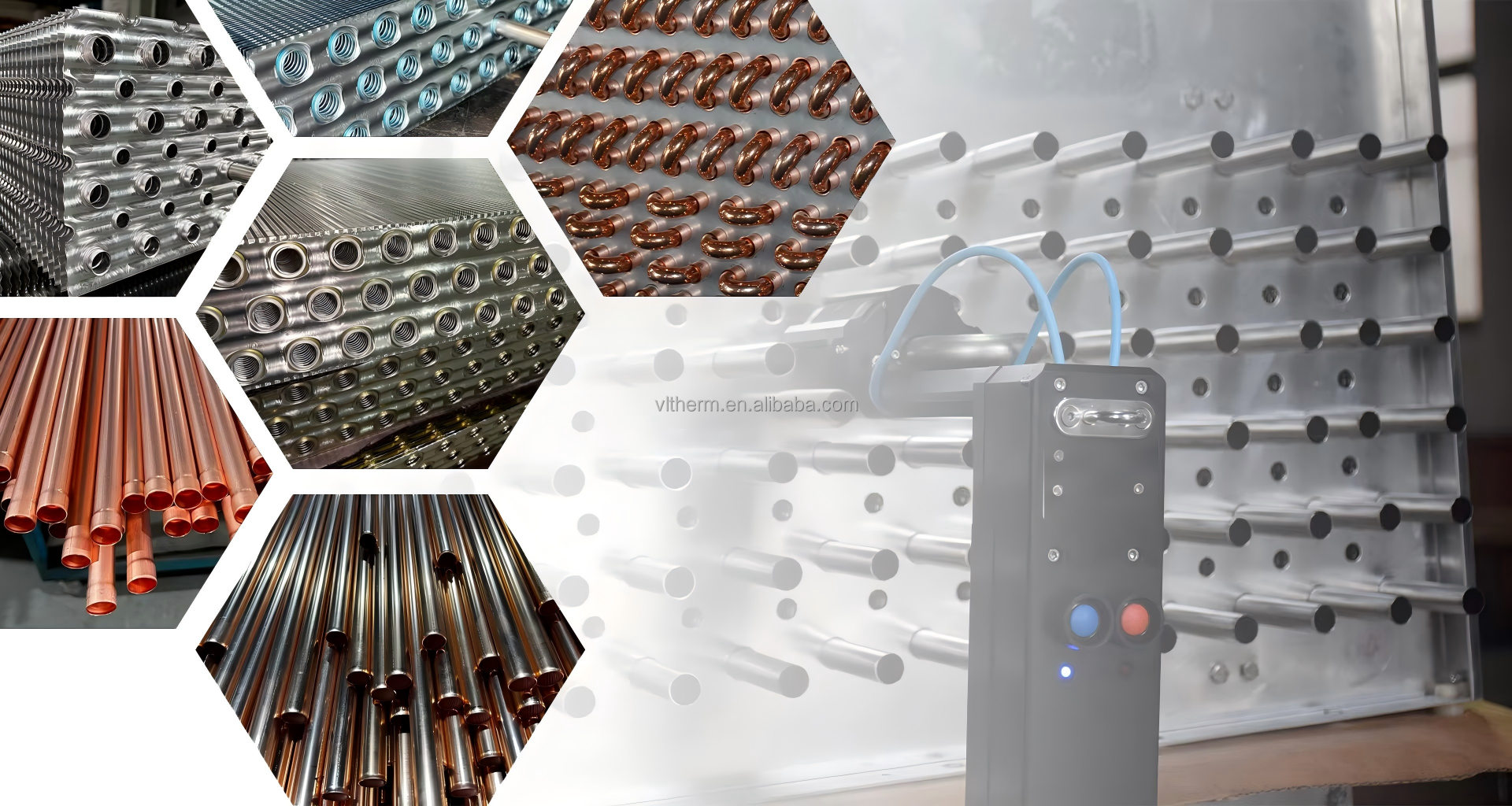

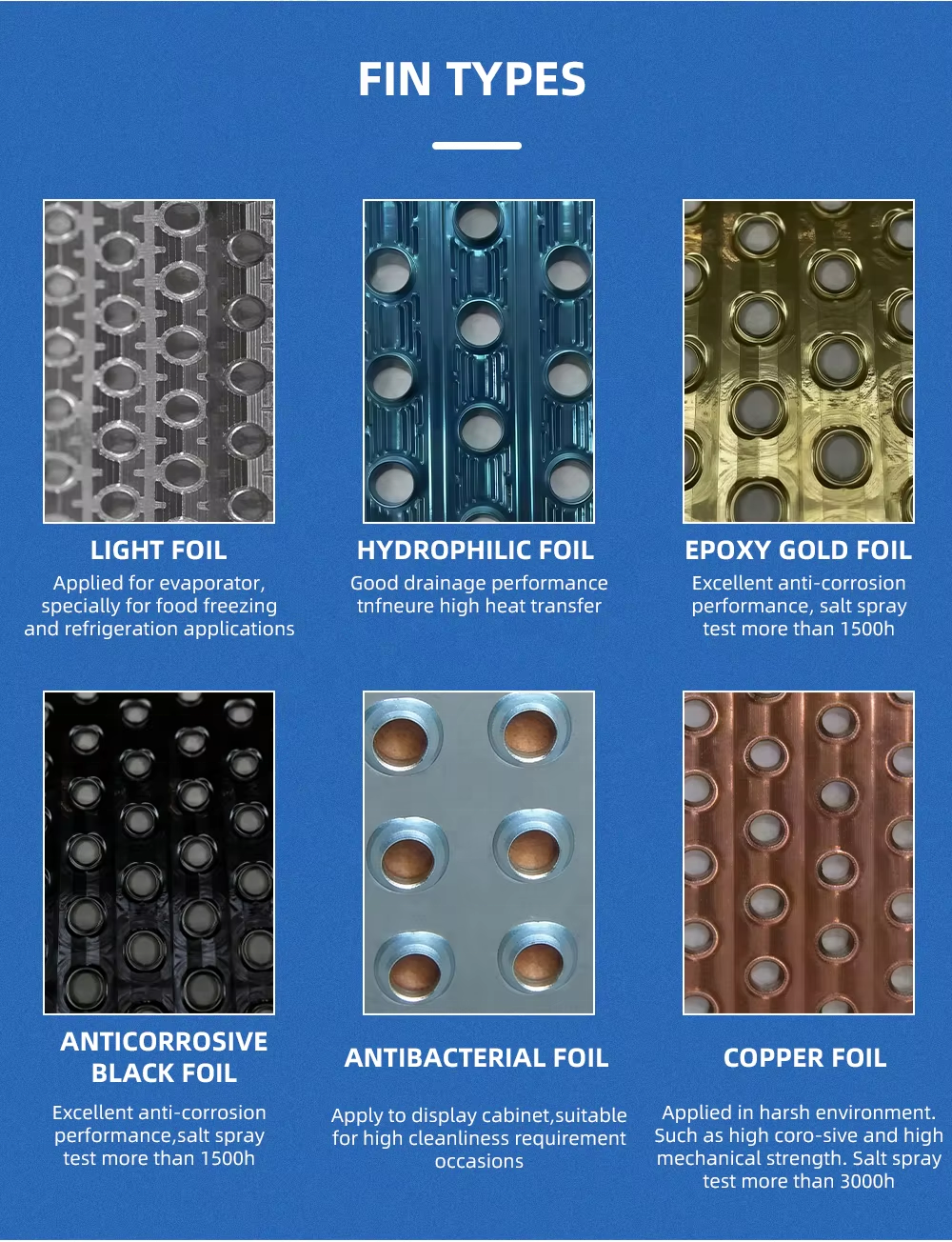

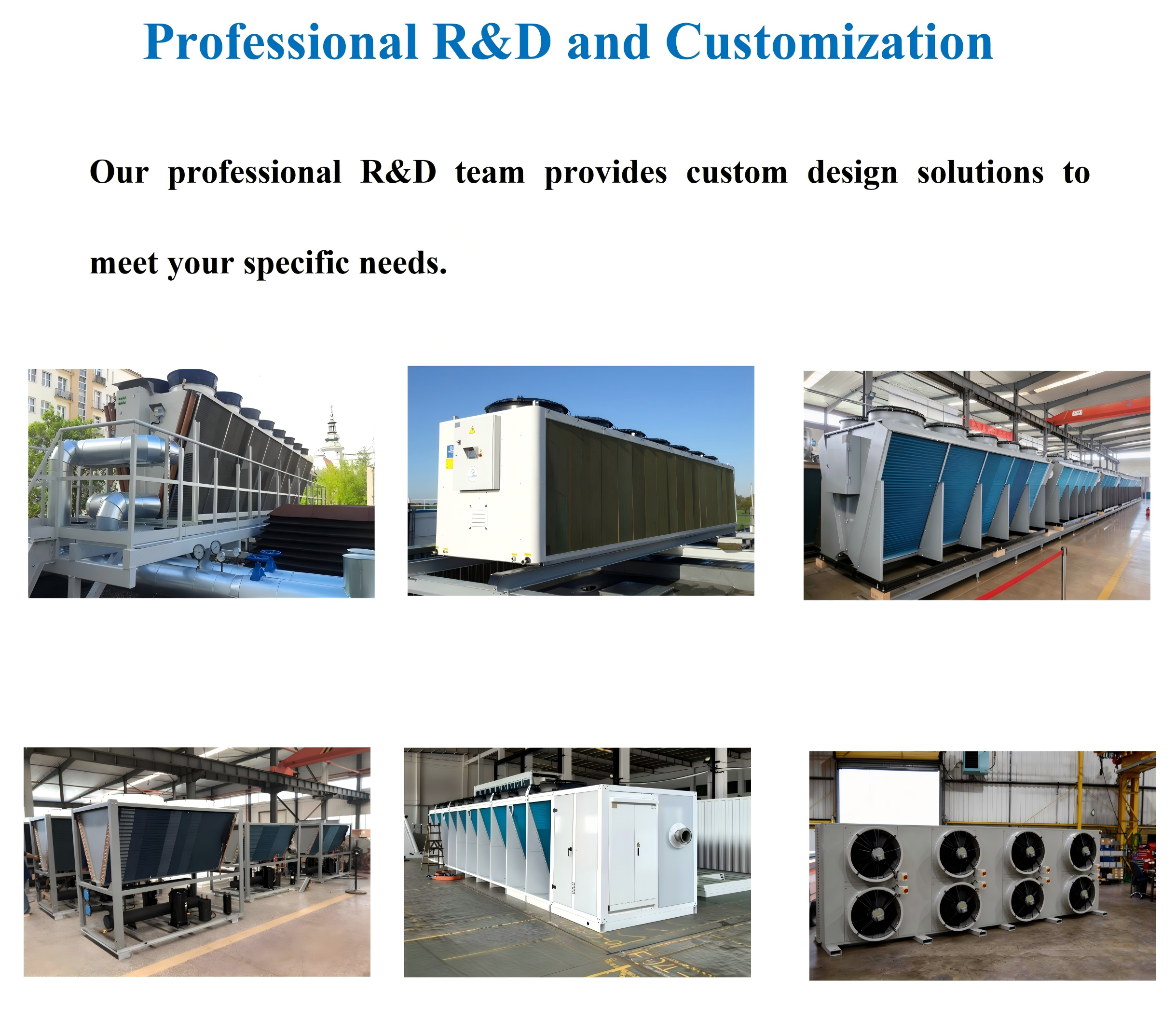

Various materials optional for tubes and fins to meet specific industrial requirements.
