Peltier water cooling system cooling chiller air cooler small cooling unit
Features
-
⚡ Long life achieve
Better seal structure of water resistance along with our GL module to absorb thermal stress.
-
⚡ Compact Design
Flexibility in product design and easy installation.
-
⚡ Update cooling performance
No screws to tighten result in better heat absorption and maximize its performance.
✓
Our GL structure module’s reliability is highly demonstrated by means of a rigorous polarity test.
✓
Easy to operate and lower assembly cost.
✓
The choice is yours, a radiating part including a radiating fin or a water-cooling jacket free choice of unit design.

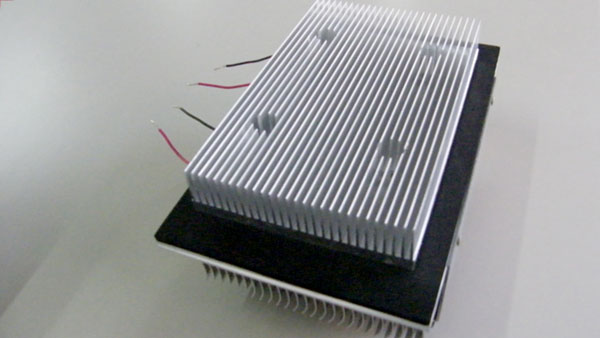

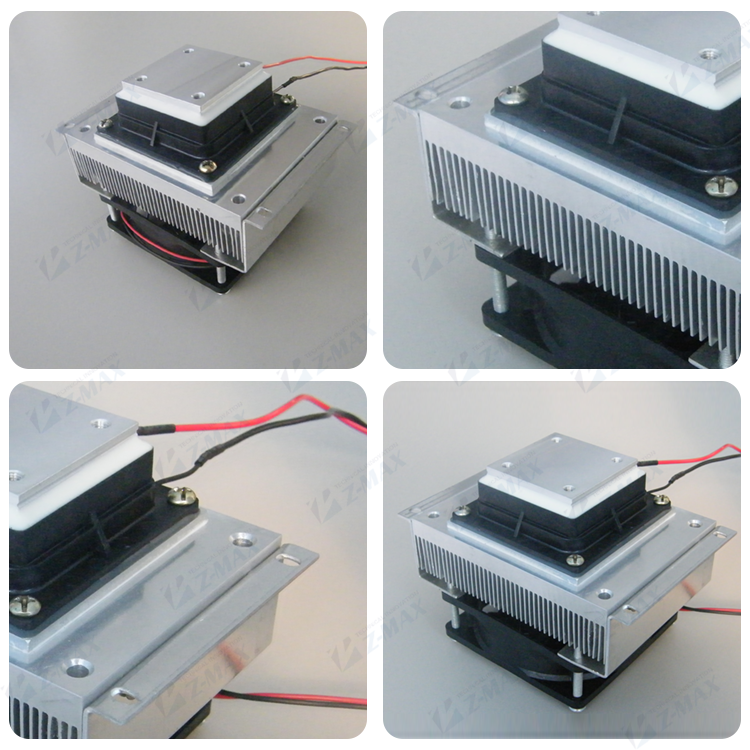

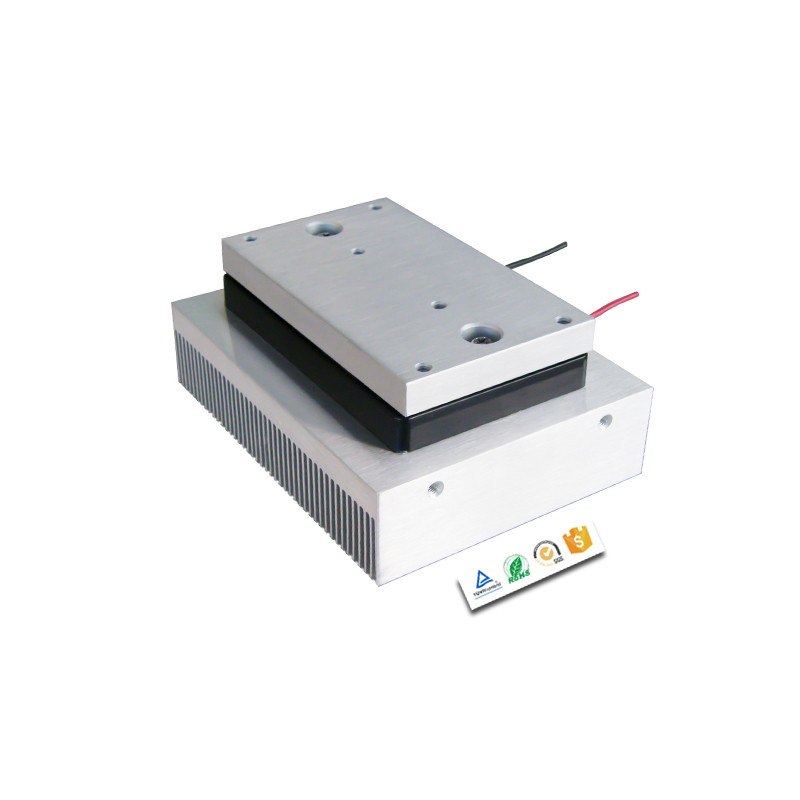

1. Product Pictures of Thermoelectric Cooler Peltier
2. Product Description of thermoelectric cooler peltier
▪
Free choice of configuration
▪
Since there are no moving parts, there is no vibration or noise
▪
With only a power cord, it is easy to handle
| Model number |
Imax(A) |
Vmax(V) |
Tmax(℃) |
Qmax(W) |
Tmax(℃) |
Qmax(W) |
Dimensions(mm) |
| Th=27℃ |
Th=50℃ |
L |
W |
H |
| TEC1-3502S2 |
3.0 |
4.2V |
68 |
7 |
75 |
8 |
30 |
15 |
4.7 |
| TEC1-1703 |
3.5 |
2.1 |
68 |
3.9 |
75 |
4.3 |
15 |
15 |
| TEC1-3103 |
3.8 |
7.0 |
7.7 |
20 |
20 |
| TEC1-3503 |
4.2 |
8.0 |
8.7 |
15 |
30 |
| TEC1-7103 |
8.6 |
16.0 |
17.8 |
30 |
30 |
| TEC1-12703 |
15.4 |
29.0 |
32.0 |
40 |
40 |
4.8 |
| TEC1-1704 |
4.0 |
2.1 |
68 |
4.2 |
75 |
4.6 |
15 |
15 |
4.7 |
| TEC1-3104 |
3.8 |
7.5 |
8.3 |
20 |
20 |
| TEC1-3504 |
4.2 |
8.4 |
9.2 |
15 |
30 |
| TEC1-4904 |
5.9 |
13.5 |
15.2 |
25 |
25 |
| TEC1-6304S1 |
7.6 |
17.6 |
19.4 |
20 |
40 |
4.3 |
| TEC1-7104 |
8.6 |
17.0 |
21.6 |
30 |
30 |
4.7 |
| TEC1-12704 |
15.4 |
32.0 |
35.2 |
40 |
40 |
| TEC1-1705 |
5.0 |
2.1 |
68 |
5.5 |
75 |
6.1 |
15 |
15 |
4.05 |
| TEC1-3105 |
3.8 |
10.0 |
11.1 |
20 |
20 |
| TEC1-3505 |
4.2 |
11.0 |
12.3 |
15 |
30 |
| TEC1-7105 |
8.6 |
23.0 |
25.7 |
30 |
30 |
| TEC1-12705 |
15.4 |
41.0 |
45.8 |
40 |
40 |
| TEC1-1706 |
6.0 |
2.1 |
68 |
7.1 |
75 |
7.9 |
15 |
15 |
4.05 |
| TEC1-3106 |
3.8 |
13.0 |
14.5 |
20 |
20 |
| TEC1-3506 |
4.2 |
14.5 |
16.1 |
15 |
30 |
| TEC1-7106 |
8.6 |
29.0 |
31.4 |
30 |
30 |
| TEC1-12706 |
15.4 |
53.0 |
59.3 |
40 |
40 |
| TEC1-1707 |
7.0 |
2.1 |
68 |
7.5 |
75 |
8.3 |
15 |
15 |
3.8 |
| TEC1-3107 |
3.8 |
13.6 |
15.1 |
20 |
20 |
| TEC1-3507 |
4.2 |
15.4 |
17.2 |
30 |
15 |
| TEC1-7107 |
8.6 |
31.0 |
34.6 |
|
30 |
| TEC1-12707 |
15.4 |
55.0 |
61.5 |
40 |
40 |
| TEC1-1708 |
8.5 |
2.1 |
68 |
10.0 |
75 |
11.1 |
15 |
15 |
3.6 |
| TEC1-3108 |
3.8 |
18.0 |
20.1 |
20 |
20 |
| TEC1-12704 |
4.2 |
20.0 |
22.3 |
30 |
15 |
| TEC1-4908 |
5.9 |
29.1 |
32.0 |
24.7 |
24.7 |
| TEC1-6308 |
7.6 |
37.4 |
41.0 |
40 |
20 |
| TEC1-7108 |
8.6 |
42.0 |
46.9 |
30 |
30 |
| TEC1-12708 |
15.4 |
75.0 |
83.9 |
40 |
40 |
| TEC1-6310 |
10.5 |
7.6 |
68 |
46.3 |
75.0 |
51.0 |
40 |
20 |
3.1 |
| TEC1-7910 |
10.0 |
9.6 |
68 |
56.2 |
75.0 |
62.0 |
50 |
20 |
3.3 |
| TEC1-12710 |
10.5 |
15.4 |
68 |
93.0 |
75.0 |
102.0 |
40 |
40 |
3.4 |
| TEC1-12712 |
12.5 |
15.4 |
68 |
110 |
75 |
121 |
40 |
40 |
3.8 |
| TEC1-12715 |
15 |
15.4 |
68 |
130 |
75 |
145 |
50 |
50 |
3.75 |
| TEC1-19908 |
8.5 |
24.1 |
68 |
118 |
75 |
130 |
40 |
40 |
3.6 |
| TEC1-19910 |
10.5 |
24.1 |
68 |
148 |
75 |
163 |
40 |
40 |
3.4 |
| TEC1-19913 |
13 |
24.1 |
68 |
200 |
75 |
224 |
50 |
50 |
3.5 |

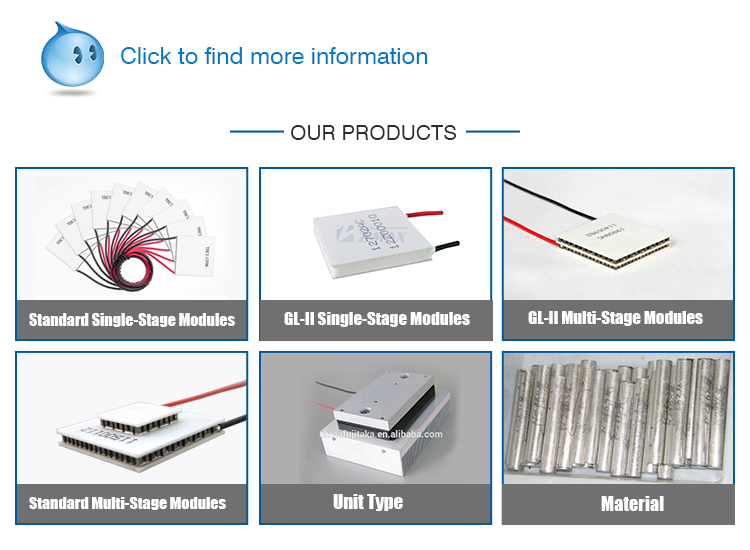

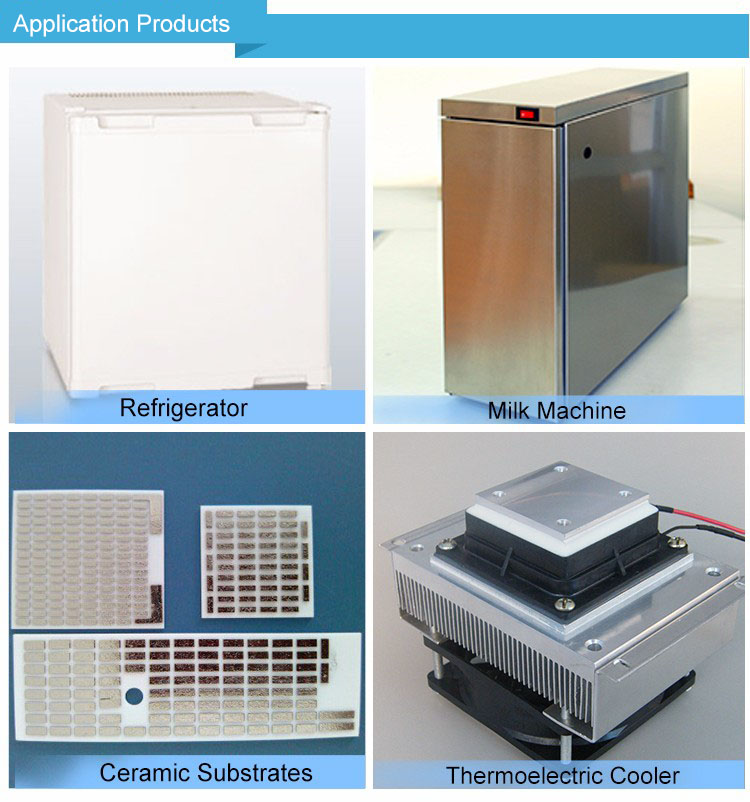

3. Related Products
Packaging & Delivery
Our Advantages & Capability
Exhibitions
Inquiry & Partnership
We are looking forward to establishing a long-term partnership with you!
Send an inquiry now!
Frequently Asked Questions (FAQ)
1. What makes the GL module structure better in terms of longevity?
The GL module structure features a superior water-resistant seal structure that effectively absorbs thermal stress, leading to a significantly longer life and higher reliability under rigorous polarity conditions.
2. Does the thermoelectric Peltier cooling unit generate noise or vibration?
No. Because the thermoelectric cooler has no moving parts, it operates completely without vibration and remains completely noiseless during operation.
3. How is the cooling performance maximized in these modules?
Our design eliminates the use of screws for tightening, which results in better heat absorption and maximizes cooling efficiency across the Peltier unit.
4. Can I customize the radiating setup for the unit design?
Yes. You have a free choice of unit design, allowing you to choose a radiating configuration that includes either a radiating fin or a water-cooling jacket based on your requirements.
5. Is the Peltier water cooling system easy to install?
Absolutely. The system features a highly compact and lightweight design, requiring only a simple power cord connection, which lowers assembly costs and makes handling highly flexible.
6. What range of operating voltages and currents is supported?
Our product line supports a wide variety of specifications, with models designed for operating currents (Imax) ranging from 3.0A to 15.4A, and voltages (Vmax) up to 24.1V, to accommodate diverse cooling needs.
