There are seven colors to choose from. Our stock colors are black and white. If you want other colors, please contact us. We provide customization services and can make the product colors you want according to your requirements.
| Standard | Type 1 | Type 2 | GB/T | NACS |
|---|---|---|---|---|
| Product Model | TJ series | |||
| Size | 354 * 186 * 111 mm | |||
| Voltage | 120Vac ± 15% 240Vac ± 15% |
230Vac ± 15% (Single phase) 400Vac ± 15% (Three phase) |
220Vac ± 15% (Single phase) 380Vac ± 15% (Three phase) |
120Vac ± 15% 240Vac ± 15% |
| Power / Amperage | 3.5kW / 16A 7.6kW / 32A 9.6kW / 40A 11kW / 48A |
3.5kW / 16A 7.6kW / 32A 11kW / 16A 22kW / 32A |
3.5kW / 16A 7.6kW / 32A 11kW / 16A 22kW / 32A |
3.5kW / 16A 7.6kW / 32A 9.6kW / 40A 11kW / 48A |
| Installation Method | Indoor/Outdoor | |||
| Frequency | 50-60Hz | |||
| Certificate | CE, RoHS, FCC, ISO | |||
| Charging Interface | SAE J1772 | IEC 61851 | GB/T 18487 | SAE J1772 |
| Multiple Protection | Ground protection, leakage protection, over-voltage protection, over-current protection, over-temperature protection, lightning protection, etc. | |||
| Enclosure Material | PC + ASA | |||
| Cable Material | UL | TPU | EV | UL |
| Operating Temp. | 80°C (protection) 60°C (recovery) Operating Temperature: -25°C ~ +50°C Storage Temperature: -40°C ~ +80°C |
|||
| Indoor / Outdoor Rating | IP65 | |||
| Relative Humidity | Up to 95% non-condensing | |||
| Optional Content | ||||

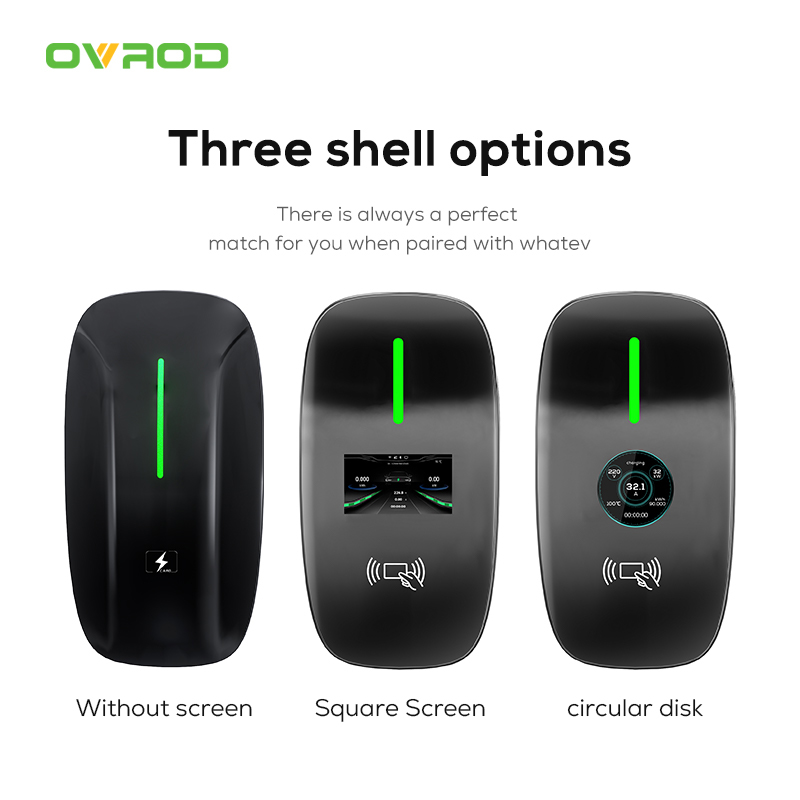

| HCI | 4.3 inch square screen, 3.5 inch round screen, no screen | |||
| RCD | CCID 20 Standard | Type A (Standard) or Type A + DC6mA | Type A (Standard) or Type A + DC6mA | CCID 20 Standard |

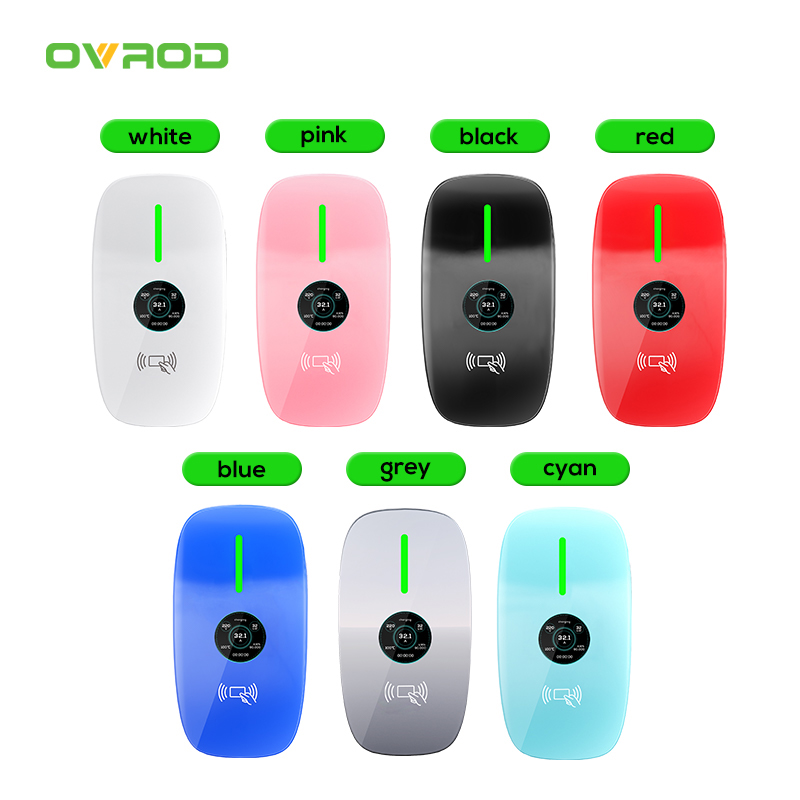

| Color | Black (Standard), White, Red, Green, Blue, Pink | |||

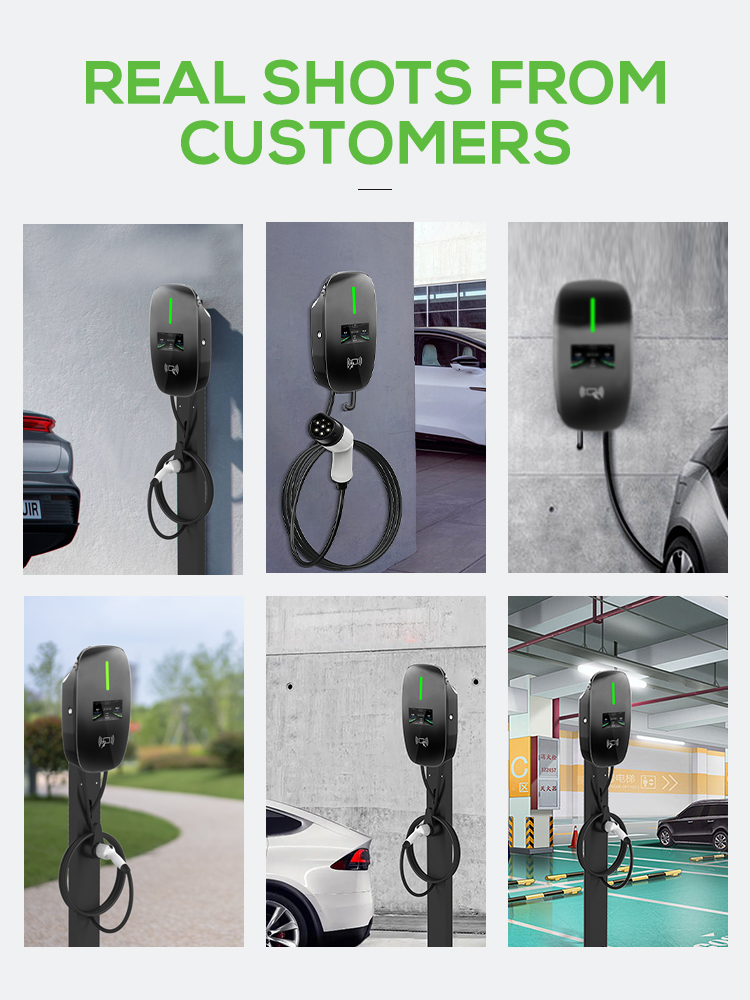

| Installation Method | Wall mounted / with column | |||
| Working Mode | Domestic (Standard) / commercial | |||
| OCPP | OCPP 1.6J (Standard) or OCPP 2.0 | |||
| Supported Features | Bluetooth / Wi-Fi, 4G, Ethernet, RFID | |||
| Cable Length | 23ft (7m) Standard | 18ft (5m) Standard | 18ft (5m) Standard | 23ft (7m) Standard |
| Current Regulation | 8A-10A-13A-16A-20A-24A-32A (optional 40A-48A) | 8A-10A-13A-16A-20A-24A-32A | 8A-10A-13A-16A-20A-24A-32A | 8A-10A-13A-16A-20A-24A-32A (optional 40A-48A) |
Established in 2014, we are a professional designer and manufacturer specializing in new energy EV chargers, including wall-mounted EV chargers, portable EV chargers, and DC EV chargers, etc.
The R&D team consists of 23+ professional technical personnel, covering multiple roles such as software engineer, hardware engineer, testing engineer, and project manager, possessing comprehensive technical R&D capabilities.

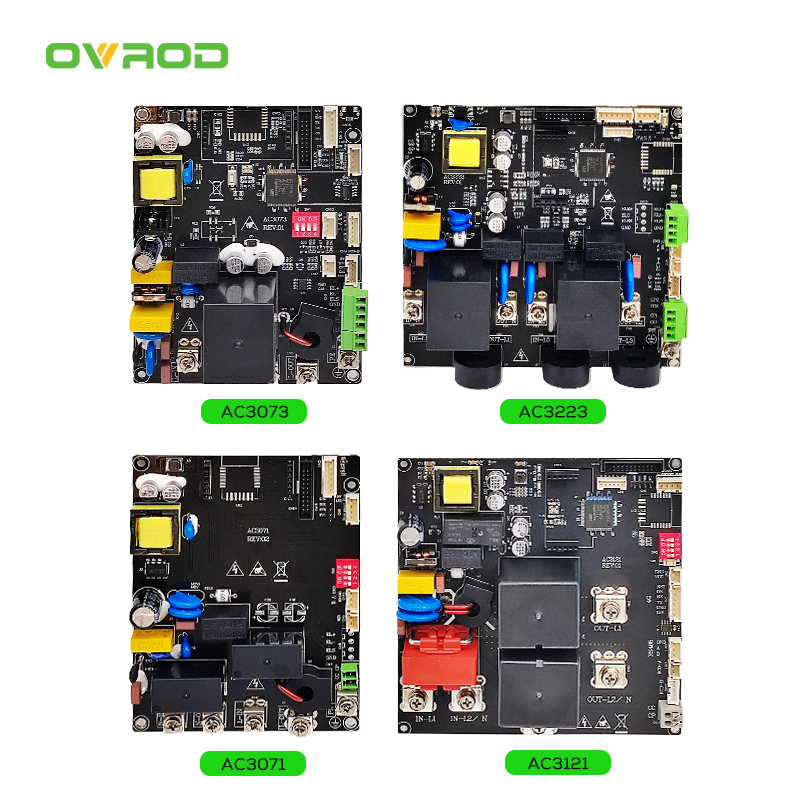

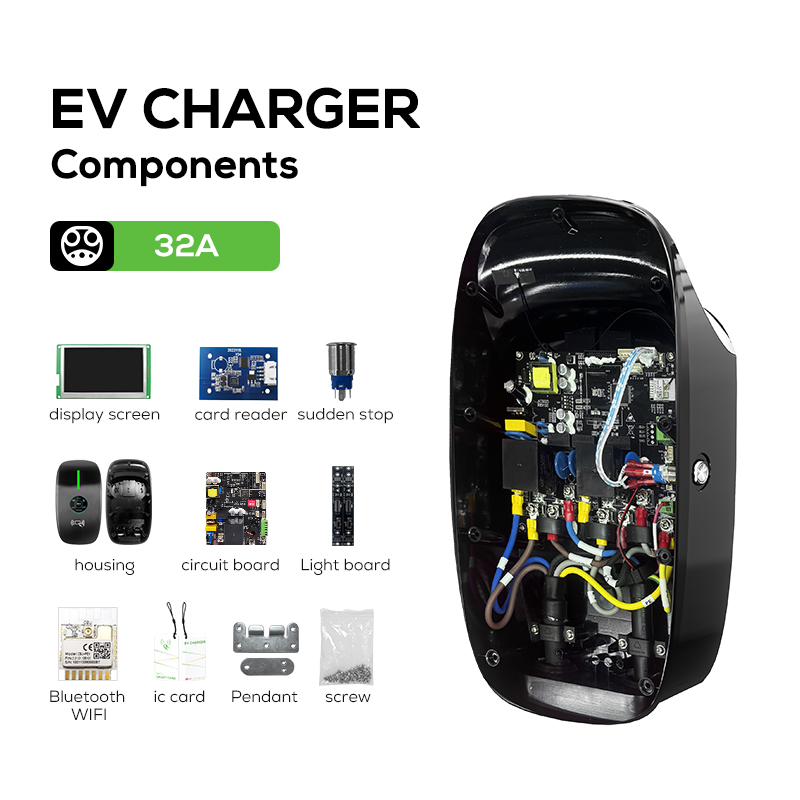

We have SKD solutions, self-developed and self-produced infrastructure, and the ability to provide a complete set of supporting solutions for charging piles. We also offer sample customization and light customization services.
We are committed to creating a leading brand of independent new energy intelligent hardware, providing customers with the most comprehensive new energy intelligent hardware solutions, and becoming a trusted new energy intelligent hardware service provider internationally. Let's join hands and collaborate for a sustainable future.

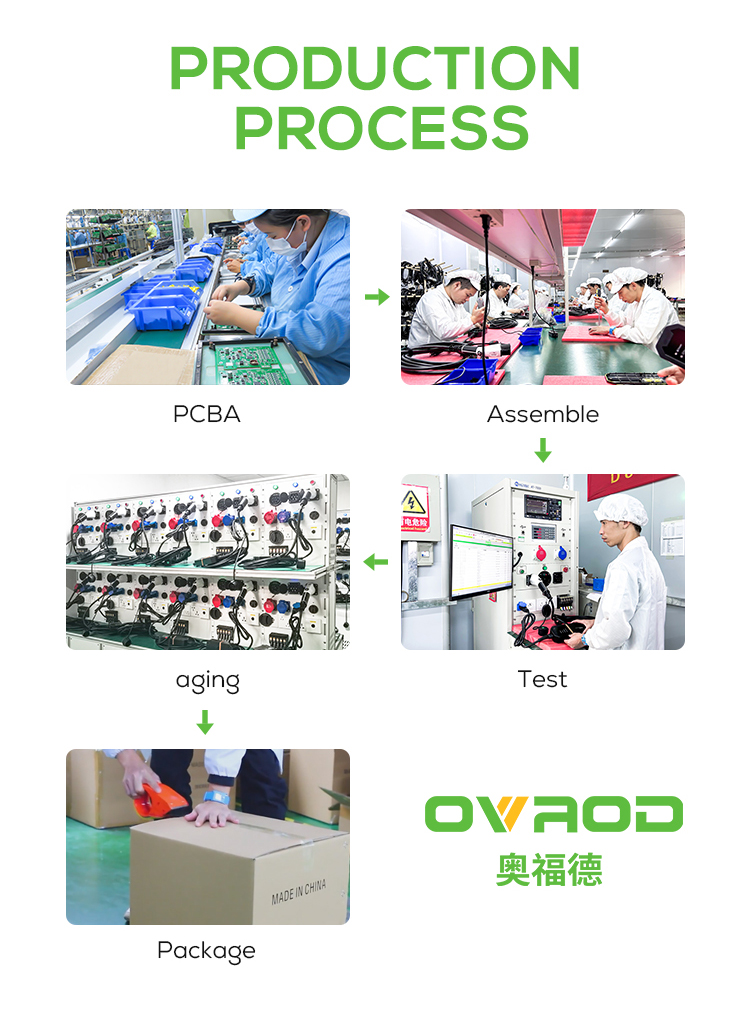

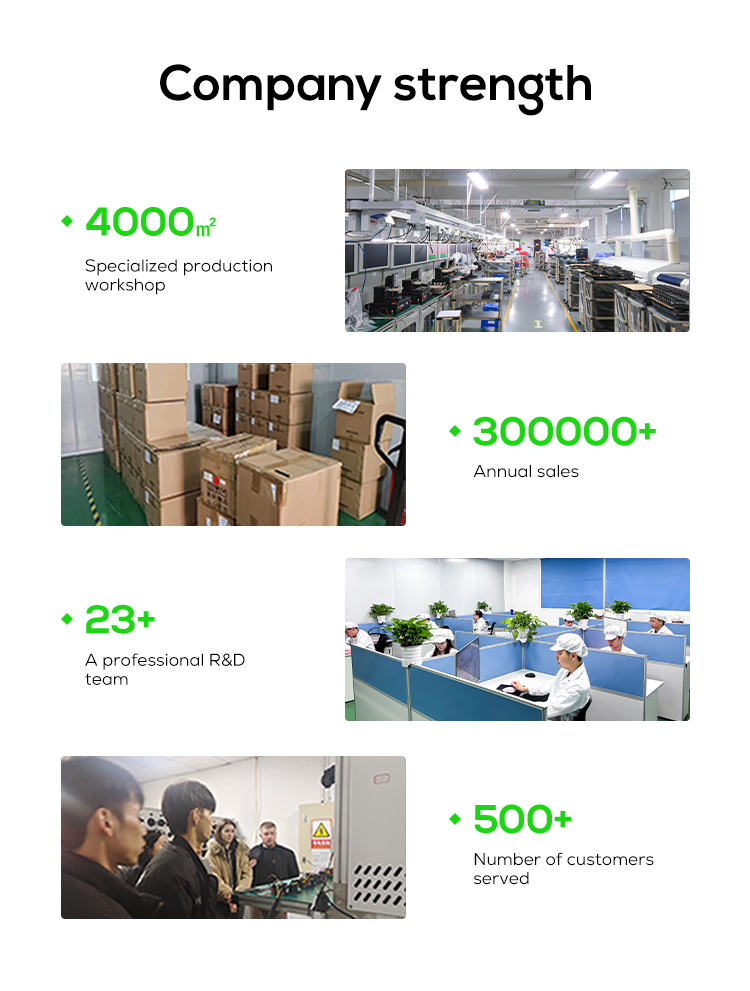

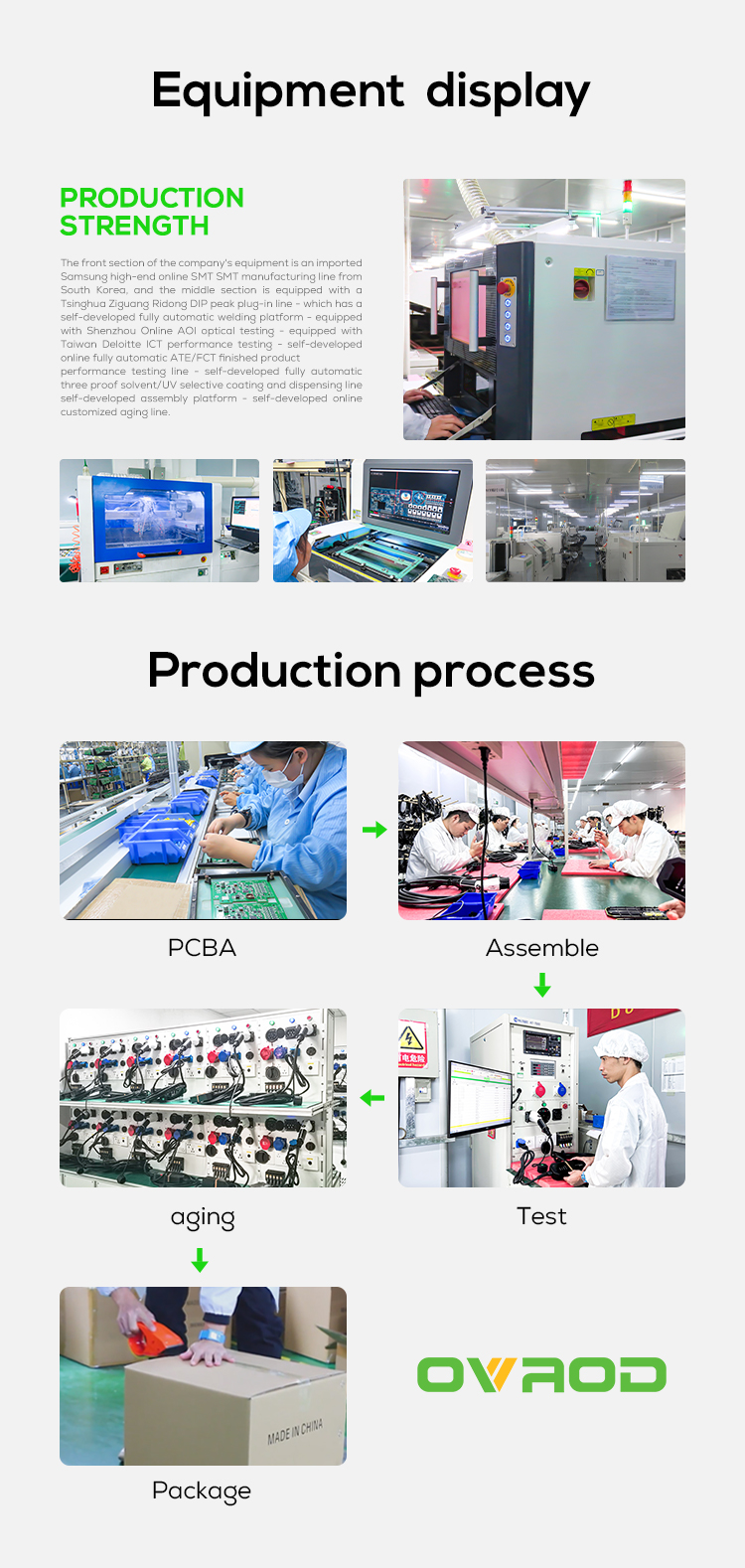

We have a production workshop covering an area of 4000 square meters, with an annual production capacity of 200,000 PCBA boards and 100,000 charging stations. From raw materials to finished products, every step is strictly controlled to ensure that product quality meets the highest standards. We have 4 existing automatic and semi-automatic production lines that can produce AC and DC power supplies.
We have 20+ testing equipment units, which have the characteristics of high precision, high efficiency, and strong reliability. They can comprehensively test various performance indicators of products, ensuring that products meet relevant standards and customer requirements. Our quality inspection team has comprehensive testing capabilities and can conduct comprehensive testing on various types of products. We can provide accurate and reliable inspection results, whether it is for appearance inspection, size measurement, performance testing, or environmental adaptability testing. This comprehensive testing capability enables us to meet the diverse needs of our customers and provide them with a one-stop quality assurance service.
We have obtained 10+ invention patents, 20+ software patents, 20+ utility model patents, 10+ appearance patents, and multiple international certifications such as CE, ROHS, FCC, ISO, etc.
