| Motor direction | longitudinal motor or transverse motor |

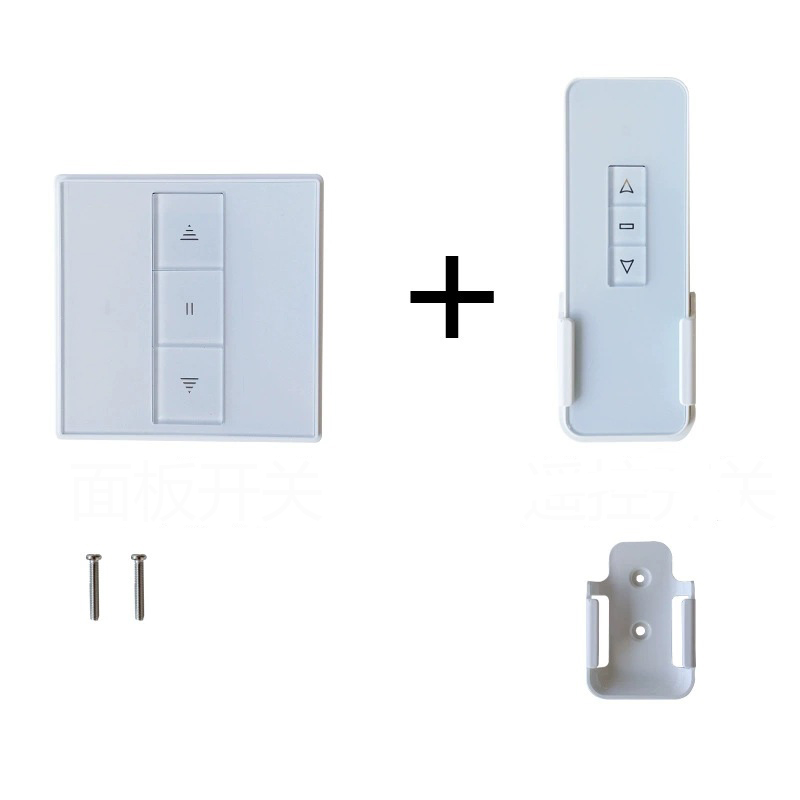

| Switch type | remote control+panel switch |
| Applicable voltage | 220V |
| Lifting load capacity | 250kg |
| Bed frame size | 2 * 1.5 meters |

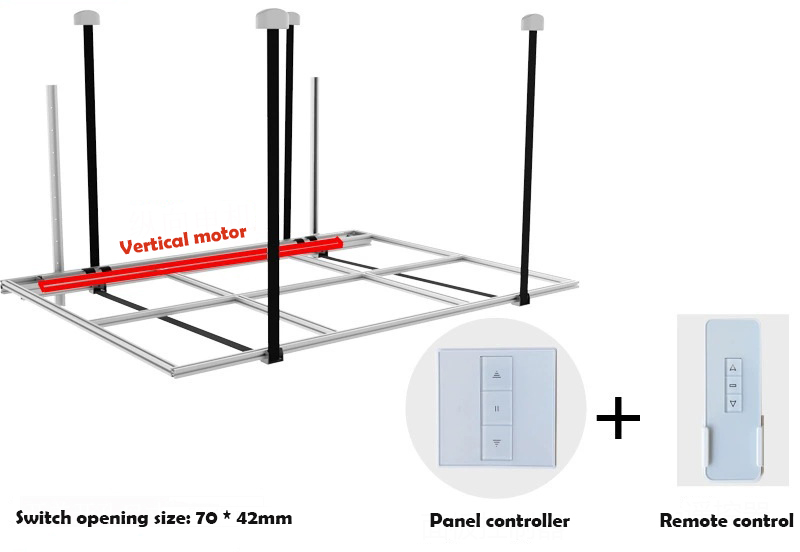

| Switch opening size: | 70*42mm |
| Power | 375W |
| Operation mode | Press to continuously descend (to the limit), press to continuously ascend (to the limit), if you want to ascend or descend to a certain height, press the middle stop button to stop. To continue rising or falling, press the up/down button again to continue rising or falling |

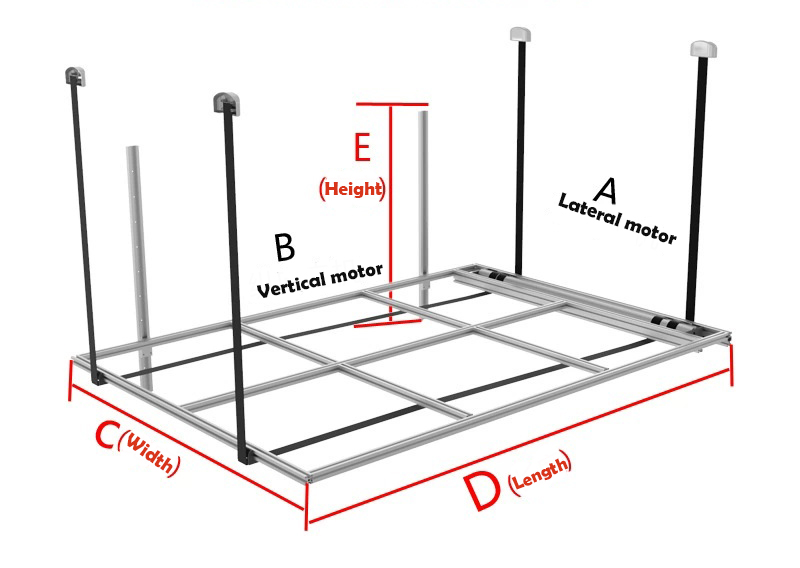

1. Determine the direction of the lifting bed motor, whether it is A horizontal or B vertical
2. Determine the dimensions of the lift bed, including C width and D length
3. Determine the height of the lift bed (E)

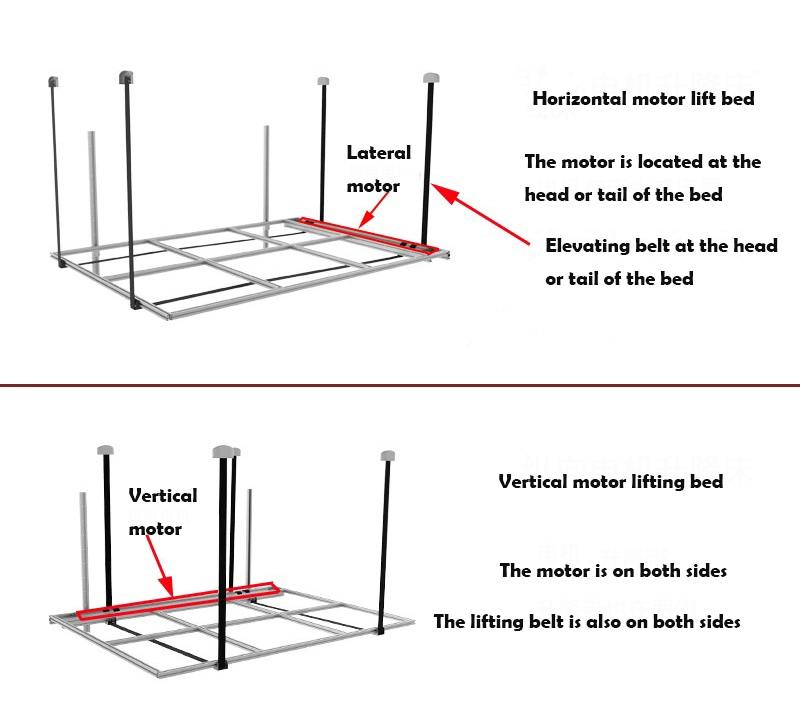

Horizontal motor lift bed: The motor is located at the head or tail of the bed, and the lifting belt is located at the head or tail of the bed.
Vertical motor lifting bed: The motor is on both sides, and the lifting belt is also on both sides.
