| Model No | Air Flow (CMH) | ESP (Pa) | Cooling Cap. (4-roll) | Cooling Cap. (6-roll) |
|---|---|---|---|---|
| TZK180-4 / TZK180-6 | 18000 | 600 | 118.2 | 143.0 |
| TZK200-4 / TZK200-6 | 20000 | 700 | 139.4 | 167.7 |
| TZK230-4 / TZK230-6 | 23000 | 700 | 145.5 | 185.5 |

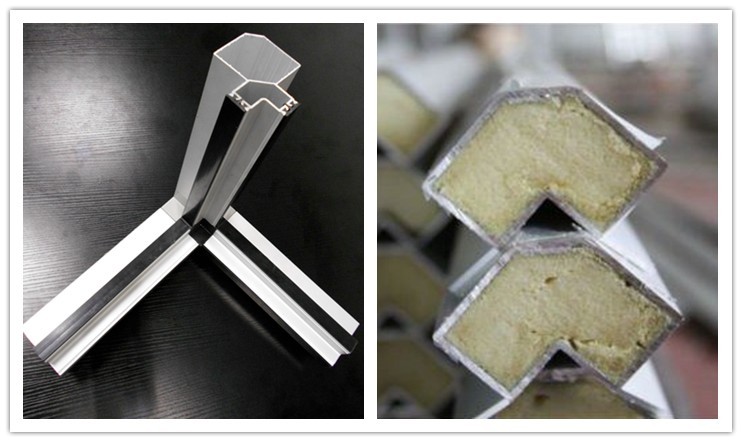

Penta-post extra heavy gauge aluminium profiles and strong fiber-reinforced PE corner connection forming the structural frame. Superior mechanical strength prevents buckling or deformation.

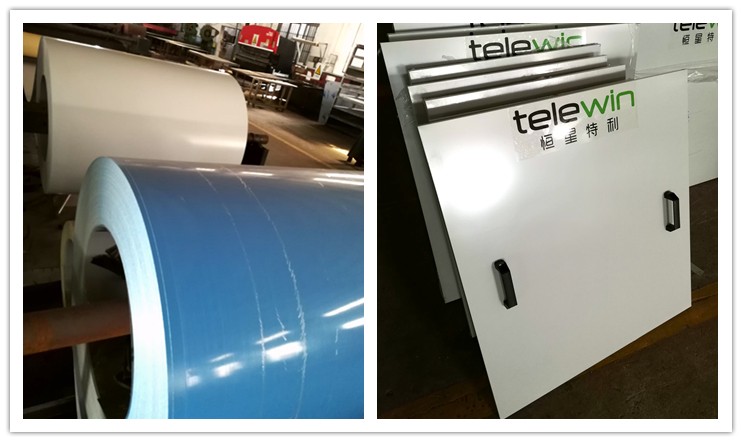

Double skin sandwich panels with polyurethane foam (48kg/m3). Excellent thermal and acoustical performance with air leakage rates complying with clean air standards.

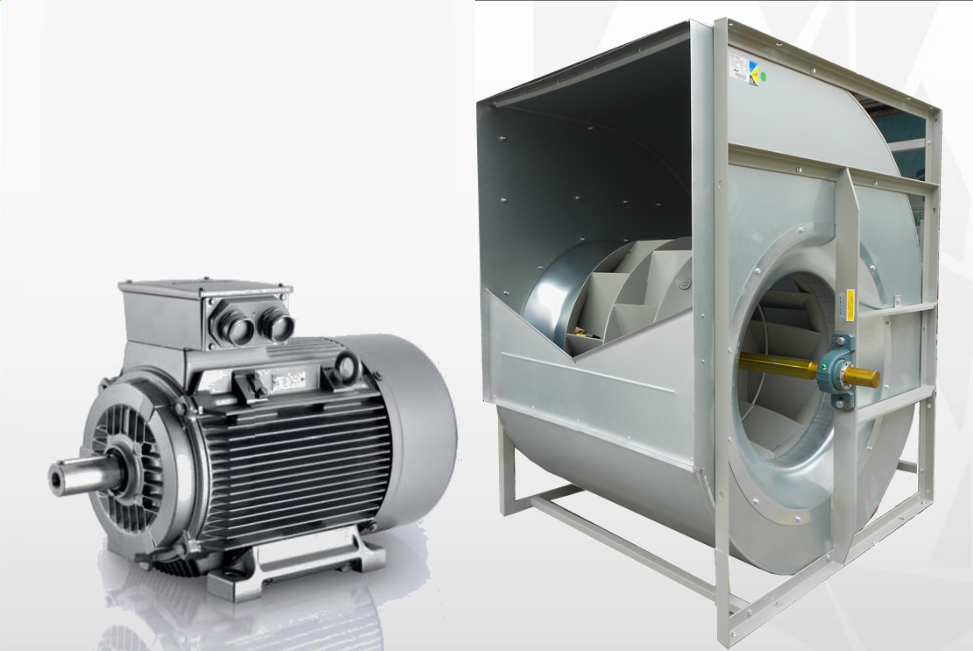

Options include Nicotra, Kruger, Deton, Yilida. Motors are TEFC type, Class F insulation, IP54/IP55. VFD options available from Siemens, ABB, WEG, and TECO.

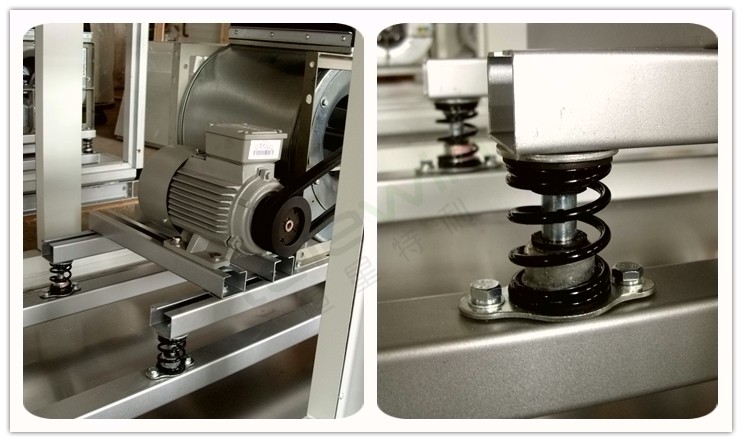

Fan and motor installed on an independent base frame isolated by deflection type spring isolators to reduce transmission of vibration and noise.

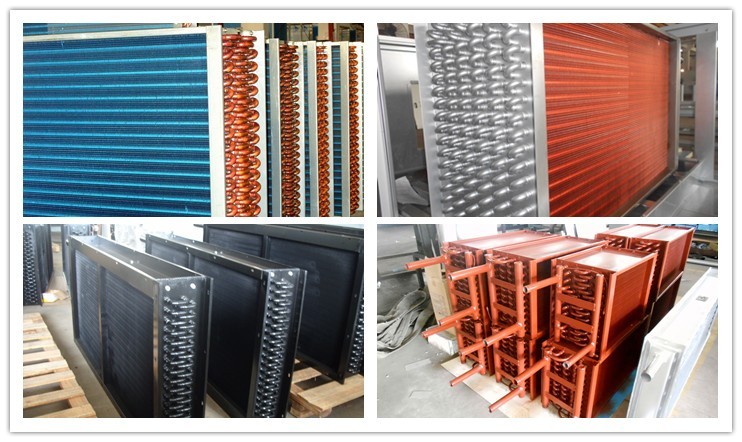

Large face area ensures maximum heat transfer. Tested at 30bar pressure. Options: Copper/Copper, Epoxy coated, or Heresite coated coils.

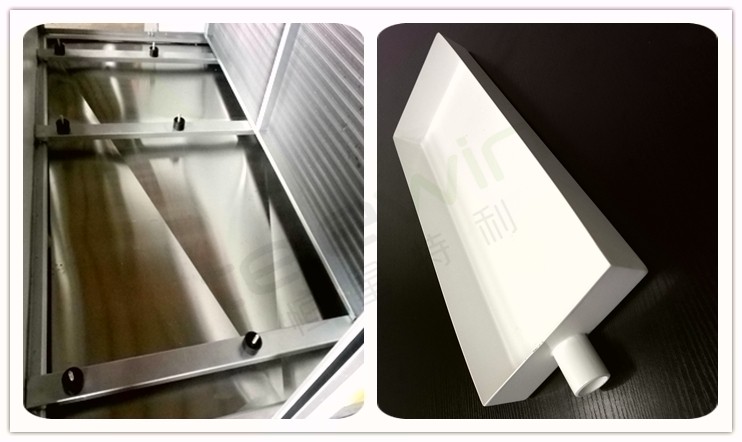

Sloped design prevents water carryover and microbial growth. Antimicrobial surface coatings available for dust-free operation.

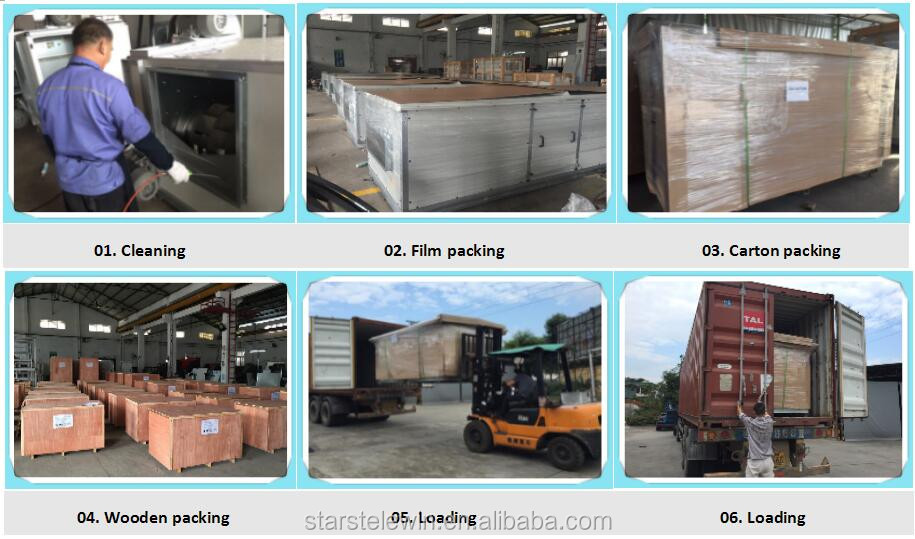

We provide stable and timely supply to international markets with professional logistics handling:
