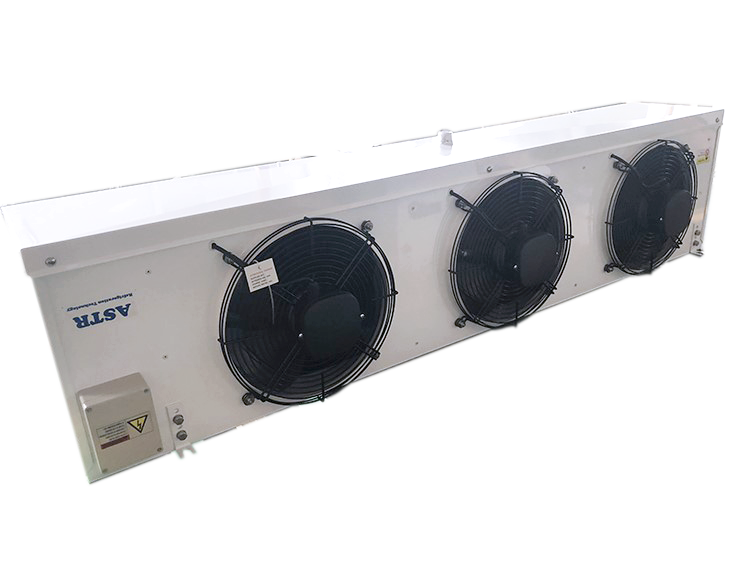

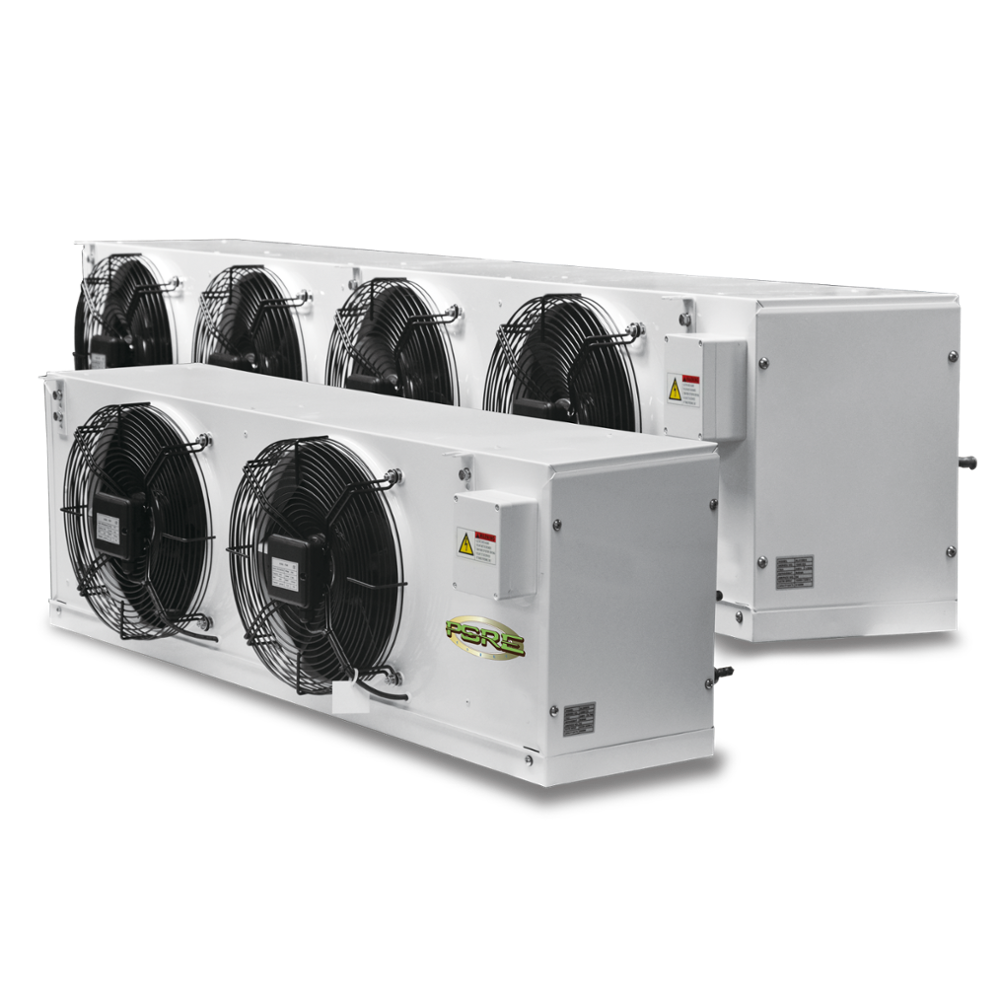

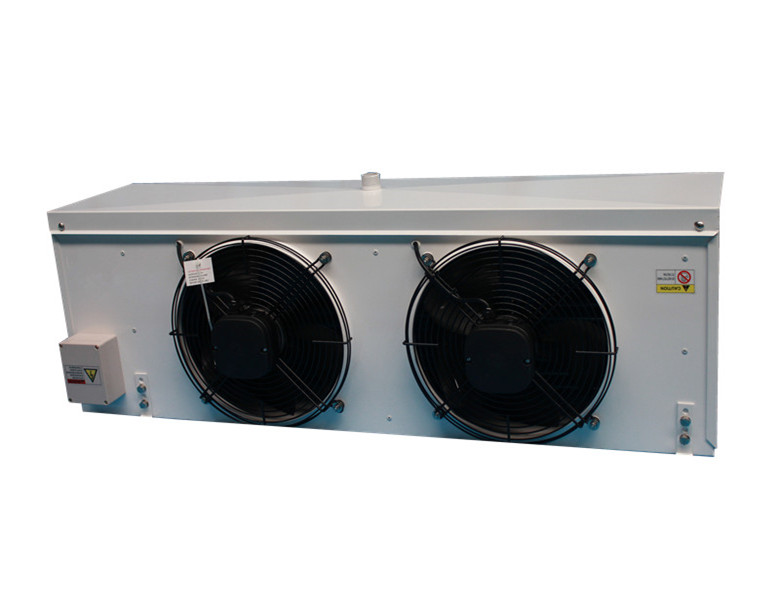

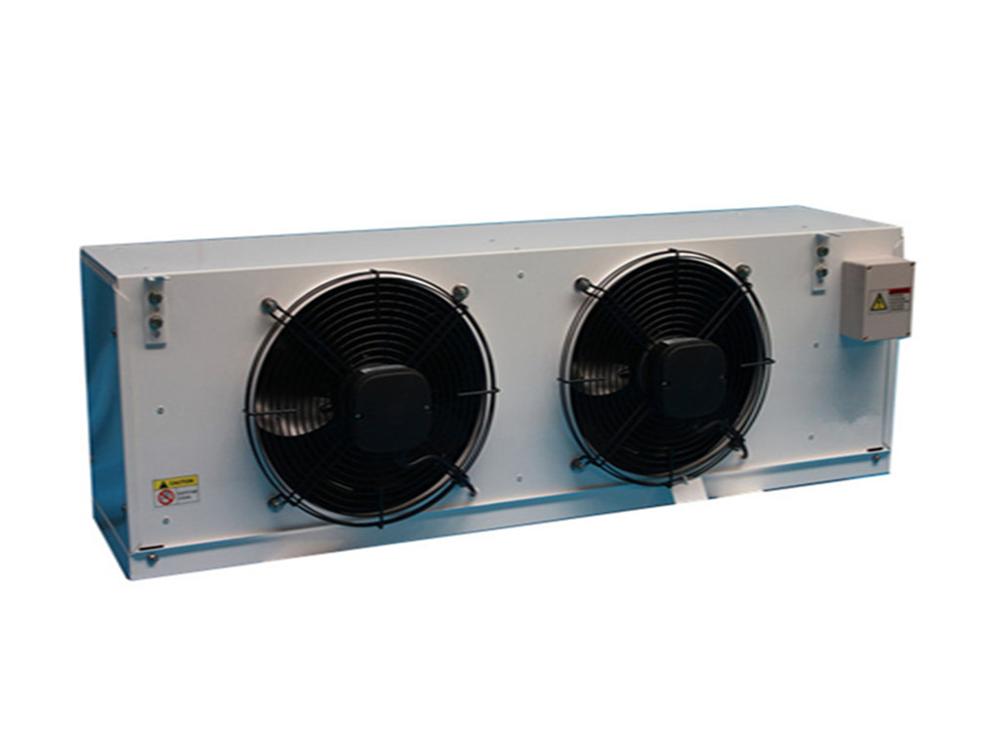

Main Performance: Series Air Cooler
Room Temperature: ≥-20℃ | Fin Spacing: 6.0 mm | Refrigerant: R404A
| Model |
Surface (m²) |
Fan Motor (220-240V.50/60Hz) |
Defrost Heater (240V/50Hz) |
| Qty |
Dia (mm) |
Air Flow (m³/h) |
Air Throw (m) |
Power (W) |
Coil |
Drain Pan |
| NF3.5/301-6 | 3.5 | 1 | 300 | 1700 | 7 | 90 | 320W*2 | 420W |
| NF5/301-6 | 5 | 1 | 300 | 1700 | 7 | 90 | 320W*2 | 420W |
| NF7/301-6 | 7 | 1 | 300 | 1700 | 7 | 90 | 440W*2 | 550W |
| NF9/302-6 | 9 | 2 | 300 | 3400 | 8 | 180 | 760W*2 | 850W |
| NF12/302-6 | 12 | 2 | 300 | 3400 | 8 | 180 | 760W*2 | 850W |
| NF14/303-6 | 14 | 3 | 300 | 5100 | 11 | 270 | 1120W*2 | 1250W |
| NF17/303-6 | 17 | 3 | 300 | 5100 | 11 | 270 | 1120W*2 | 1250W |
| NF19/304-6 | 19 | 4 | 300 | 6800 | 12 | 360 | 1500W*2 | 1500W |
| NF23/304-6 | 23 | 4 | 300 | 6800 | 12 | 360 | 1500W*2 | 1500W |
Installation & Connection Dimensions
| Model |
Connection (inch) |
Unit Size (mm) |
Installation (mm) |
Water Drain (inch) |
| Inlet |
Outlet |
W |
H |
A |
B |
| NF3.5/301-6 | 3/8 | 5/8 | 360 | 430 | 410 | 295 | 1/2 |
| NF5/301-6 | 3/8 | 5/8 | 360 | 430 | 410 | 295 | 1/2 |
| NF7/301-6 | 3/8 | 5/8 | 360 | 430 | 570 | 295 | 1/2 |
| NF9/302-6 | 3/8 | 5/8 | 360 | 430 | 960 | 295 | 1/2 |
| NF12/302-6 | 3/8 | 5/8 | 360 | 430 | 960 | 295 | 1/2 |
| NF14/303-6 | 1/2 | 7/8 | 360 | 430 | 1430 | 295 | 1/2 |
| NF17/303-6 | 1/2 | 7/8 | 360 | 430 | 1430 | 295 | 1/2 |
| NF19/304-6 | 1/2 | 7/8 | 360 | 430 | 1900 | 295 | 1/2 |
| NF23/304-6 | 1/2 | 7/8 | 360 | 430 | 1900 | 295 | 1/2 |
Products Description

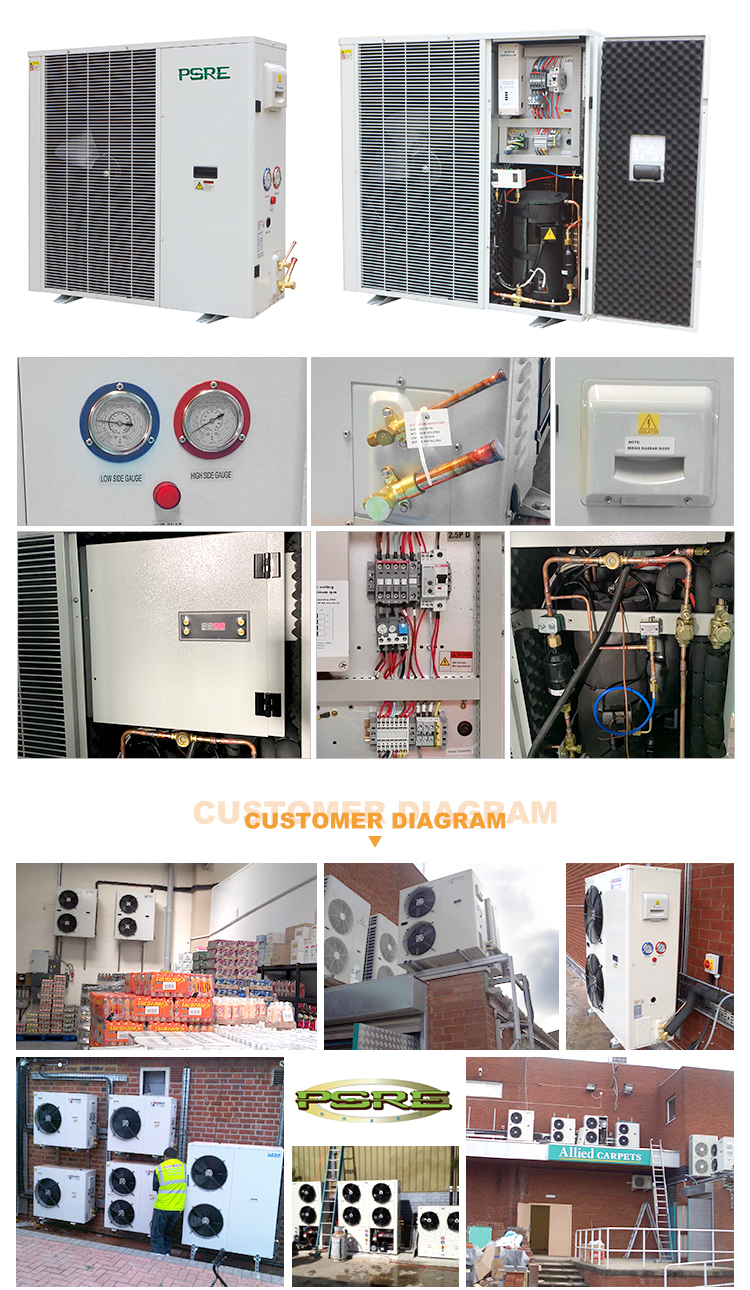

The use of inverter compressors combined together with refrigeration systems is subject to extensive research by leading global manufacturers. When the inverter compressor starts, it runs at high frequency for rapid cooling. Once the room temperature reaches the setting, it switches to low frequency and low speed to maintain the environment with minimal energy consumption and low temperature fluctuations, significantly extending the compressor's lifespan.
Main Features
- Faster cooling speed with small temperature fluctuation range
- Efficient energy saving, significantly reducing system energy costs
- Increased compressor reliability due to fewer startups
- Low noise operation thanks to extremely high system flexibility
- Extremely low vibration phenomena

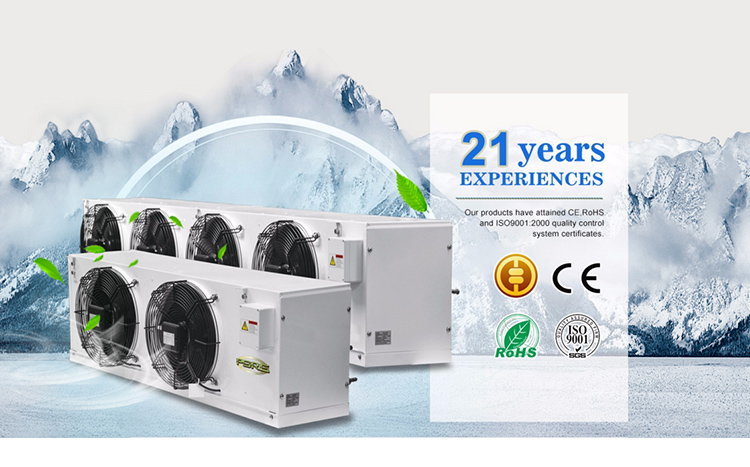

Certifications & Quality Assurance
Our manufacturing processes are certified by ISO9001:2000, ISO1400, CE, CB, RoHS, and other international quality and environmental protection systems. We also hold national industrial product production licenses.

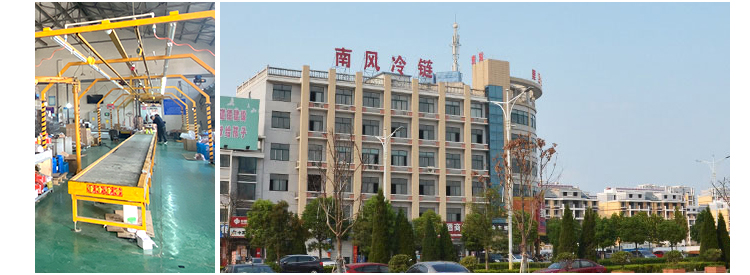

Company Profile

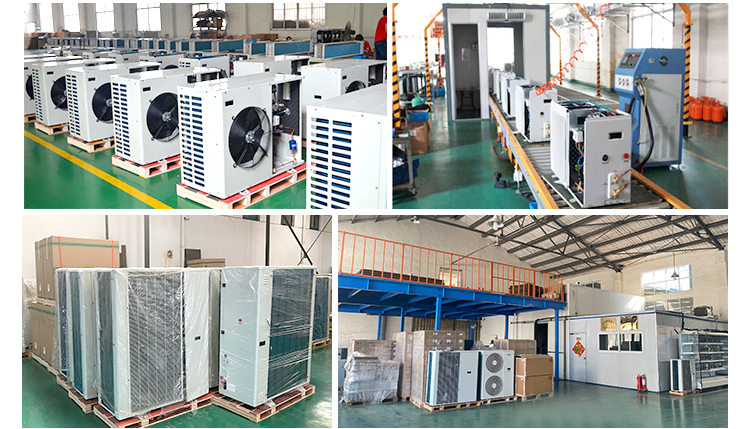

Established in 1999, we specialize in the development, manufacture, and sales of refrigeration equipment. Our core products include DC inverter condensing units, fully equipped condensing units, and high-quality refrigeration solutions. Our DC inverter units offer super energy savings (40%-60%) and super silent operation (as low as 45dB). With a professional R&D team and automated assembly lines, we ensure high quality through imported leak detection equipment and advanced production management systems.
Global Markets & Exhibitions
Our major markets include Europe, Australia, and North America. Positioned in the high-end refrigeration market, we provide OEM and ODM services to global customers. Since 2009, we have maintained a strong international reputation for honesty and trustworthiness in trade.
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized refrigeration equipment factory with over 20 years of manufacturing experience.
What are the main advantages of your DC inverter condensing units?
Our units offer significant energy savings (40%-60%), extremely low noise levels (as low as 45dB), and stable temperature control.
What certifications do your products hold?
Our products are certified with ISO9001, CE, CB, RoHS, and we operate under strict quality and environmental protection systems.
Do you provide OEM or ODM services?
Yes, we provide comprehensive OEM and ODM services, including custom logos and specific design requirements for international clients.
What is the typical warranty period for your equipment?
We provide a one-year warranty against manufacturing defects to ensure the reliability of our products.
Which markets do you primarily serve?
Our main markets are North America, Europe, and Australia, where we serve high-end refrigeration needs.
