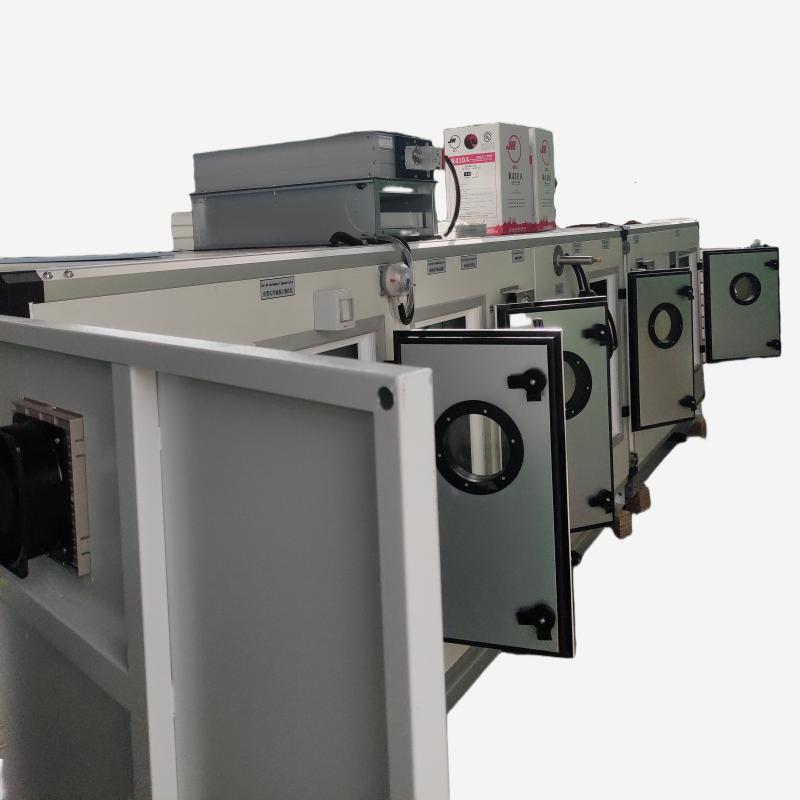

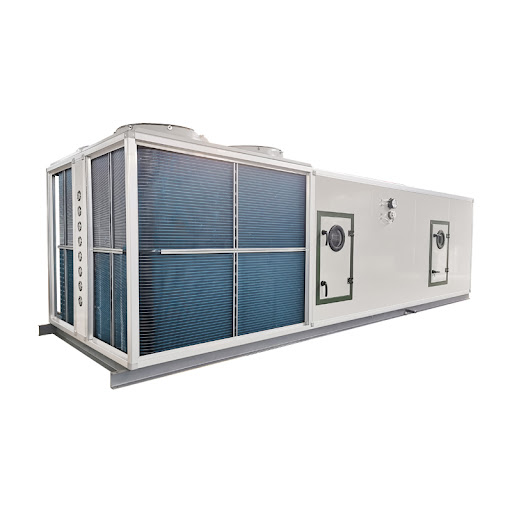

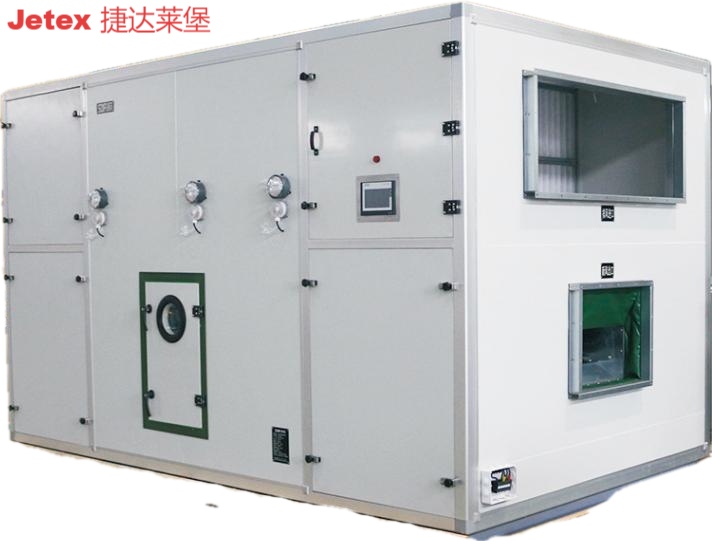

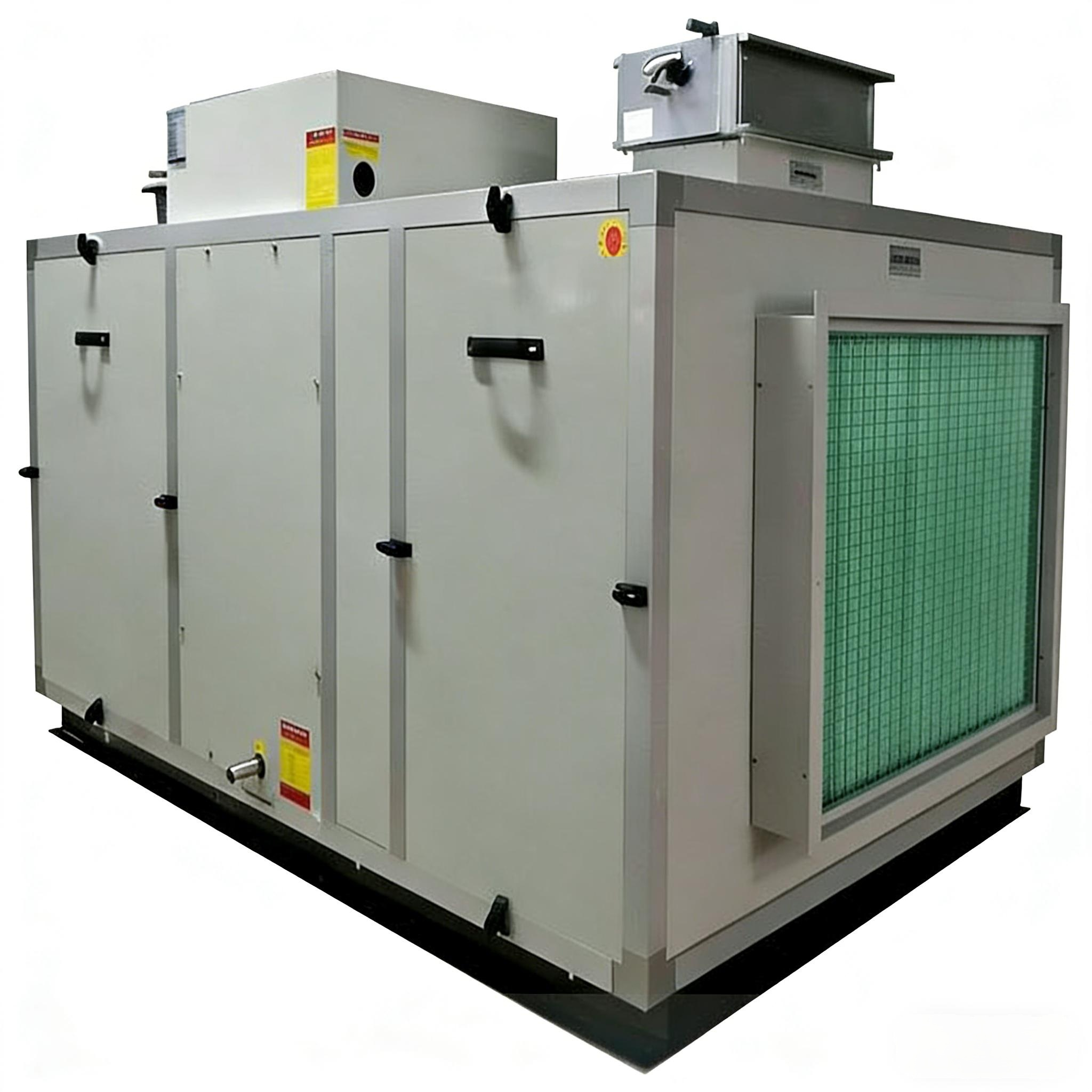

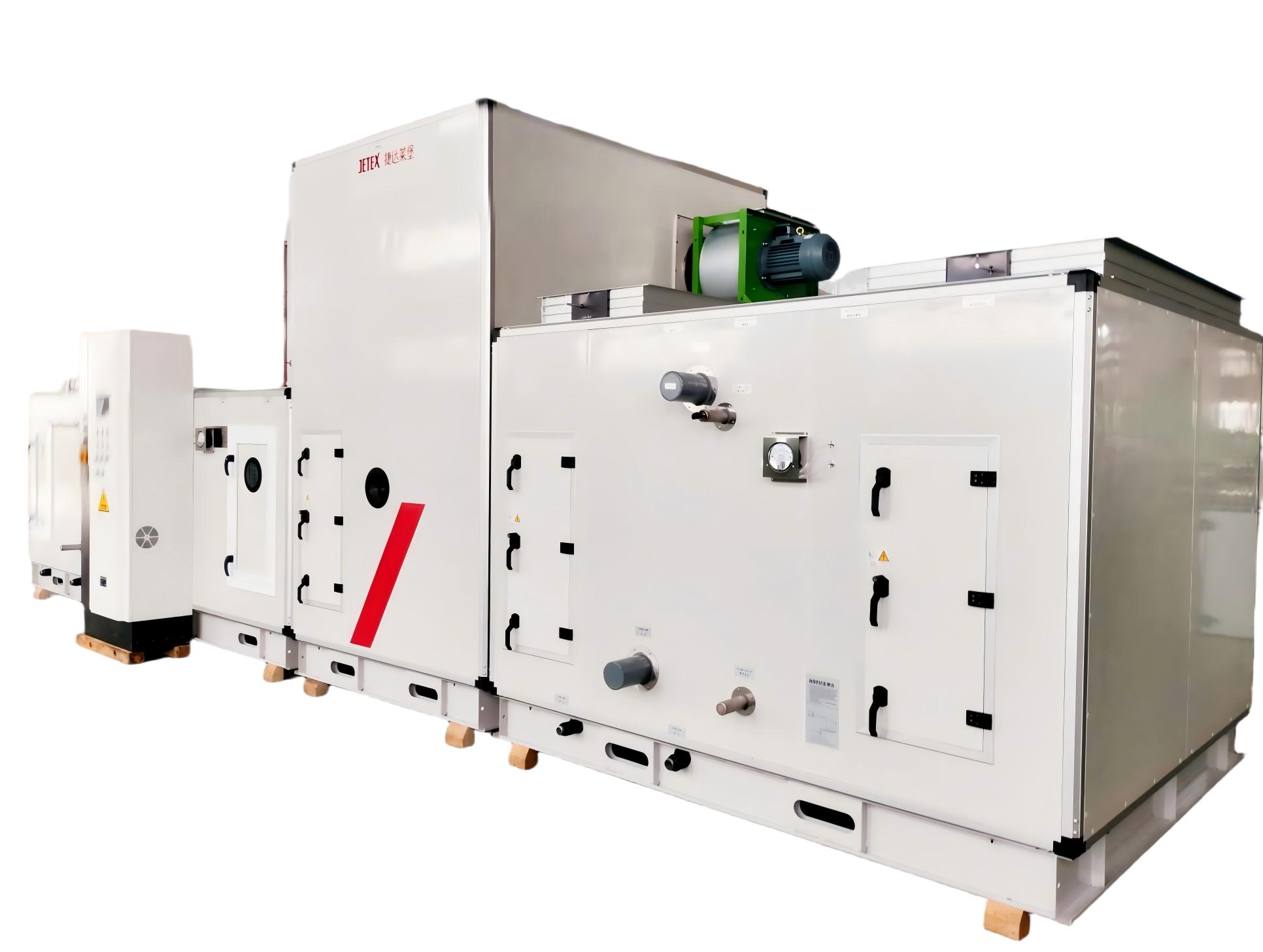

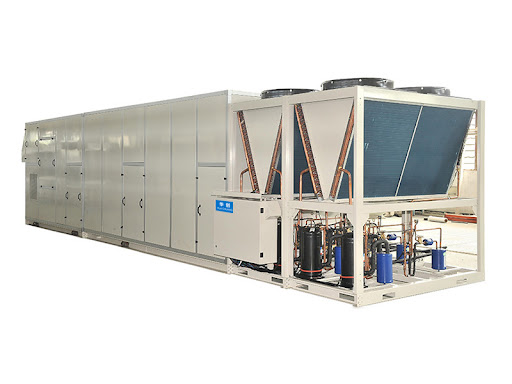

A DX (Direct Expansion) Air Handling Unit is an air handling system where the refrigerant directly cools or heats the air inside the unit through an integrated DX coil.
Compared with chilled water systems, DX AHU does not require external chillers or water piping, making it suitable for projects with limited installation space or simplified system requirements.

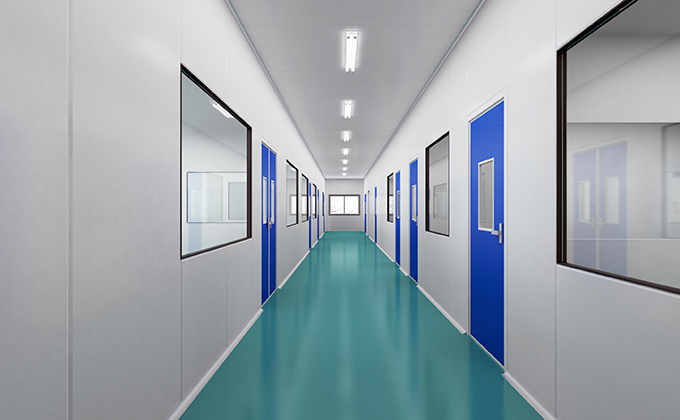

Laboratories & Technical Rooms

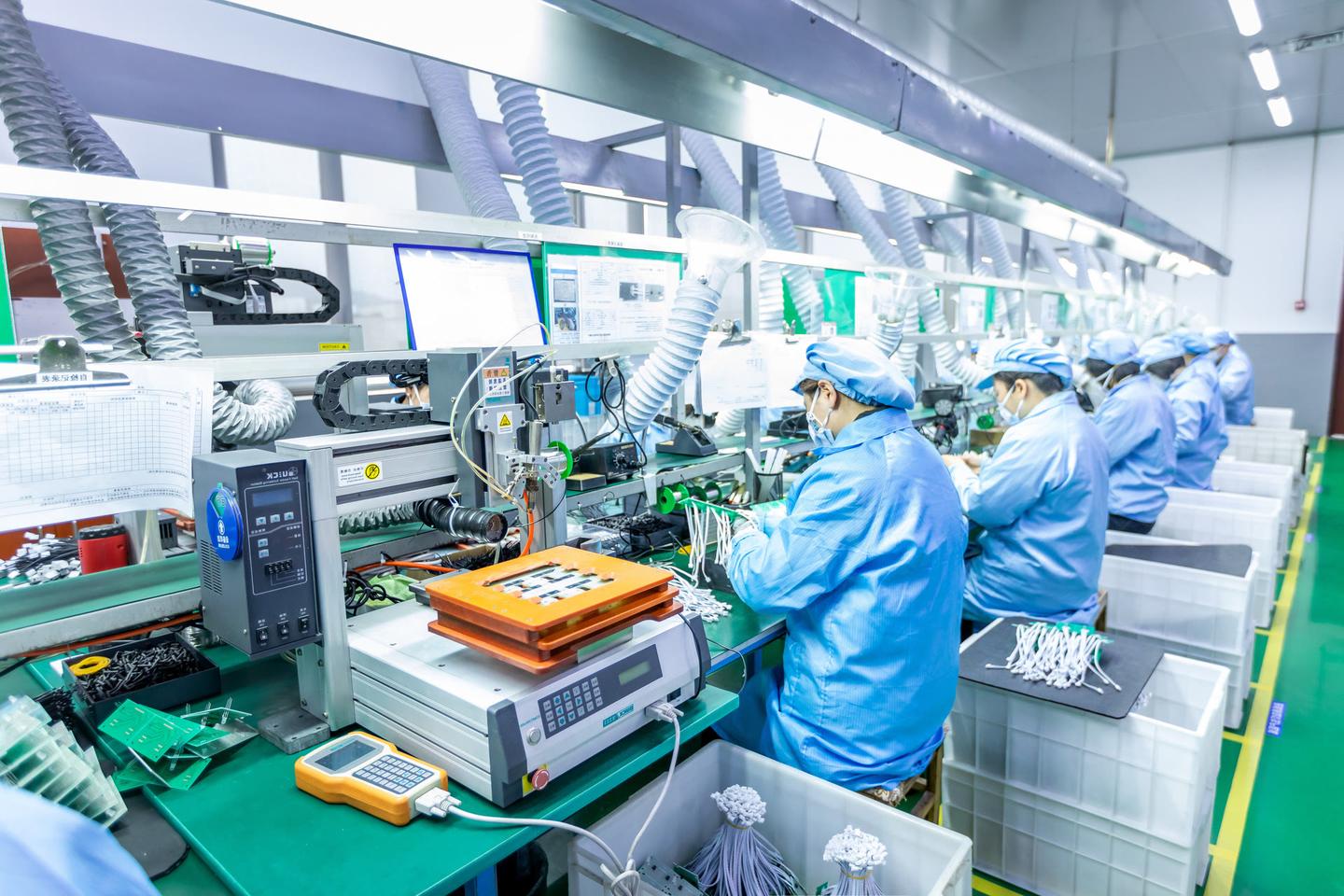

Light Industrial Workshops
Commercial Buildings
| Product | DX Air Handling Unit | Application | Biomedicine, Lab, semiconductors, electronic chips, lithium batteries, commercial buildings |
| Model | DX Series | Airflow | 2000~100000 CMH |
| Mounting Type | Floor standing or ceiling mounted | Core Components | Belt drive motor or EC fan motor |
| Frame | Thermal break aluminum alloy frame with high-density sealing gasket | Casing Structure & Insulation | Double-skin with Polyurethane foam insulation |

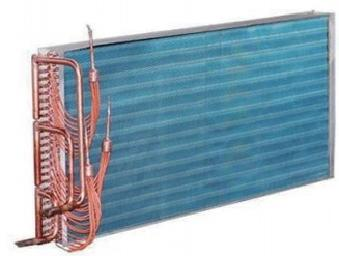

| Filters | G4 panel-type primary filters, F5~F9 bag-type medium-efficiency filters, H11 filters etc. | Cooling/Heating Coil | High-quality copper tubes with blue-wave aluminum fins |
| Humidifier Type | Wet film/dry steam / high pressure micro mist | Other Functions | Customization is available based on customer requirements |
| Cooling Capacity | 12kW + | Heating Capacity | 17.9 kW+ |
| Rows | 2-8 rows | Warranty | 1 year |

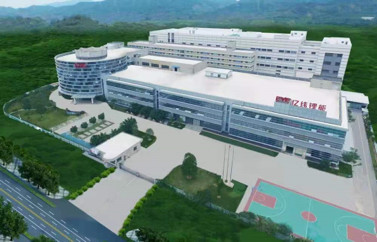

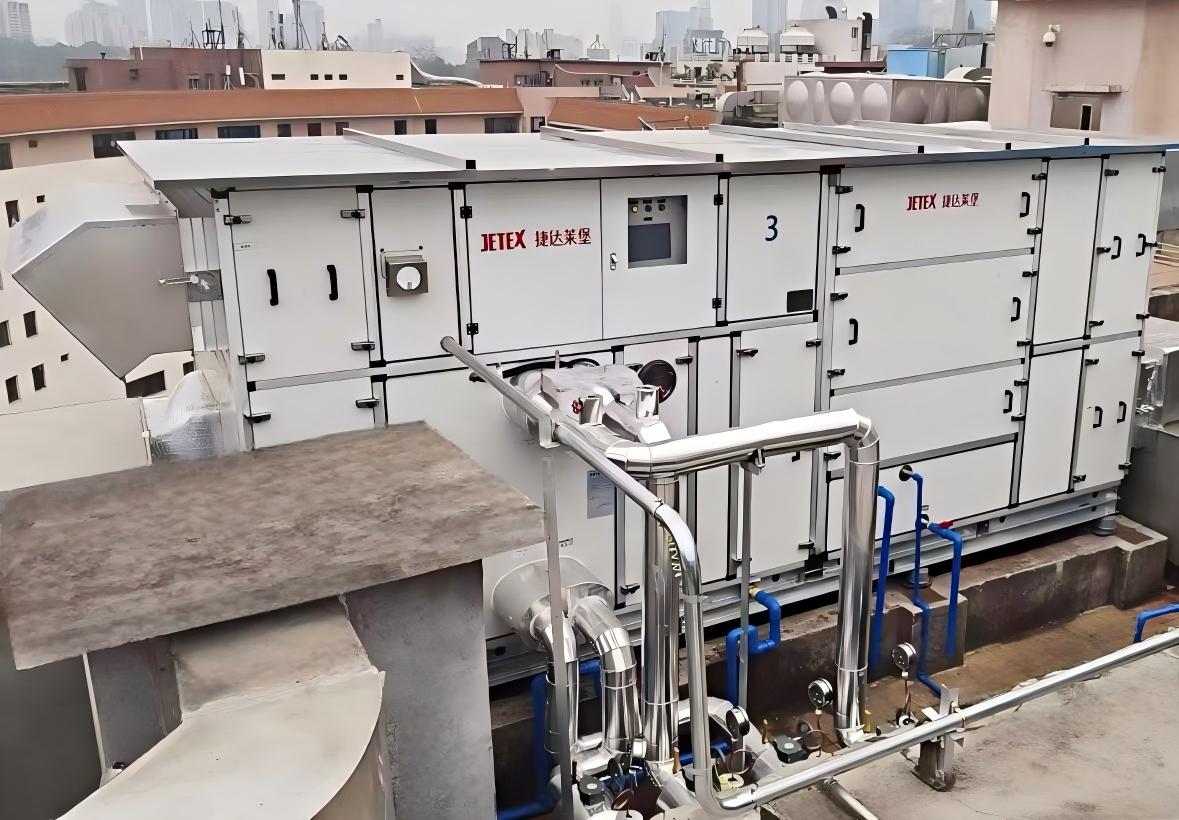

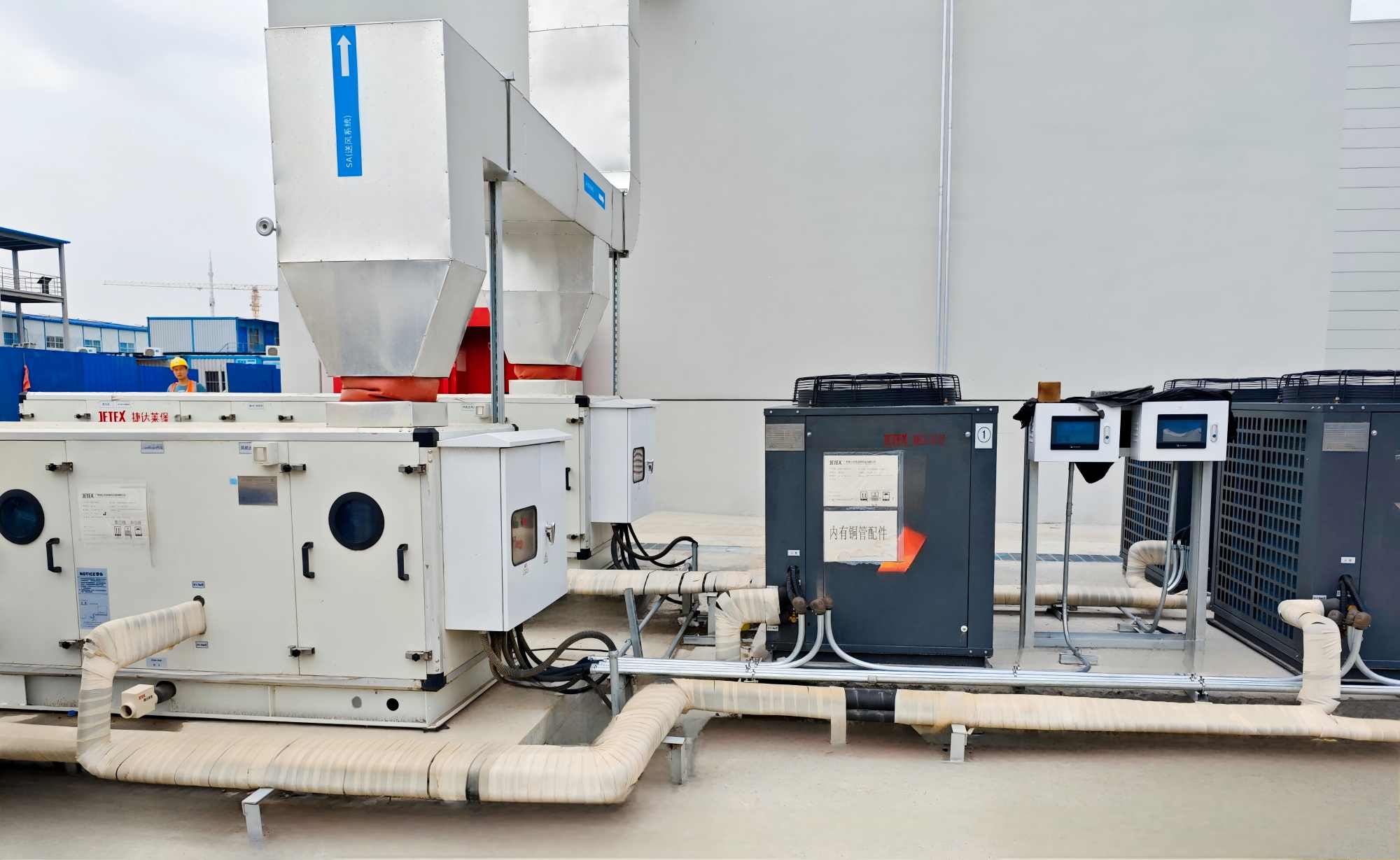

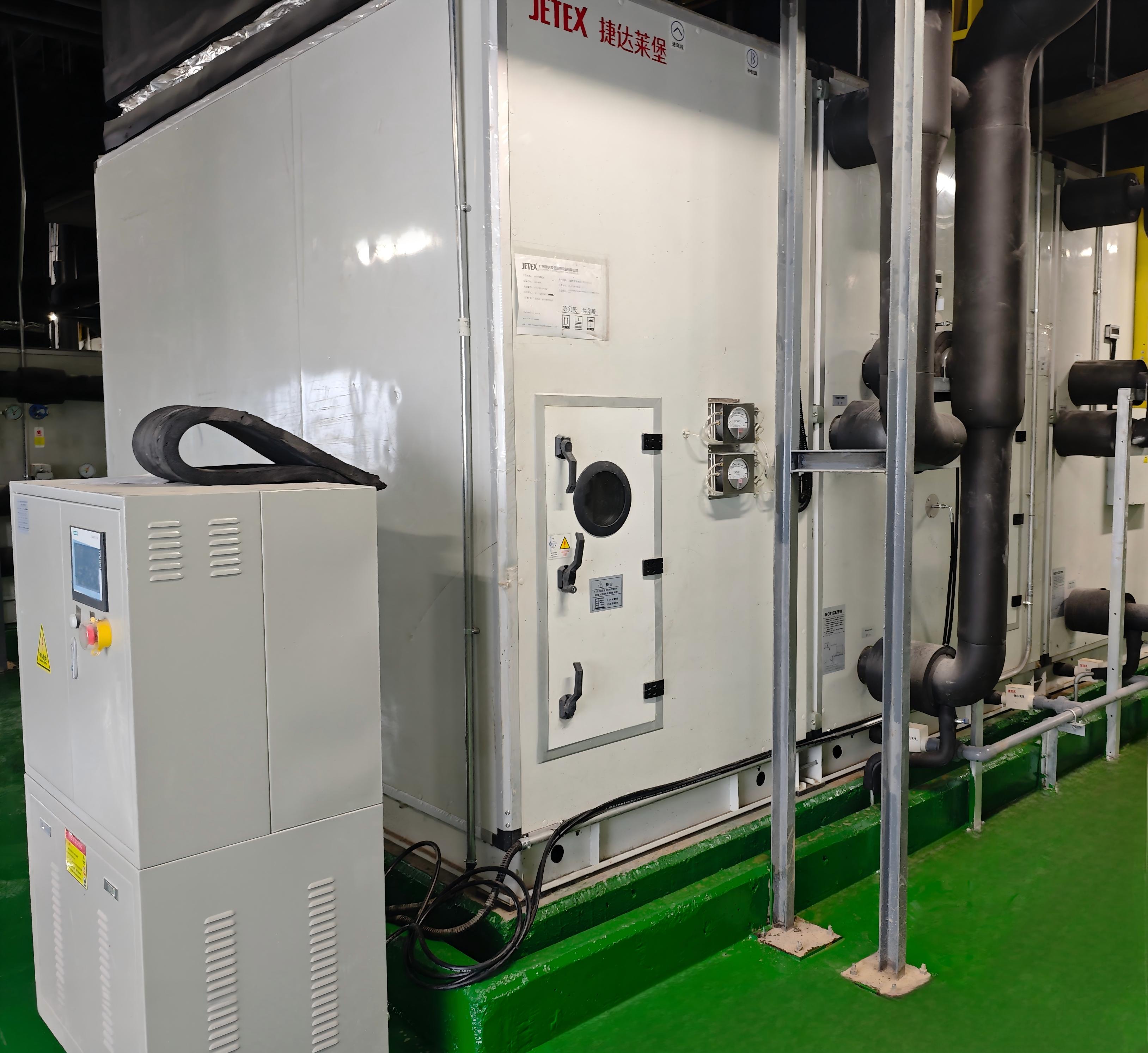

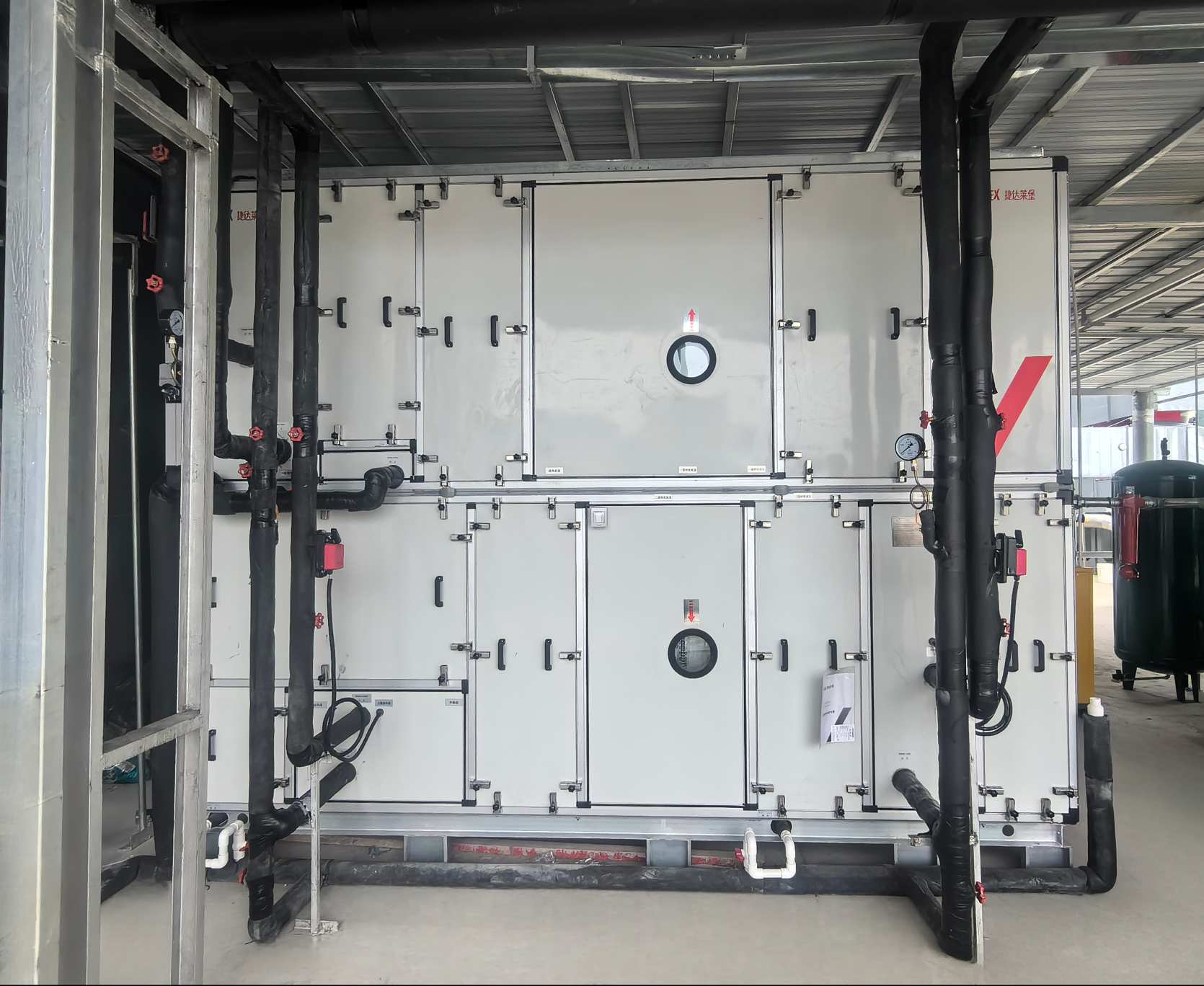

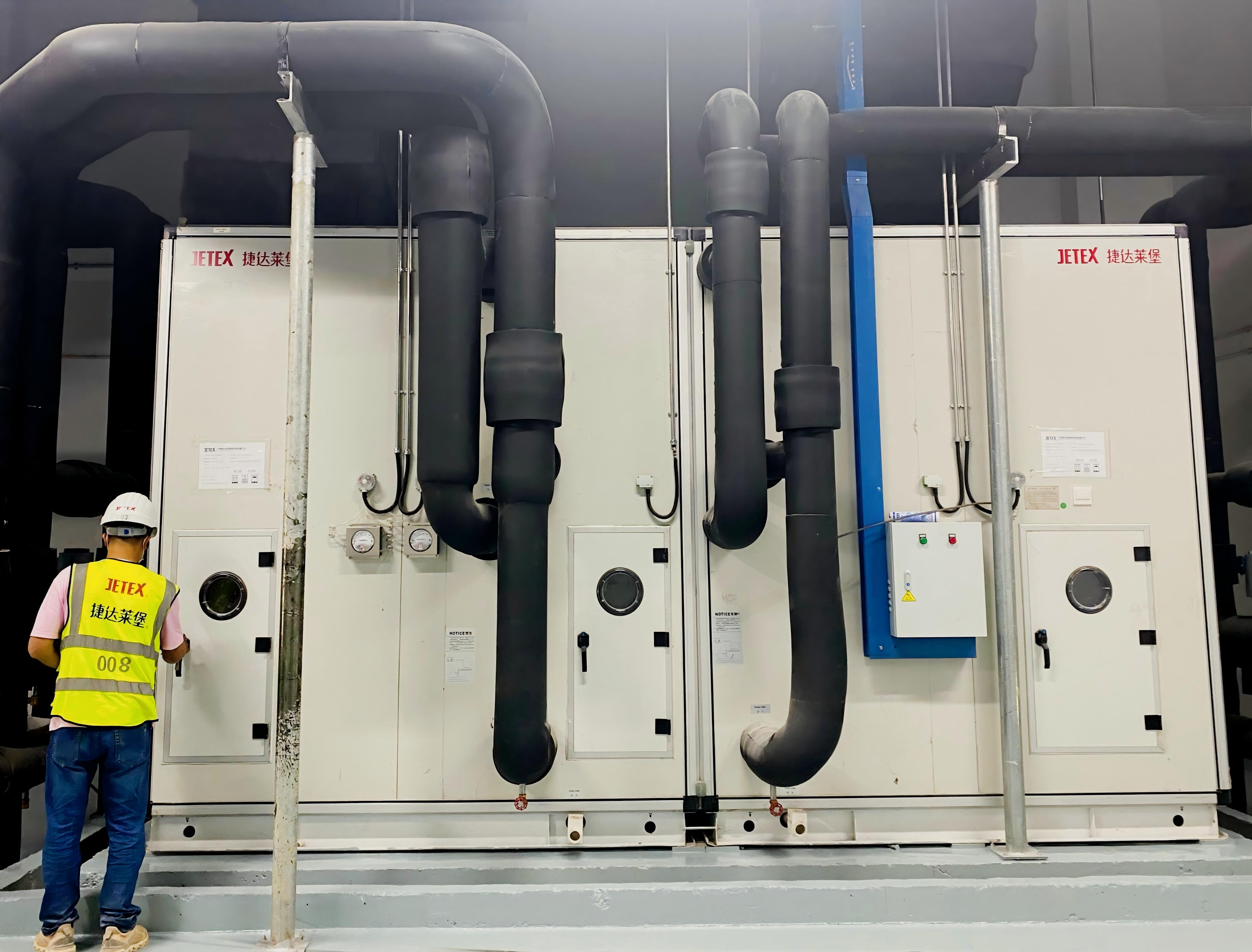

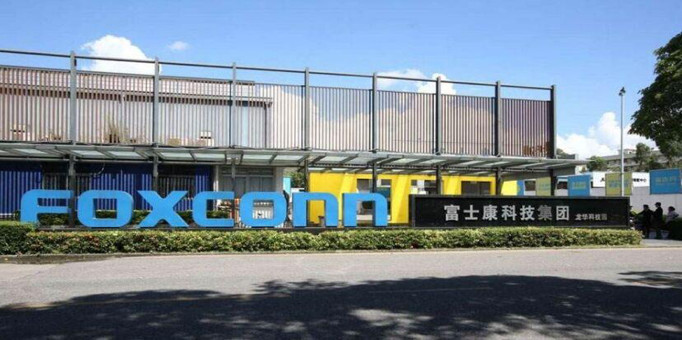

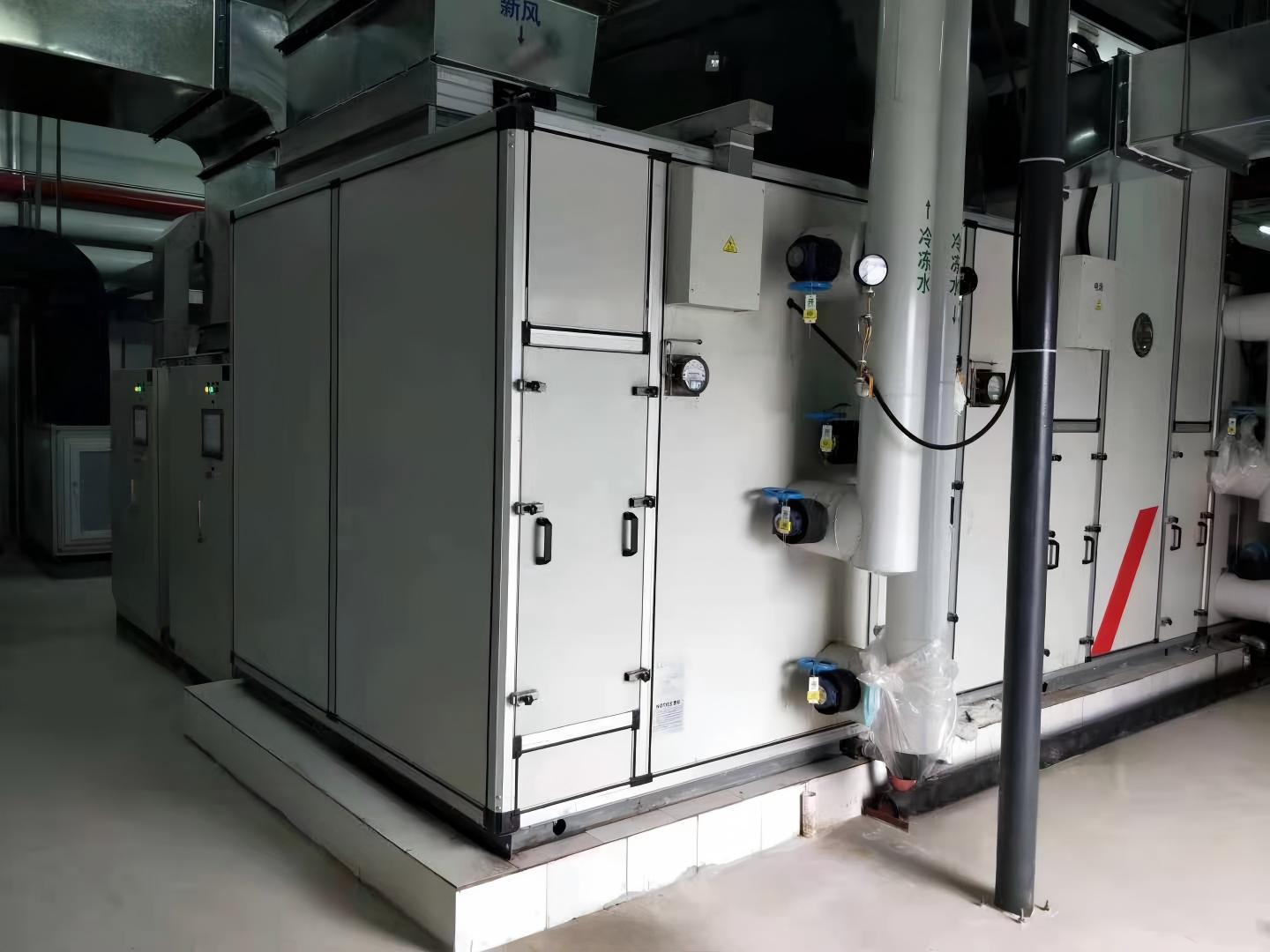

Electronics Assembly Park Project

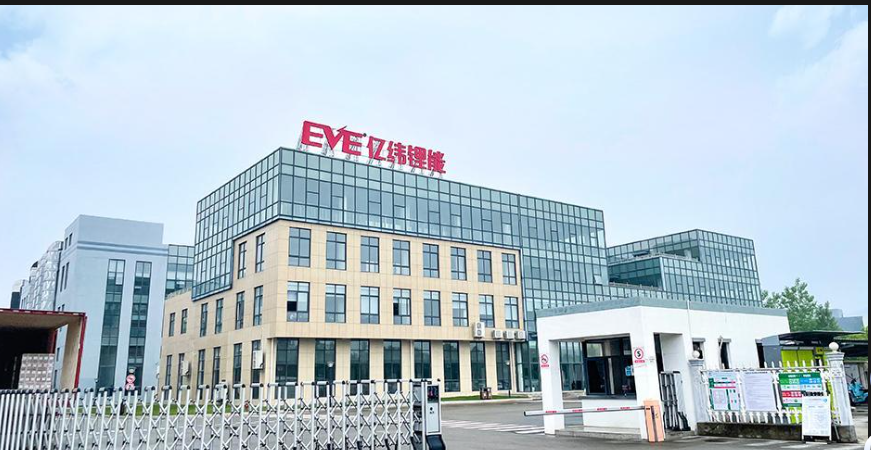

Energy Industrial Park Project

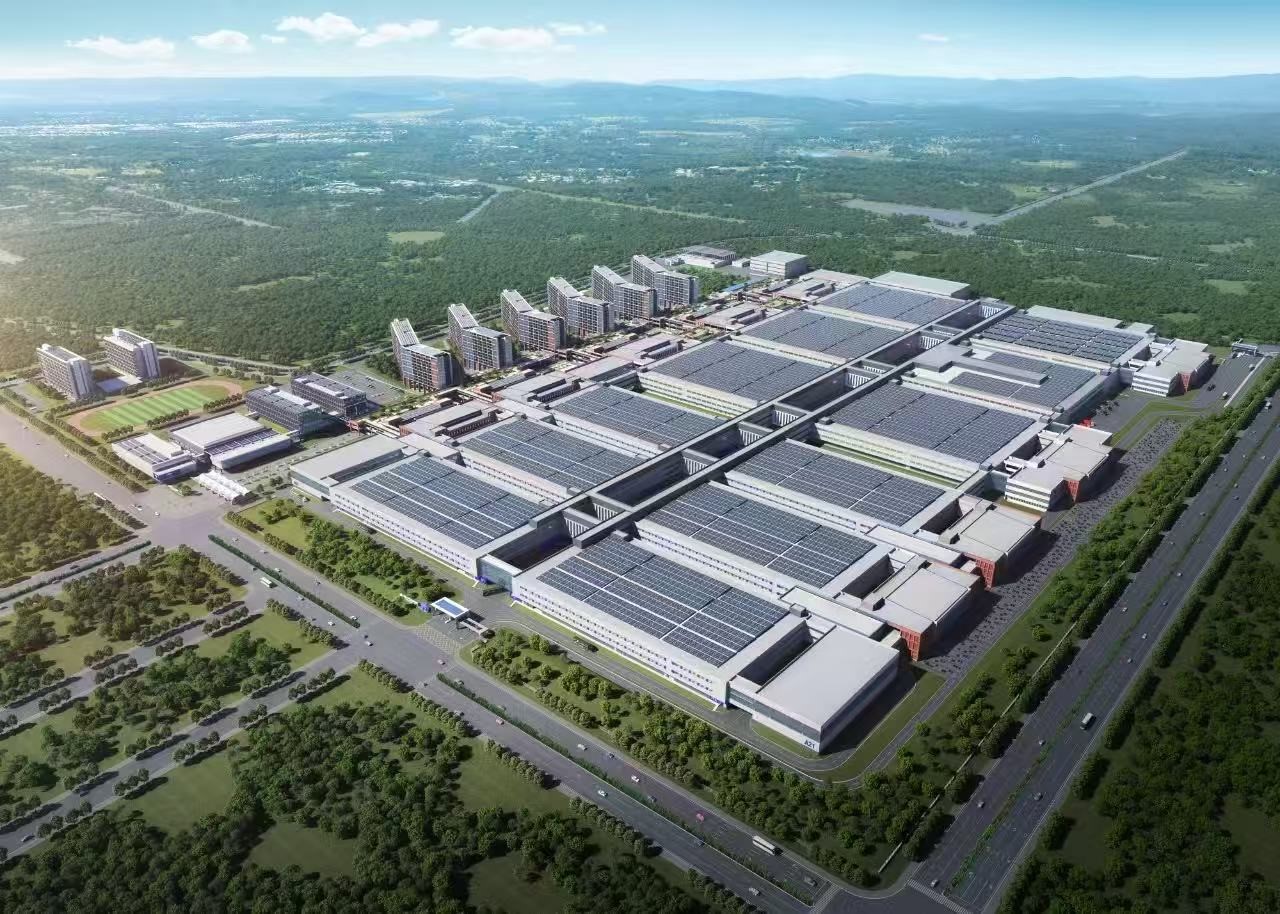

High-Tech Industrial Park Project

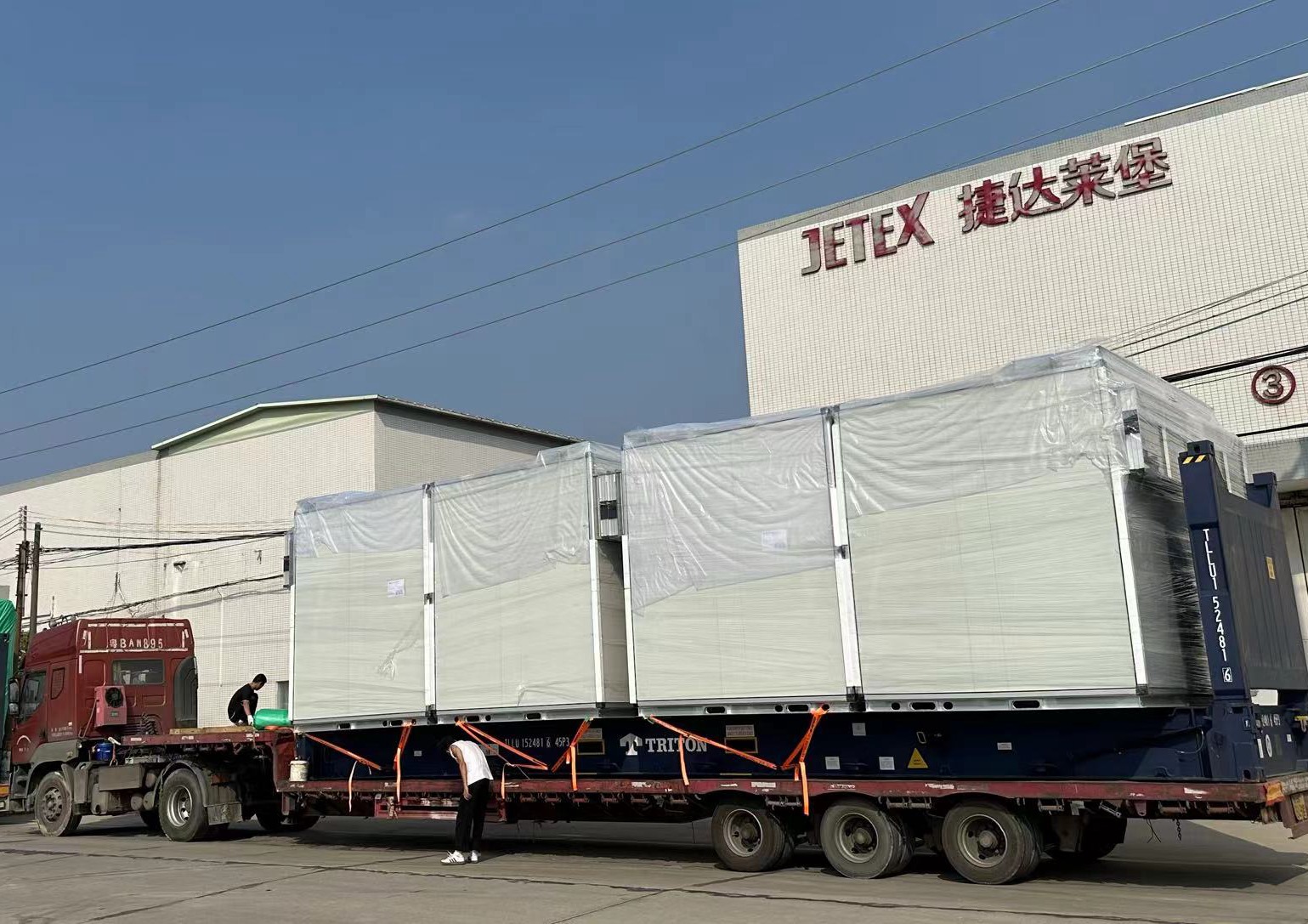

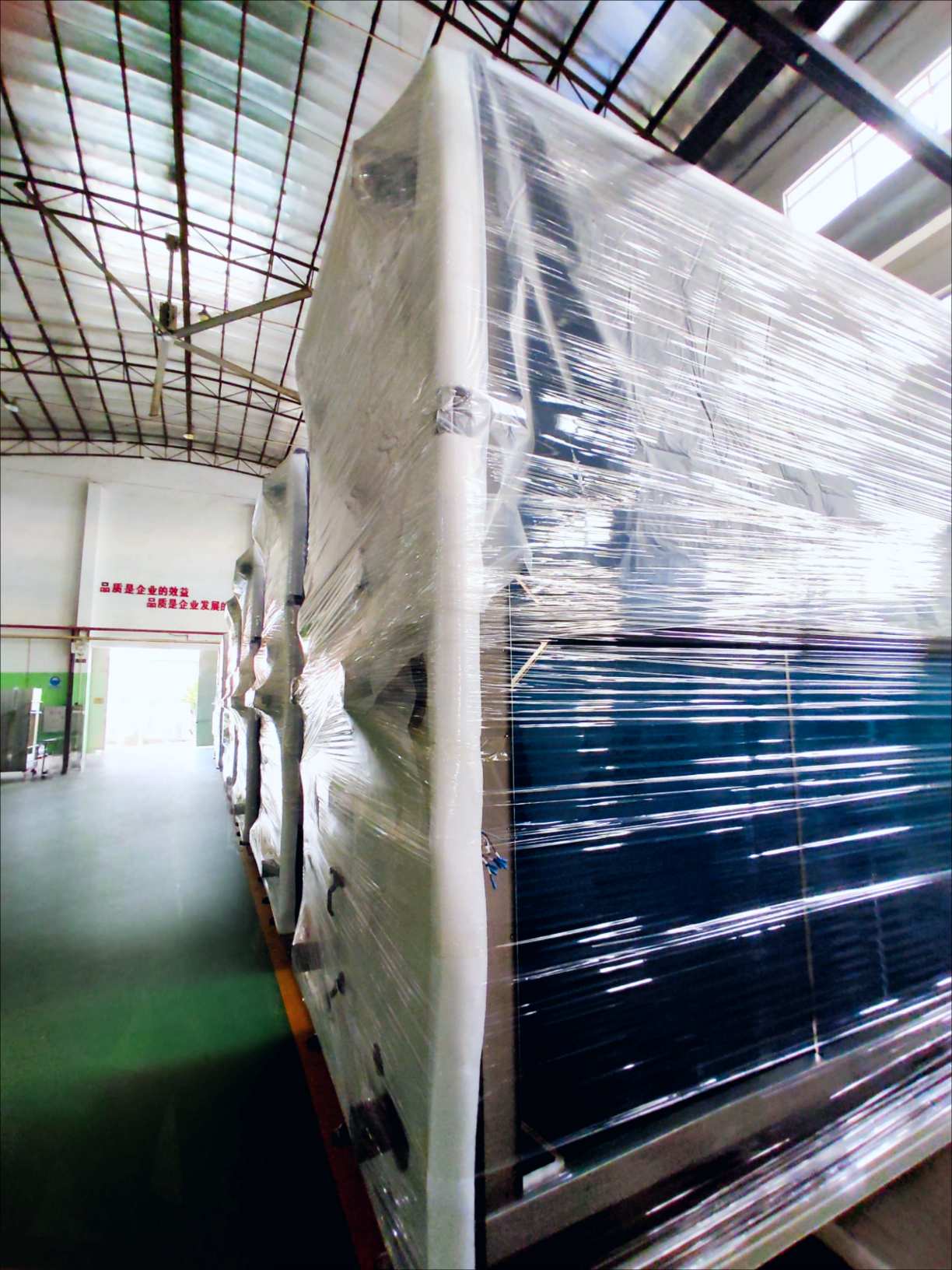

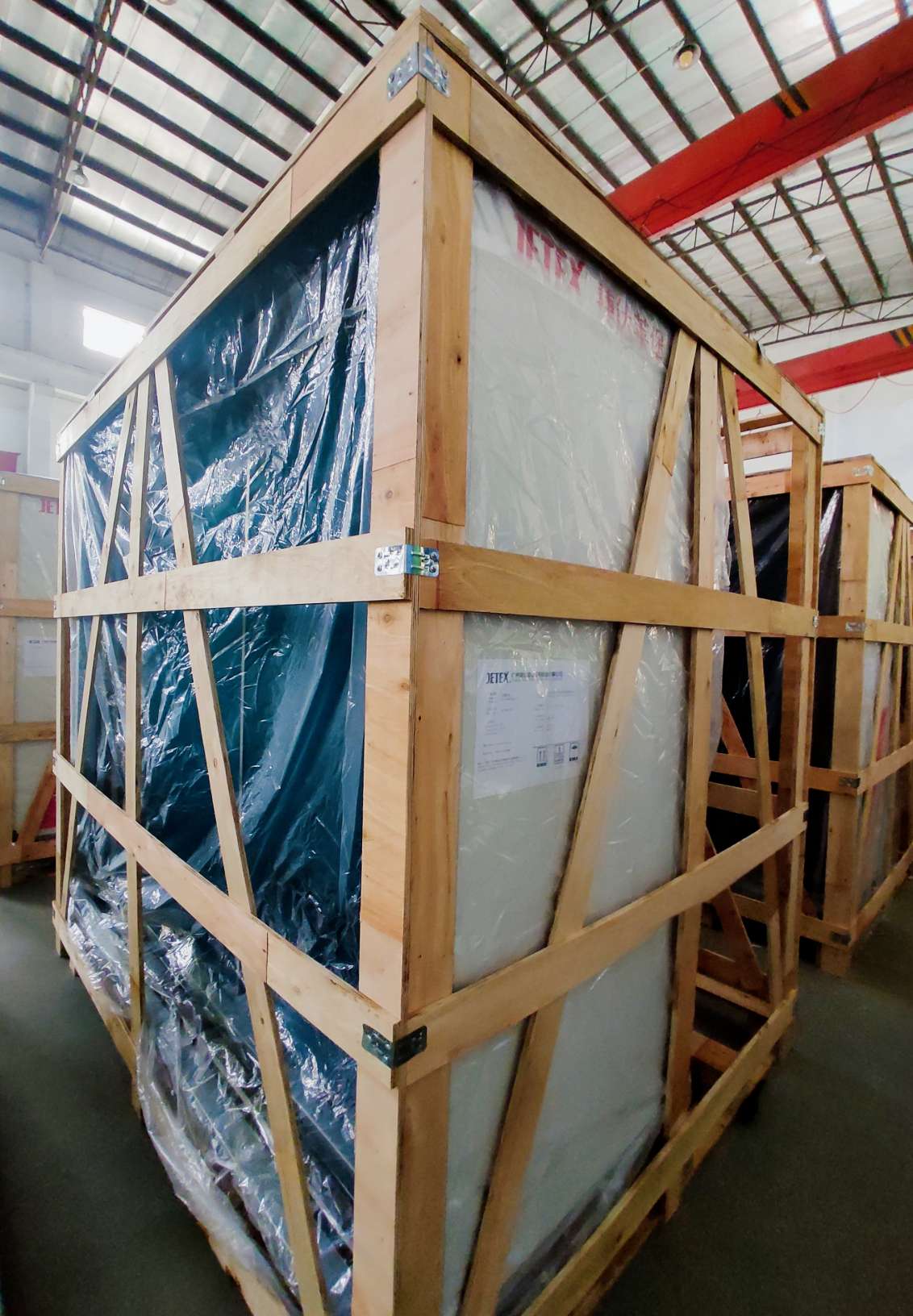

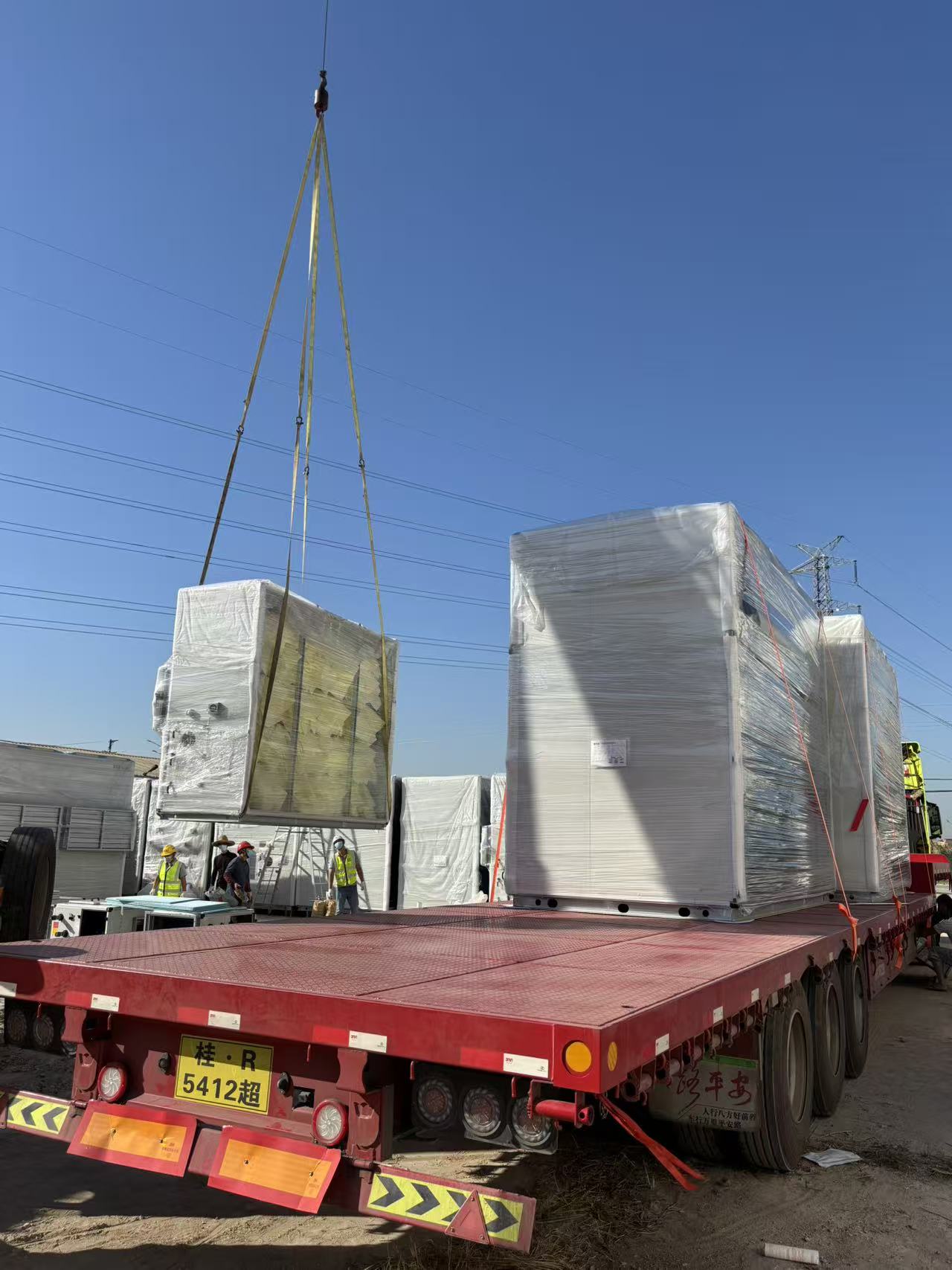

For Shipment: The unit is wrapped with anti-collision foam and film, or securely packed in a robust wooden case to ensure safe transit.
