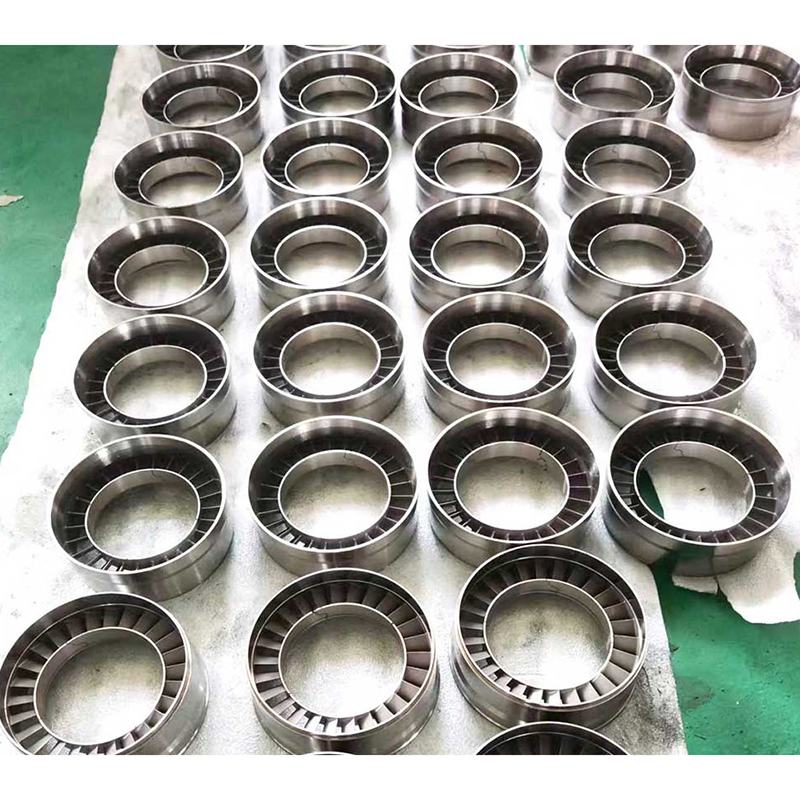

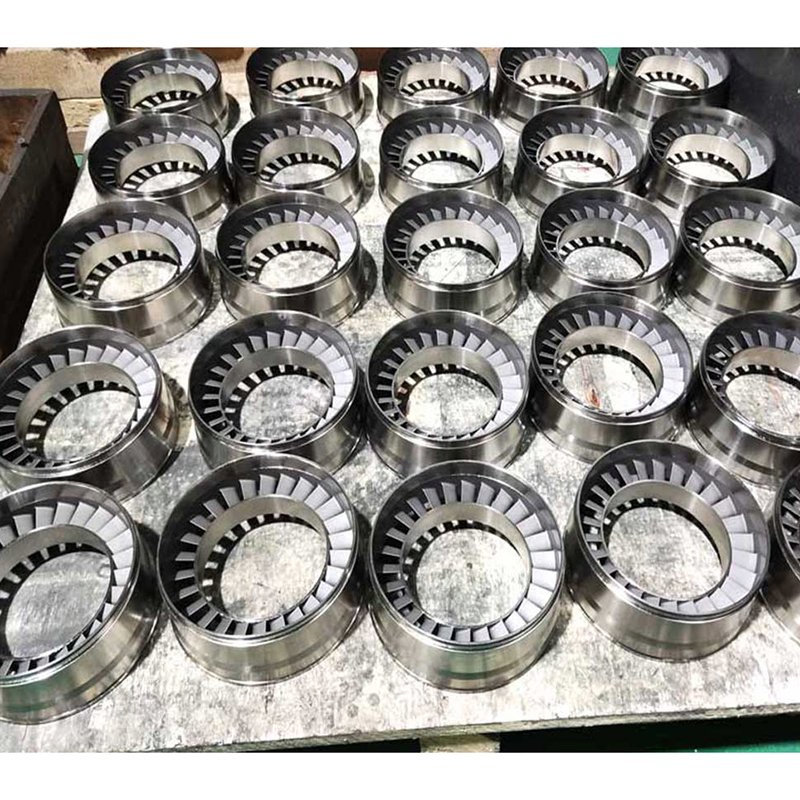

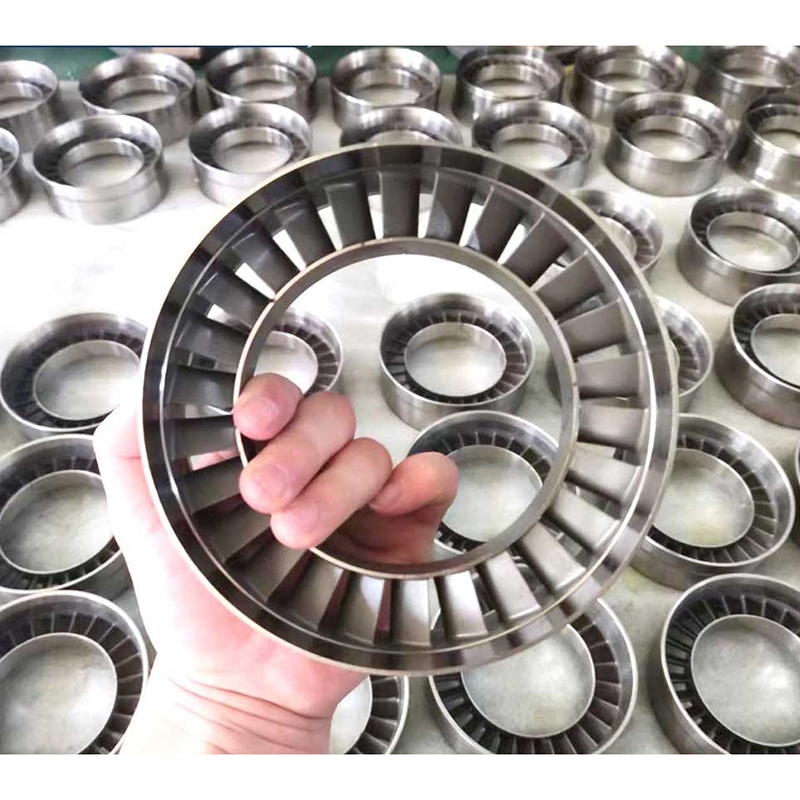

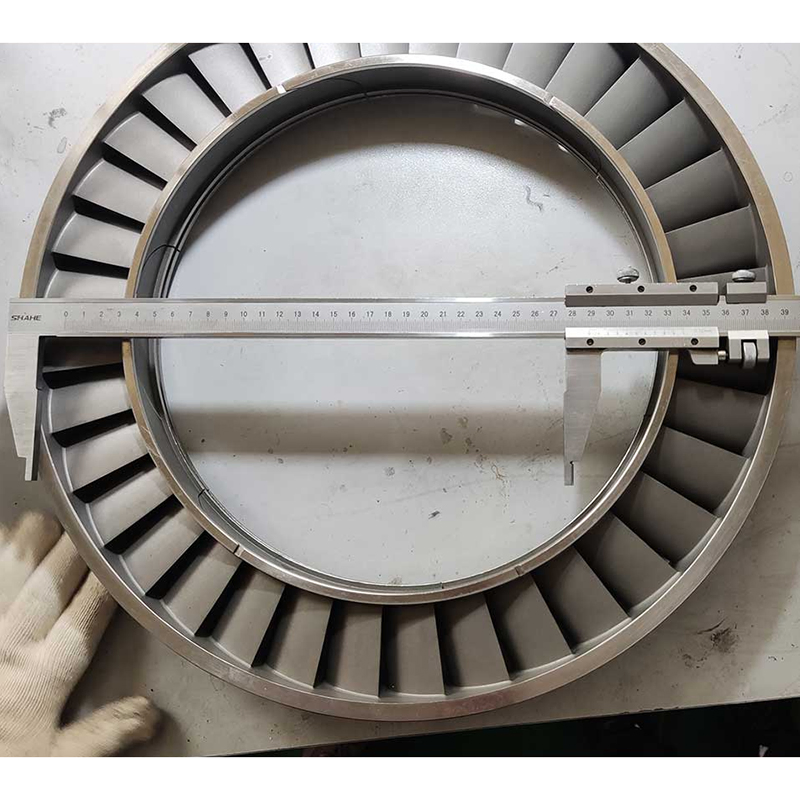

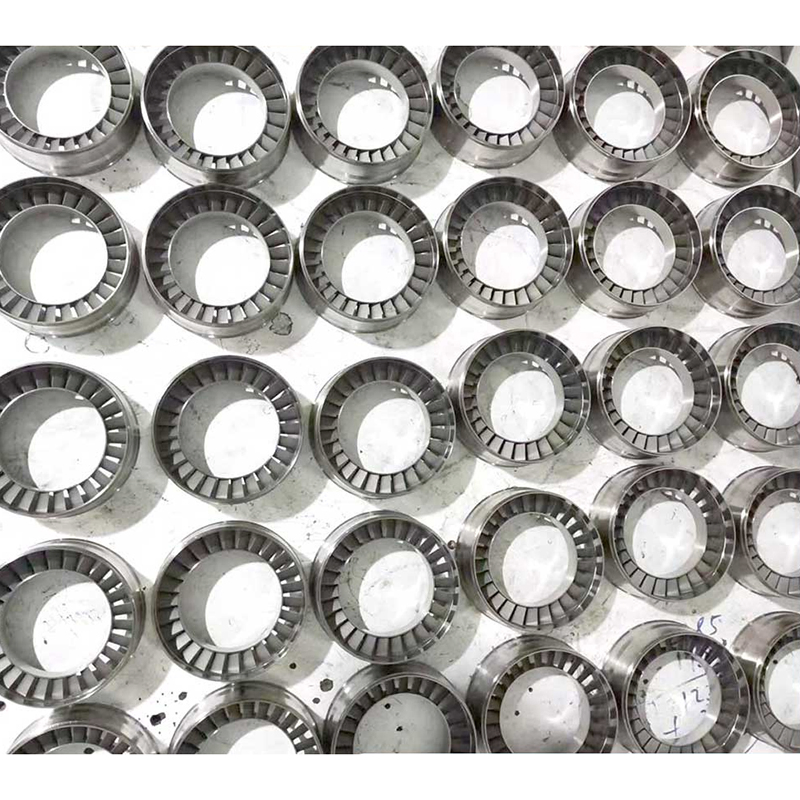

Custom Professional Aerospace Nozzle Ring/Guide Vane Superalloy Material Precision Component for Engines Casting Services

■ Basic Info.

Model NO. Nozzle ring

Condition New

Certification ISO 9001:2015

Standard DIN, ASTM, GOST, GB, JIS, ANSI, BS, Non-Standard Customization

Customized Customized

Material Titanium Alloy/Inconel Alloy/Nickel Alloy/Hastelloy

Application Aviation, Chemical Industry, Electric Power, Medical

Certificate ISO, ABS, BV, CCS, DNV, LR, GL, Mill Certificate

Quality Inspection UT, Chemical Composition, Physical Properties/SGS

Color Anodized (Black, Silver, Blue, Gold, Red, Green etc.)

Surface Treatment Anodizing, Electroplating, Painting, Powder Coating

Logo Printing CNC Engraving, Laser Engraving, Screen-Printing etc.

Drawing Format 2D/(PDF/CAD) 3D(IGES/STEP)

Casting Method Vacuum Aspirated Casting

Process Investment Casting

Molding Technics Gravity Casting

Transport Package Seaworthy Packing/Wooden Box or Client's Requirement

Specification Customized

Trademark OEM & ODM

Origin China

HS Code 8414909090

Production Capacity 500 Ton/Month

■ Product Description

Feature	Specification Details
Product Name	New Condition Inconel625 Hastelloy 718 Turbocharger Jet Engine Turbine Wheel with Nozzle Ring Machinery Engine Parts
Tolerance	CNC Machining ±0.004mm / Casting ±0.1mm
Place of Origin	China
Processing Craft	Sand Casting / Lost Wax Casting / Investment Casting / Vacuum Casting / Forging / CNC Machining etc.
Surface Treatment	A variety of surface treatments and coatings can be produced and customized according to your requirements.
Type	OEM; Customized
Certification	ISO9001:2015 Certified, UL Certification, GE, SGS, TUV, etc.
Packing	Carton/Wooden box
Inspection	1. Foundry in-house: 100% inspection on critical dimension; 100% on appearance. 2. Third Party inspection available upon requirement. 3. Optional X-ray detection 4. Fluorescence detection
Service	Drawing Customization
Mainly Testing Facility	Spectrometer, CMM, Tensile testing machine, Impact tester, Hardness tester, X-Ray, Salt spray test box, Pneumatic detection, UV accelerated weathering tester, dynamic balancing, high-temperature tensile testing, fluorescence test, room temperature mechanical property testing and other testing.
Quality Guarantee	2 Years
Features & Advantage	1. High machining accuracy, the flatness within 0.001mm 2. High finish appearance, smooth surface roughness is Ra0.6 after machining. 3. The machining precision is high and the assembly structure is seamless. 4. Smooth appearance, corrosion resistance. 5. Pass Salt Spray Test with 144 Hours.
Standard	ISO, DIN, AISI, ASTM, BS, JIS, etc. GB/T 14992 \| GJB 5512.1 \| HB 7763 \| HB/Z 140
Payment	L/C, D/A, D/P, T/T, Western Union, Money Gram

■ Surface Coating Technology

Name	Inner Cavity Cooling Channel Coating	External Surface Coating
Nickel Aluminum Diffusion Coating	MTK-NAI	MTK-WAI
Aluminum Silicon Diffusion Coating	MTK-NAISi	MTK-JAISi
Chrome Aluminum Diffusion Coating	MTK-NAICr	MTK-WAICr
Diamond Aluminum Diffusion Coating	MTK-NAICo	MTK-WAICo
Platinum Aluminum Diffusion Coating	-	MTK-WPtAl
Aluminum Diffusion Coating	MTK-NAITi	MTK-WAITi
Q Salt Electroplating Platinum	-	MTK-WPt
Compressor Inorganic Phosphate Coating	-	MTK-WAI
MCrAIY Coating Technology	-	MTK-RZ
TBC	-	MTK-TBC
CVD Vapor Phase Aluminizing	-	-
Chromated Aluminum Coating Technology	-	-

■ Main Material

Alloy Type	Alloy	US Standard Equivalent
Equiaxed Crystal Blades	K438	Inconel 738
	K438G	K38G
	K435	-
	K488	-
	K418	Inconel 713C
	FSX-414	-
Oriented Crystal Blades	DZ38G	-
	DZ411	-
	DZ466	-
Single Crystal Blades	DD8	-
	DD83	-
	DD5	-

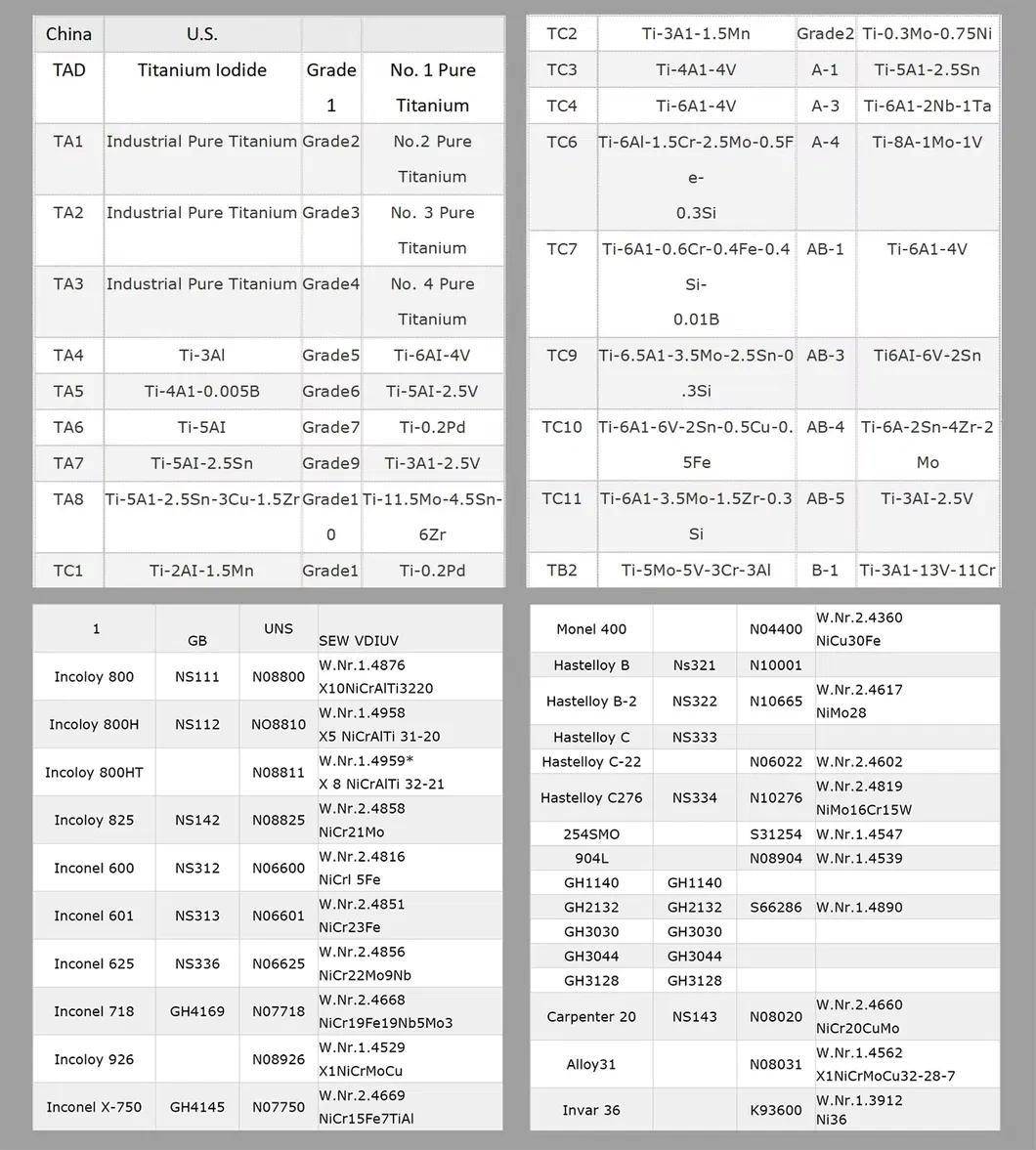

Aerospace Nozzle Ring Superalloy Material Components

■ Detailed Photos

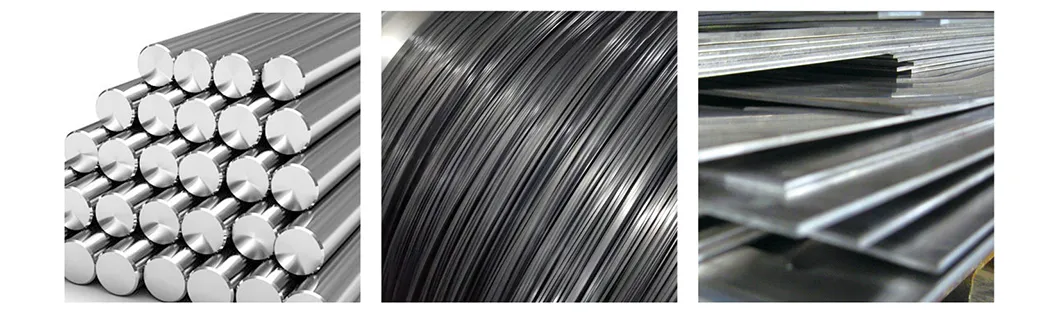

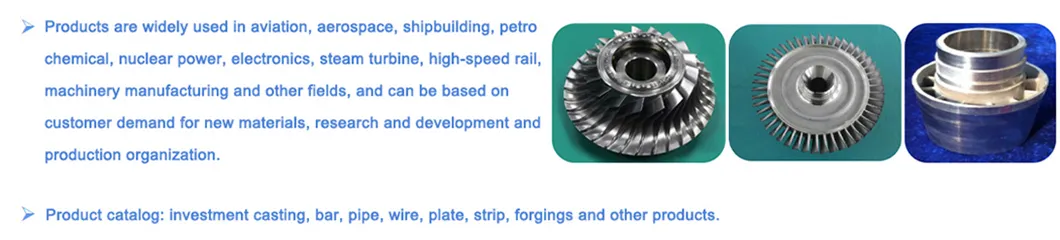

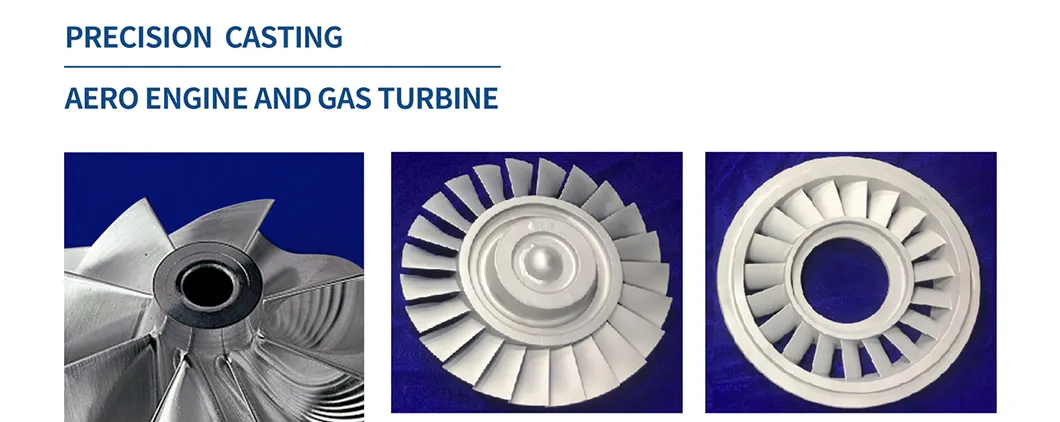

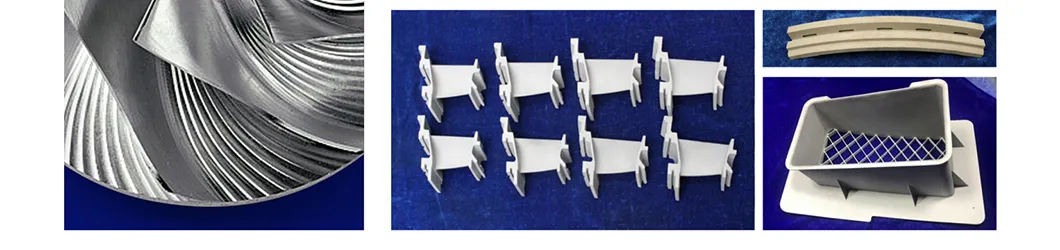

Precision Machined Superalloy Components

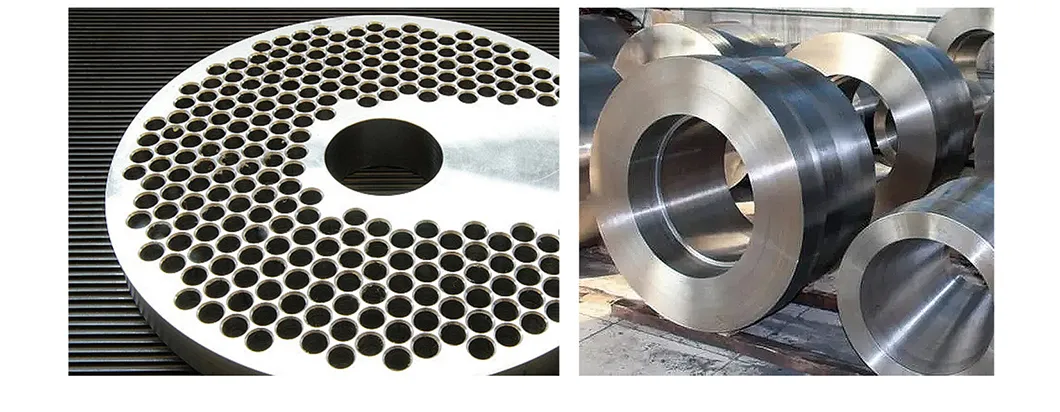

Superalloy Turbine Engine Components Processed

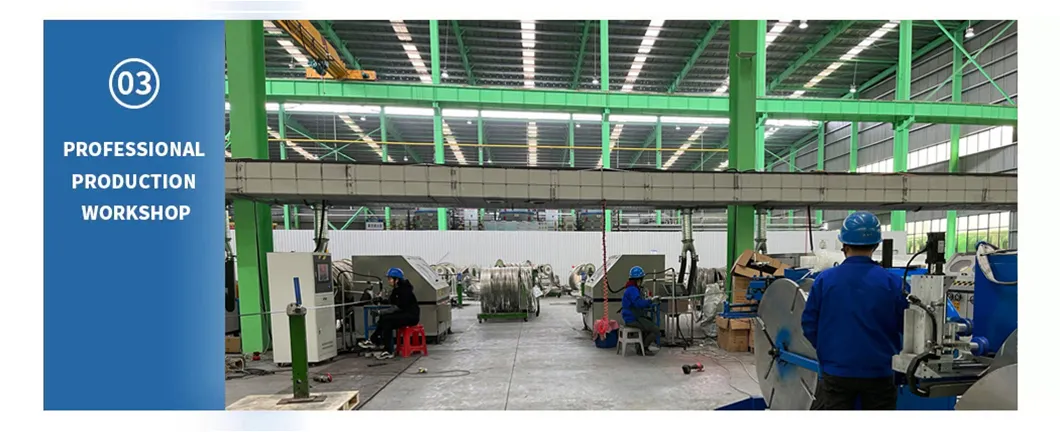

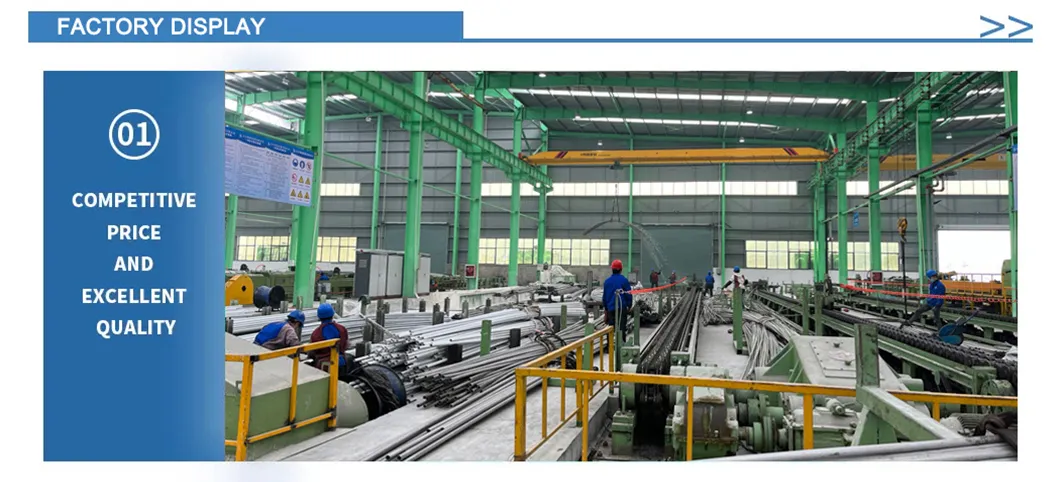

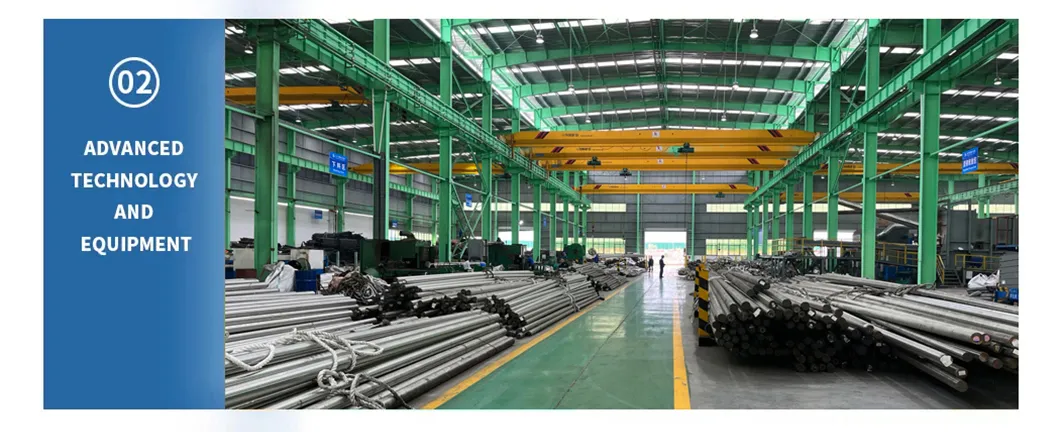

■ Manufacturing & Infrastructure Capabilities

Tensile Testing Machine for Physical Properties

Finished Component Quality Standard Certification

■ Application Fields

Chemical Processing High-temperature System

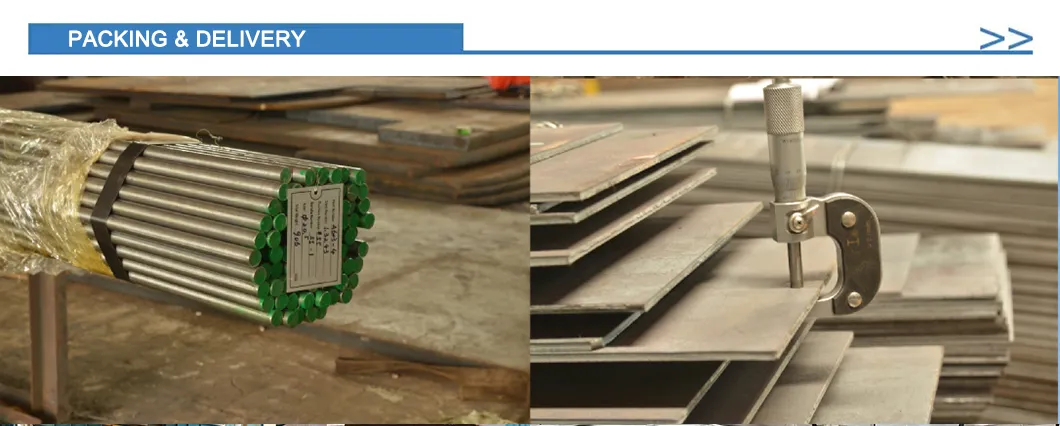

■ Packaging Detail

Frequently Asked Questions (FAQ)

Q What superalloy materials are available for the custom nozzle rings and turbine wheels?

We offer a wide selection of premium superalloys, including Inconel 625, Inconel 718, Inconel 738, Hastelloy, Titanium Alloys, and proprietary Equiaxed, Oriented, and Single Crystal alloys specifically formulated for extreme heat and stress environments.

Q What are your standard manufacturing tolerances for CNC and cast components?

Our high-precision manufacturing processes achieve tolerances within ±0.004mm for specialized CNC machining processes, and up to ±0.1mm for raw casting procedures, guaranteeing seamless assembly into turbines and engine blocks.

Q What advanced surface coating technologies do you support?

We specialize in multiple advanced surface enhancements, including Nickel Aluminum Diffusion (MTK-NAI/WAI), Aluminum Silicon Diffusion, Chrome Aluminum Diffusion, Platinum Aluminum Diffusion, MCrAlY Coatings, and Thermal Barrier Coatings (TBC) for peak thermodynamic performance.

Q How is quality inspection handled to ensure high-performance reliability?

We perform 100% in-house dimensional and visual quality checks. Critical component safety is verified using advanced non-destructive and physical tests, including CMM, X-Ray flaw detection, fluorescence inspection, high-temperature tensile testing, and 144-hour salt spray testing.

Q Do you support custom drawing formats and custom casting techniques?

Yes, we accept standard 2D files (PDF/CAD) and 3D files (IGES/STEP) for custom mold creation. Our casting methodologies support Lost Wax Casting, Vacuum Aspirated Casting, Investment Casting, and Gravity Casting techniques tailored to complex geometric profiles.
