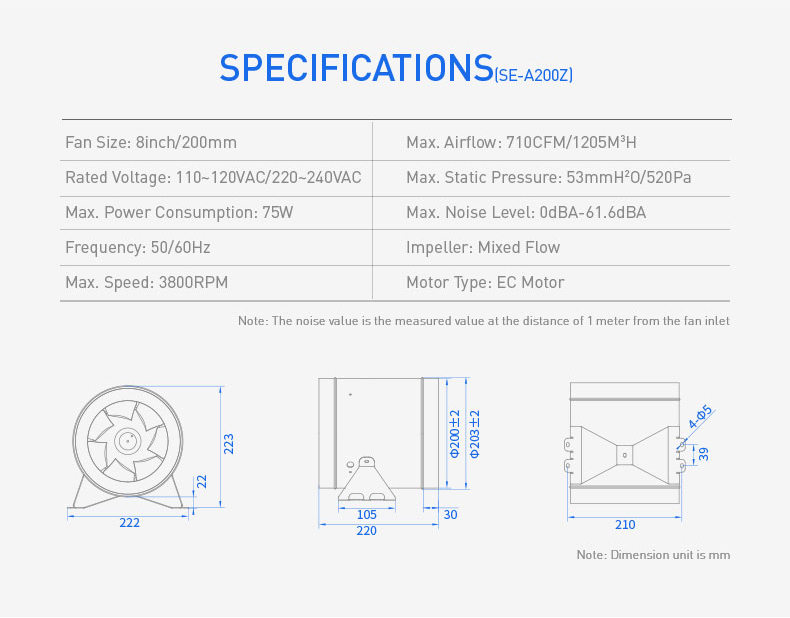

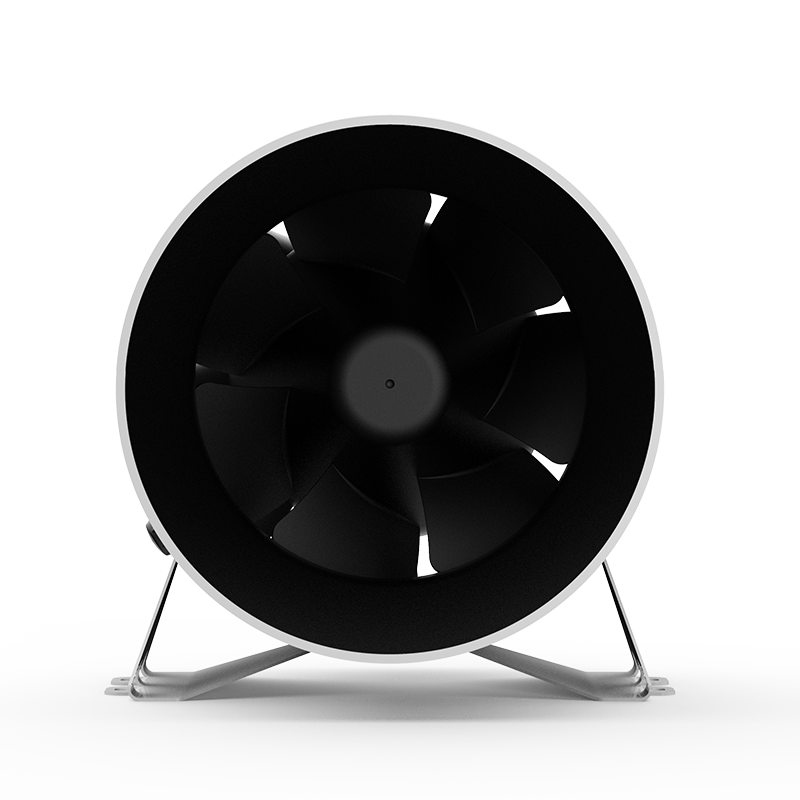

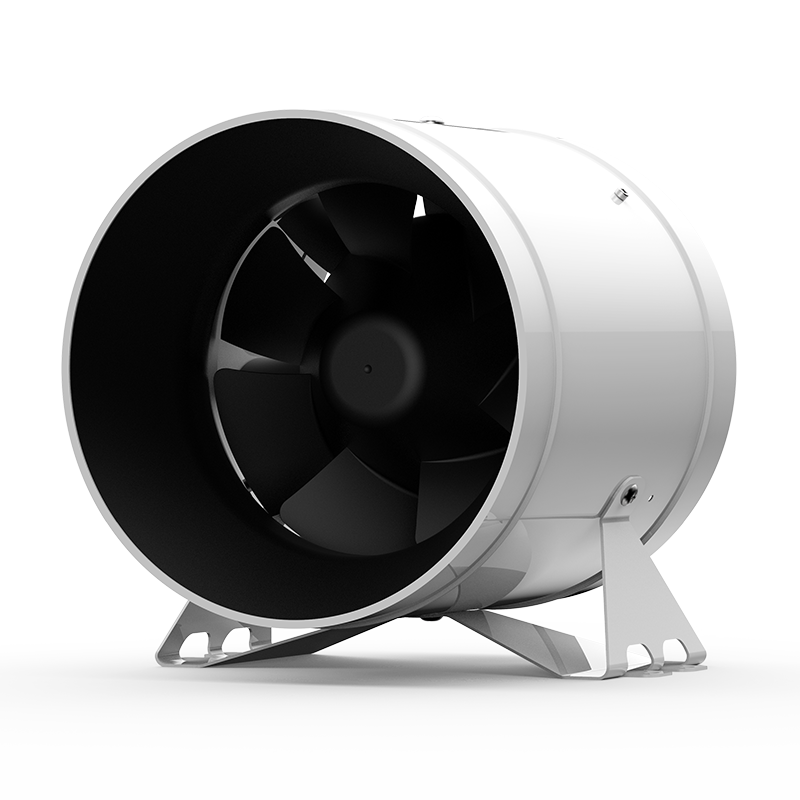

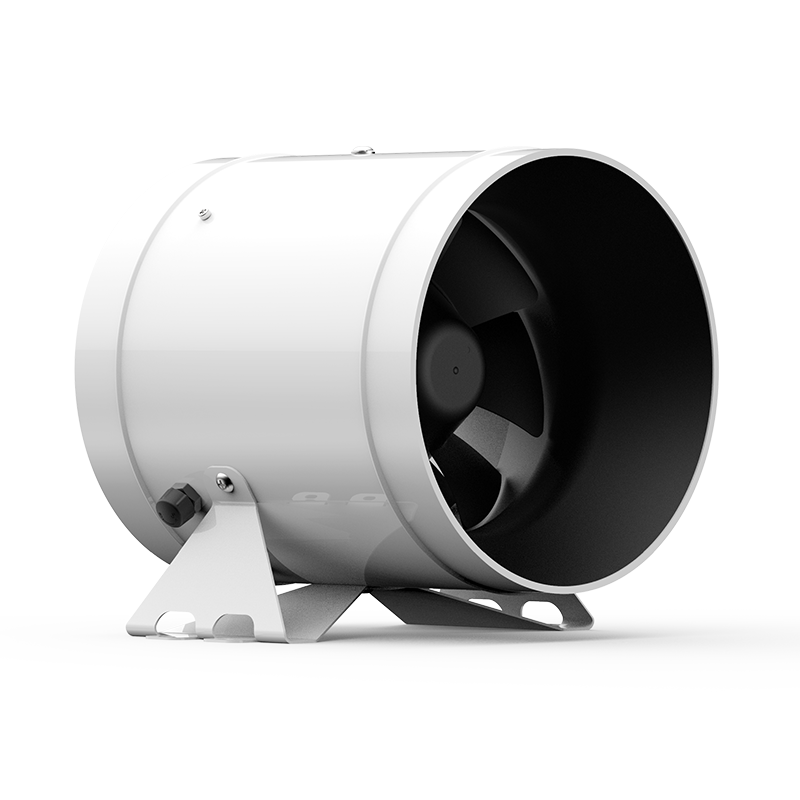

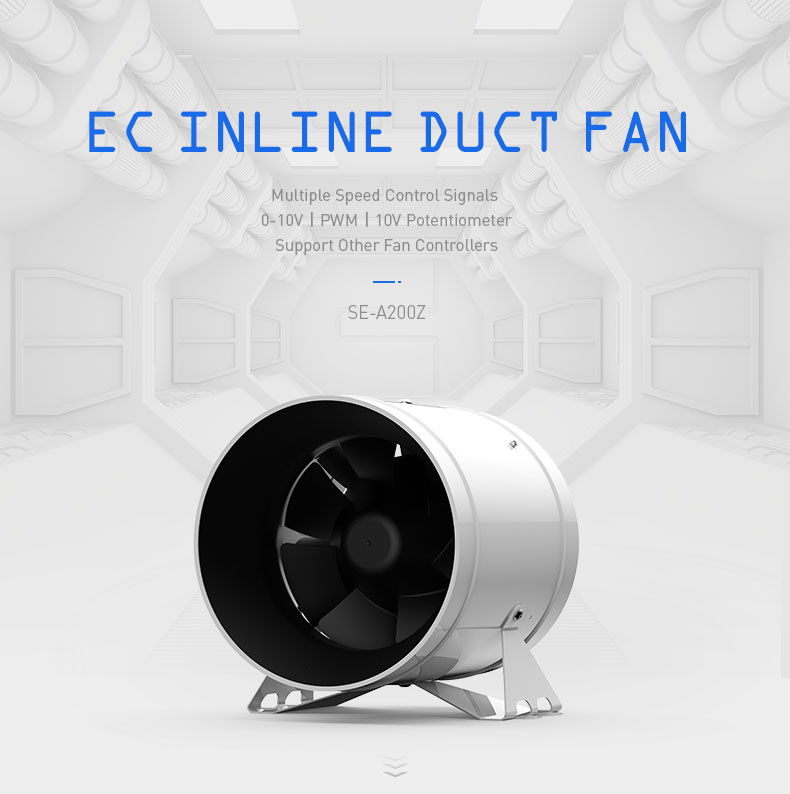

| Model | SE-A150Z | SE-A200Z | SE-A250Z | SE-A315Z |
|---|---|---|---|---|
| Size | 6 inch / 150mm | 8 inch / 200mm | 10 inch / 250mm | 12 inch / 315mm |
| Rated Voltage | 110V/220V | 110V/220V | 110V/220V | 110V/220V |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Max.Power.C | 40W | 75W | 150W | 260W/320W |
| Max.Speed | 5000RPM | 3800RPM | 3200RPM | 2800RPM/3000RPM |
| Max.Airflow | 350CFM / 594M³H | 710CFM / 1205M³H | 1065CFM / 1808M³H | 1639CFM/2787M³H 1757CFM/2987M³H |

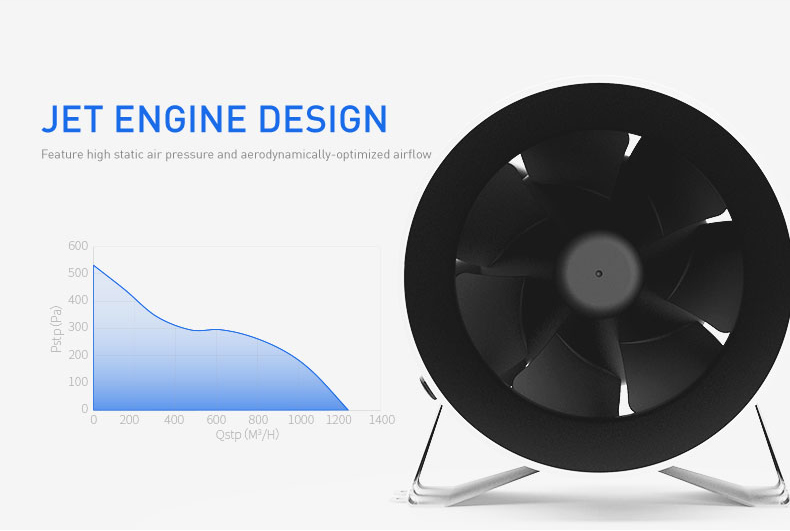

| Pressure | 51mmH²O / 500Pa | 53mmH²O / 520Pa | 52mmH² / 510Pa | 61mmH²O/598Pa 69mmH²O/677Pa |

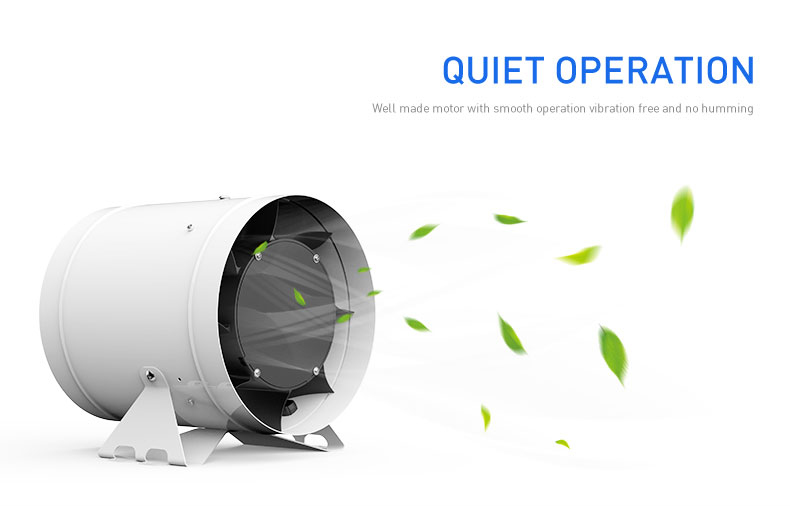

| Noise Level | 60dBA | 61.6dBA | 65dBA | 76dBA/78dBA |

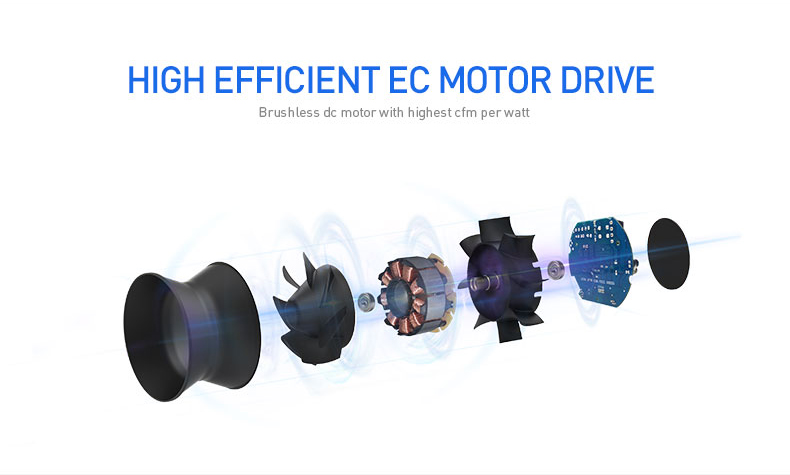

| Motor | EC Motor | EC Motor | EC Motor | EC Motor |
| IP Rating | IPX4 | IPX4 | IPX4 | IPX4 |

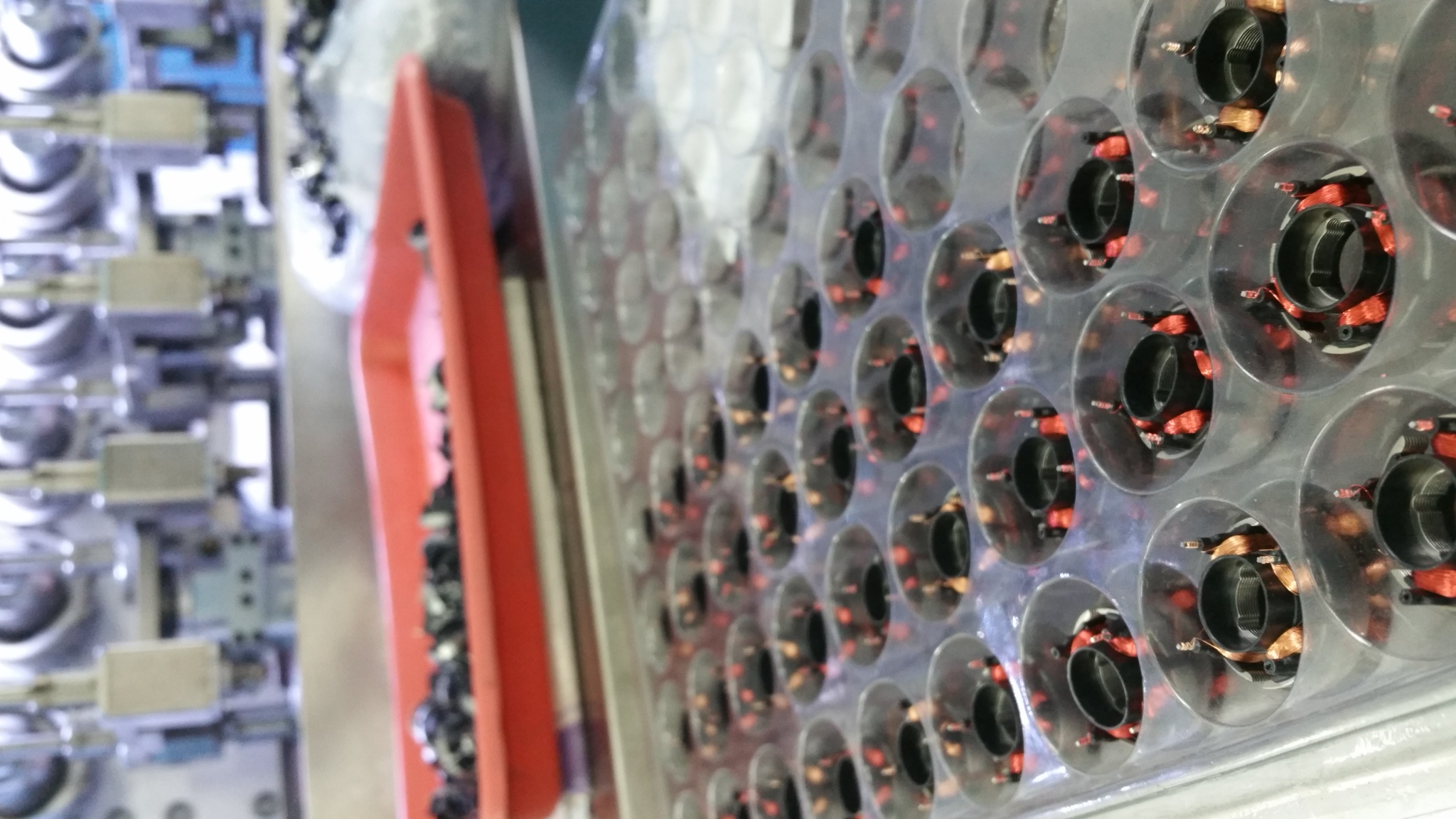

We are a specialized manufacturer and equipment supplier with more than 10 years of experience in production and sales of cooling fans, EC inline fans, DC fans, carbon filters, and fan accessories. We always adhere to a strict and rigorous style of work, designing and producing one-stop services tailored to meet the special needs of our customers.

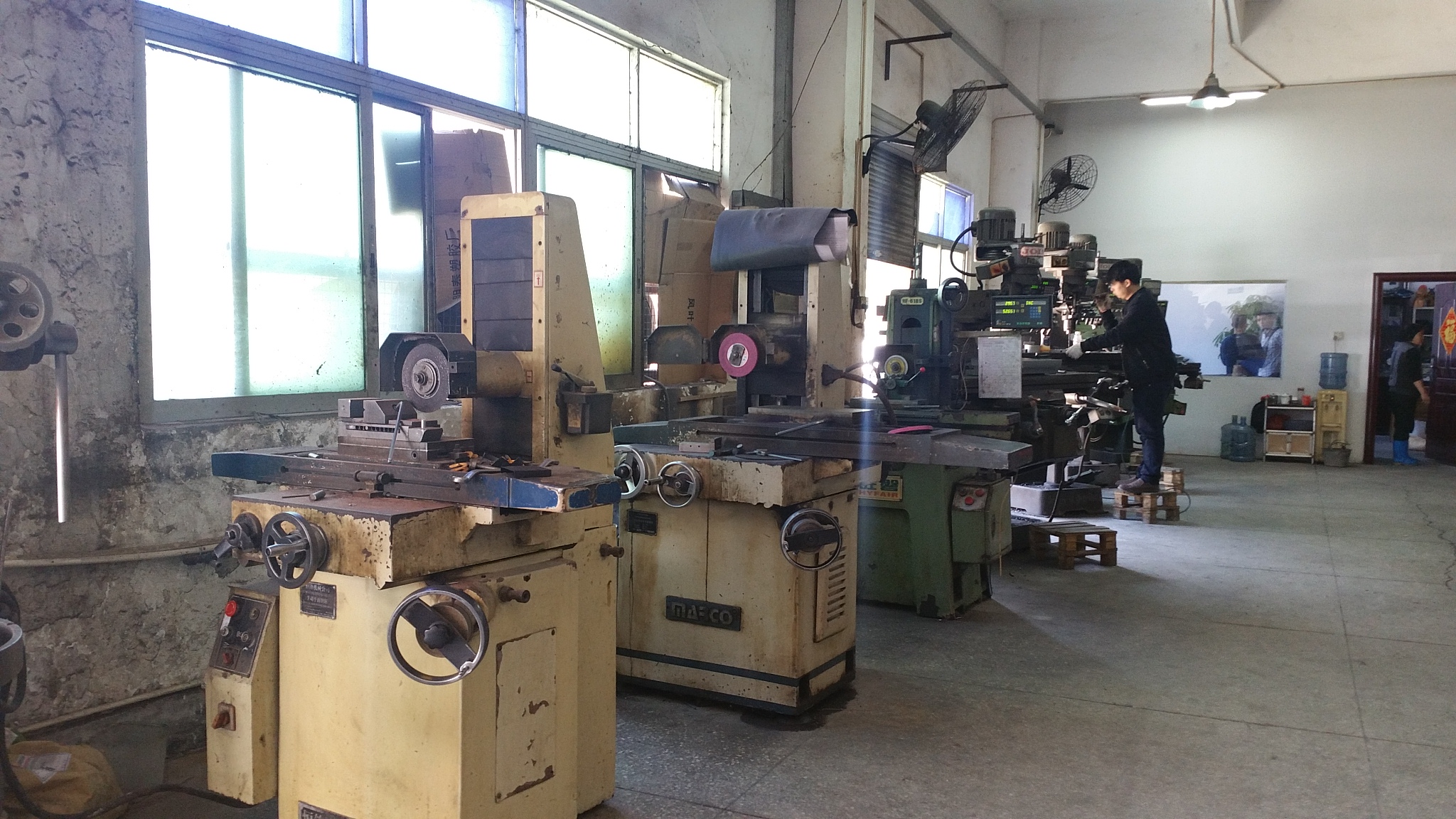

We insist on producing first-class products by relying on advanced technology, sophisticated tooling, and strict quality control. Our products are engineered for high efficiency, low noise, and smooth operation, earning the trust of users through excellent quality and a solid reputation.
